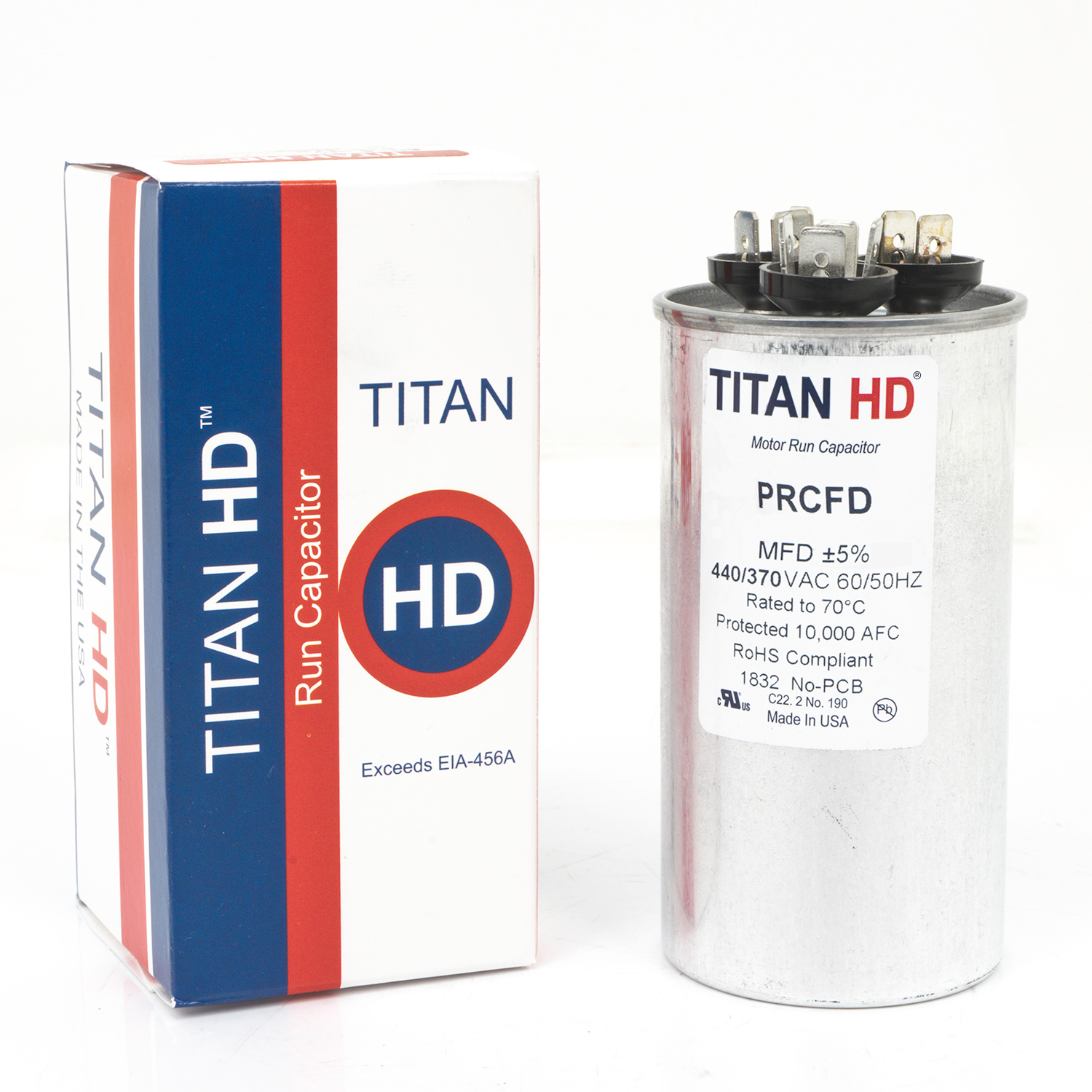

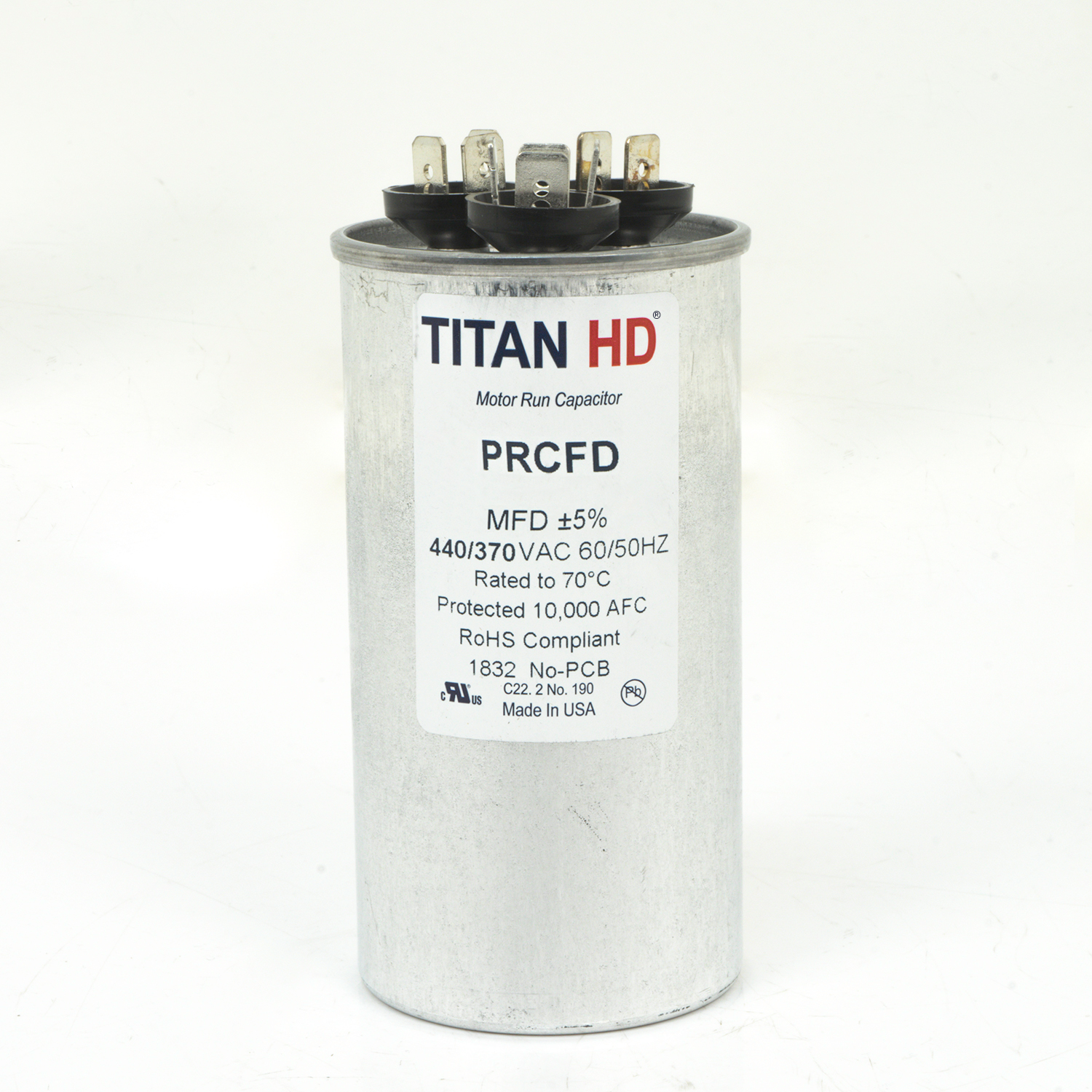

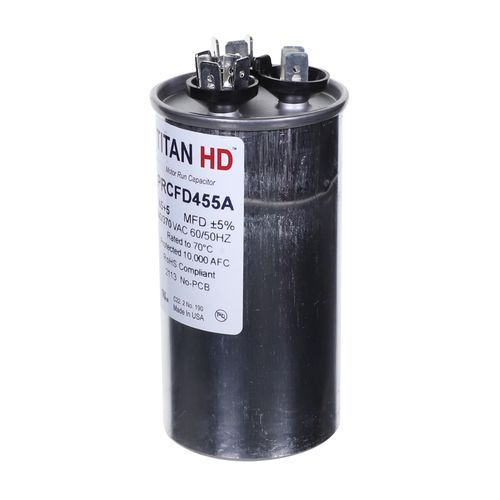

Packard Titan HD PRCFD455A Dual Motor Run Capacitor, 45/5 MFD, 440/370 VAC, Round, 2 Number Of Sections, 4-11/32" Overall Height, 2" Diameter, Aluminum (Case), Steel (Cover) Housing Material

Packard has received the call to create a USA-made capacitor to provide contractors with confidence on the job. Our answer is Titan HDâ„¢. With a substantial 60,000 hours of operating life, it is just as hardworking as those who made them.

Packard Dual Motor Run Capacitor, Model: Titan HD, 45/5 MFD, 440/370 VAC, Round, 2 Number Of Sections, 4-11/32" Overall Height, 2" Diameter, Aluminum (Case), Steel (Cover) Housing Material, Silver

• Dual run capacitor rated at 45 + 5 MFD with a +/- 5% tolerance.
• Rated for 440/370 VAC applications at 50/60 Hz.
• Offers a long operational life of 60,000 hours.
• Features metalized polypropylene film technology for self-restoration.
• Includes a UL-approved pressure sensitive interrupter for safe end-of-life removal from the circuit.
• Utilizes patented, environmentally-friendly, non-PCB soybean-based oil to prevent corrosion and improve heat transfer.

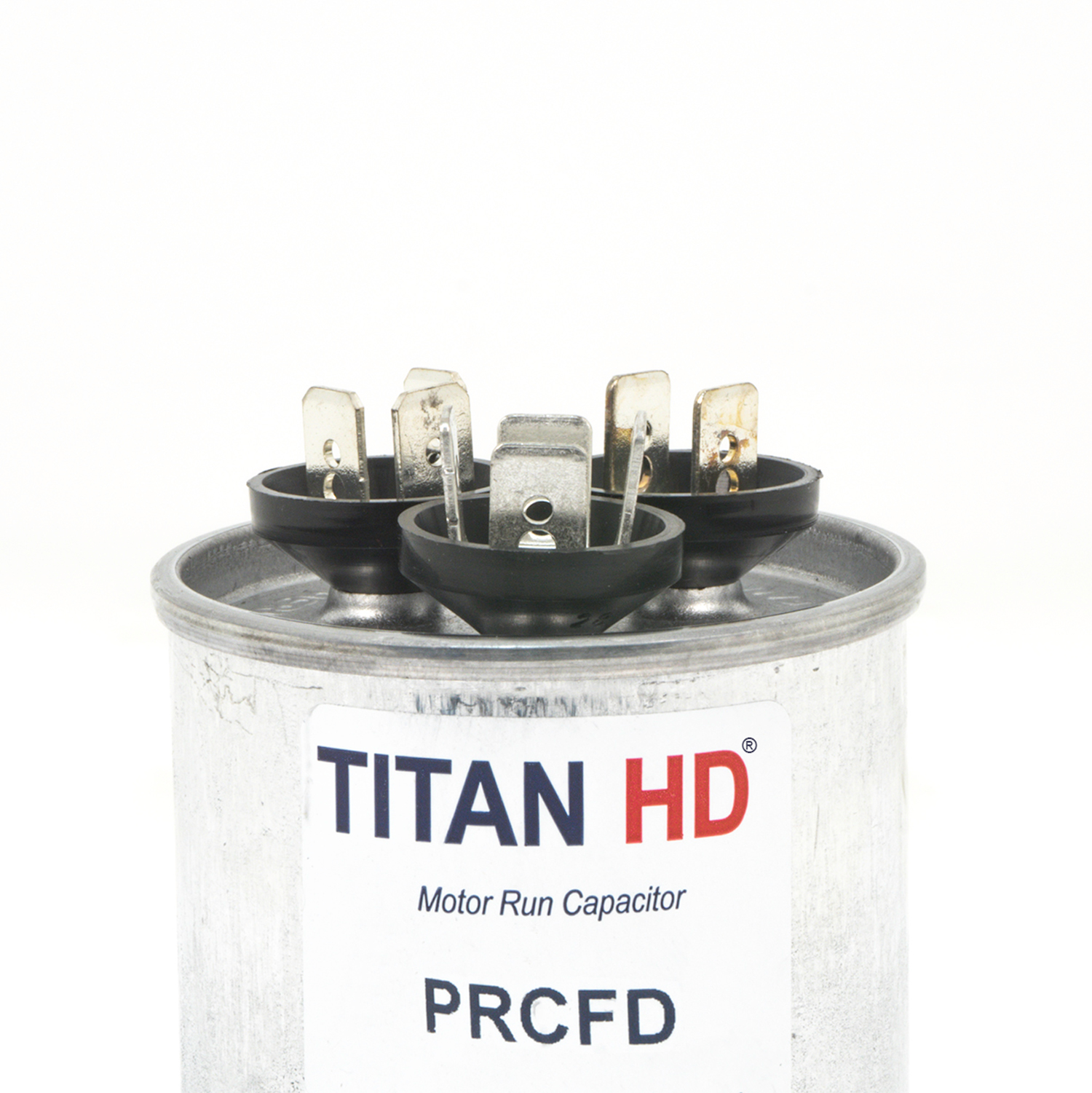

• Constructed with an aluminum case and standard 1/4" quick-connect terminals.
• Meets EIA-456-A performance standards and is UL/cUL listed and RoHS compliant.
• Made in the USA and backed by a 10-year warranty.

• Catalog https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/catalog-4210-3874.pdf
• Dimensions Diagram https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/packard-can-size-dimensions-chart-4210-3875.pdf
