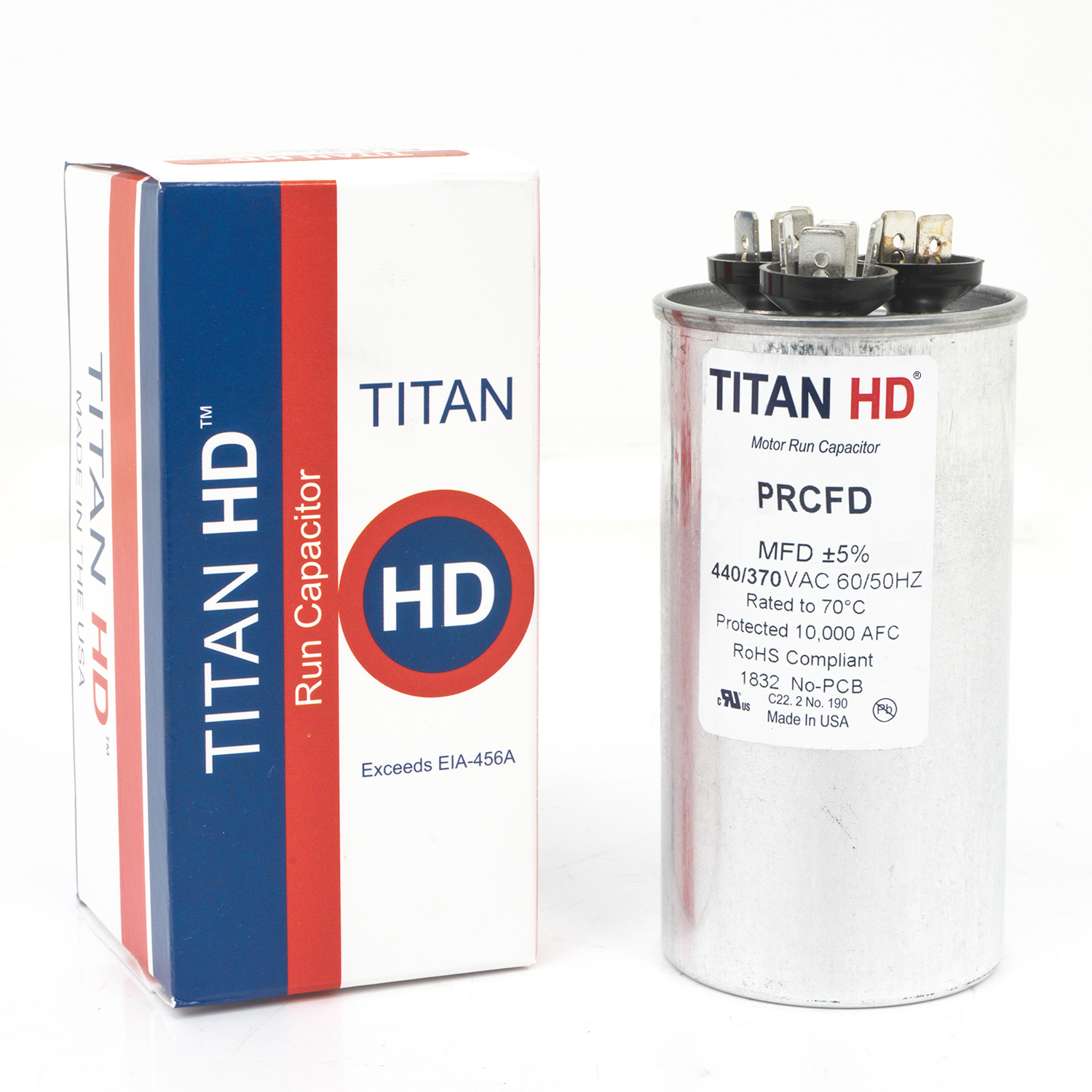

DiversiTech Titan HD PRCFD4575A Dual Motor Run Capacitor, 45/7.5 MFD, 440/370 VAC, Round, 2 Number Of Sections, 4-1/2" Overall Height, 2" Diameter, Aluminum (Case), Steel (Cover) Housing Material

Packard has received the call to create a USA-made capacitor to provide contractors with confidence on the job. Our answer is Titan HDâ„¢. With a substantial 60,000 hours of operating life, it is just as hardworking as those who made them.

DiversiTech Dual Motor Run Capacitor, Model: Titan HD, 45/7.5 MFD, 440/370 VAC, Round, 2 Number Of Sections, 4-1/2" Overall Height, 2" Diameter, Aluminum (Case), Steel (Cover) Housing Material, Silver

• Provides a long operational life rated up to 60,000 hours.
• Features metalized polypropylene film technology for self-restoration in the event of a breakdown.
• Includes a sophisticated UL-approved pressure sensitive interrupter for safe end-of-life circuit removal.
• Utilizes patented, environmentally-friendly soybean-based oil to prevent corrosion and aid heat transfer.

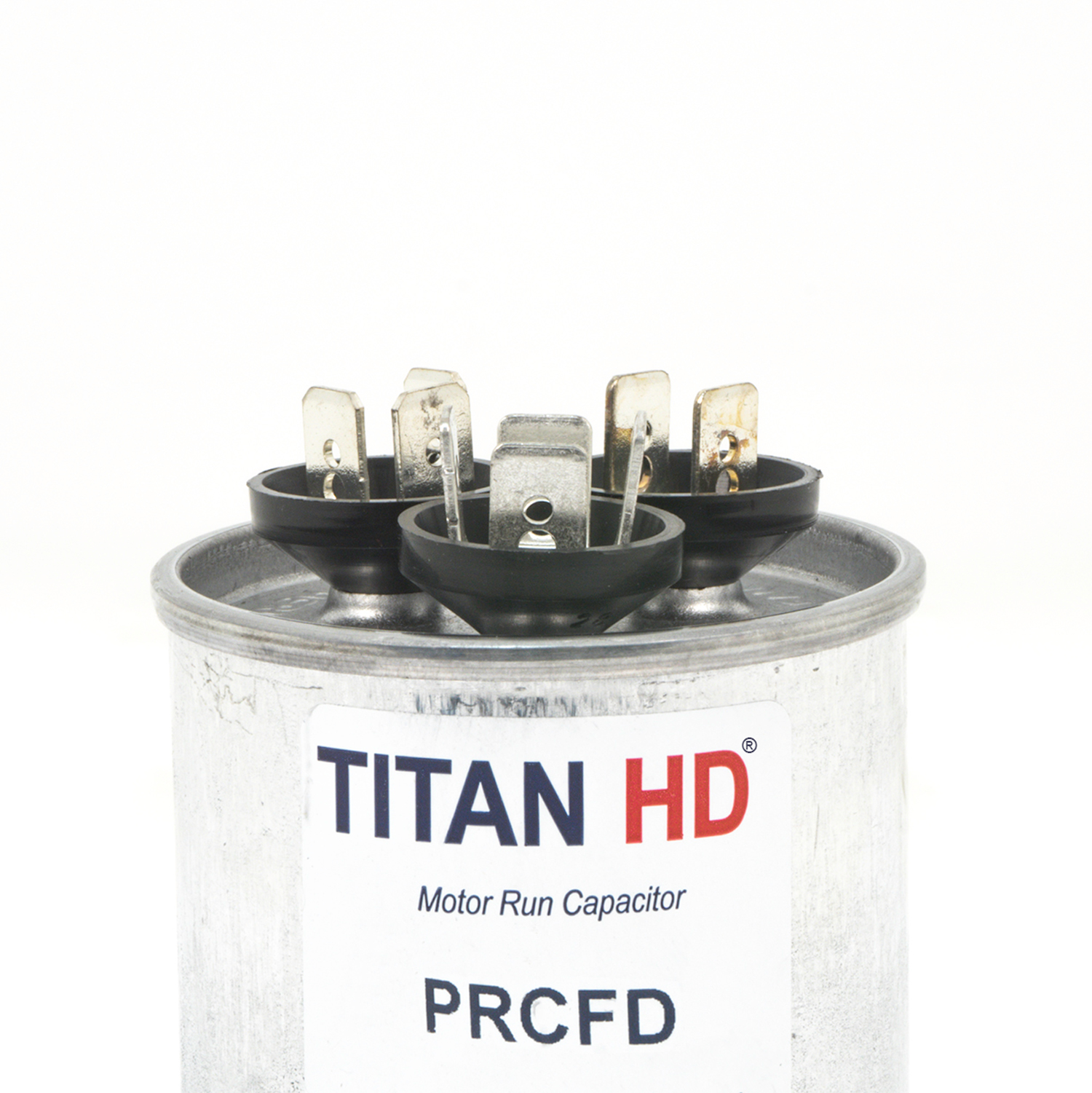

• Constructed with a durable aluminum can and standard blade terminals.
• Meets rigorous EIA-456-A and UL 810 industry standards for performance and safety.
• Made in the USA.
• Backed by a 10-year warranty.

• Catalog https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/hvac-r-product-catalog-3613-3550.pdf
• Dimensions Diagram https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/packard-can-size-dimensions-chart-3613-3875.pdf
