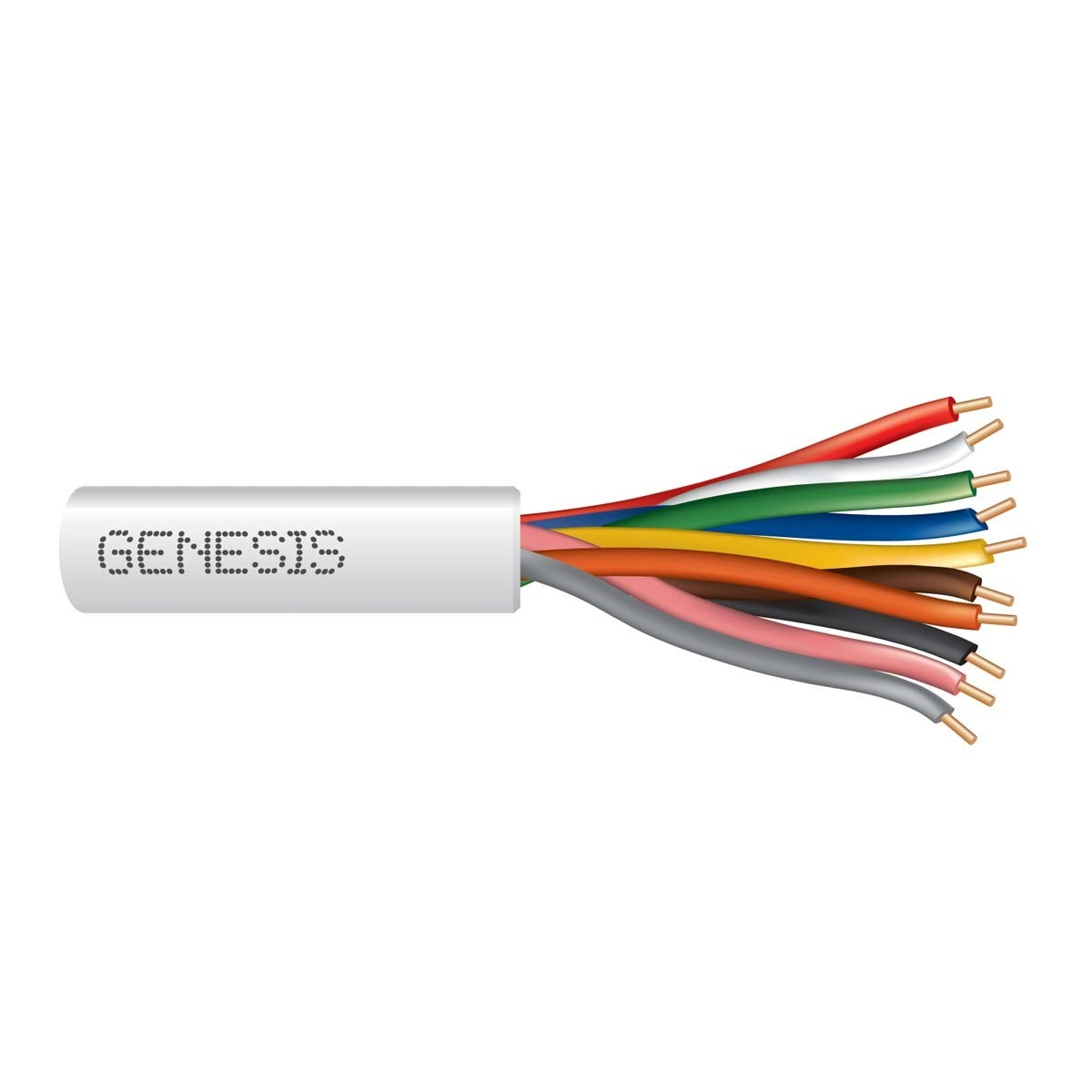

Resideo Genesis 47130307 Thermostat Cable, 18 AWG, 5 Conductors, 250' Length, Solid, Bare Copper, 300 V (Max), -4-140 °F
Resideo Genesis 47130307 Thermostat Cable, 18 AWG, 5 Conductors, 250' Length, Solid, Bare Copper, 300 V (Max), -4-140 °F
| Capacitance | : | 22.8 pF/ft |
| Conductor Material | : | Bare Copper |
| Conductor Size | : | 18 AWG |
| Conductor Type | : | Solid |
| End Type | : | Bare Wire |
| Impedance | : | 100 Ohms |
| Insulation Color | : | Red, White, Green, Blue, Yellow |
| Insulation Material | : | Polypropylene |
| Insulation Thickness | : | 0.006 " |
| Jacket Color | : | Brown |
| Jacket Material | : | PVC |
| Jacket Thickness | : | 0.015 " |
| Lay Length | : | 3-1/2 " |
| Length | : | 250 ' |
| Number of Conductors | : | 5 |
| Outside Diameter | : | 0.172 " |
| Package Type | : | Reel |
| Resistance | : | 6.5 Ohms (Per 1000 Ft @ 20°C) |
| Series | : | Genesis |
| Solid/Stranded | : | Solid |
| Temperature Rating | : | -4-140 °F |
| Voltage Rating | : | 300 V (Max) |
This Genesis thermostat cable is designed for wiring thermostat controls, HVAC equipment, doorbells, and other low-voltage circuits. It features five solid 18 AWG bare copper conductors with polypropylene insulation and a durable brown PVC jacket.Packaged in a 250-foot reel for convenience, this CL2-rated cable is suitable for general-purpose, power-limited circuits (excluding risers and plenums) and is sunlight resistant. It includes features like sequential footage markings and a braided ripcord for easier installation.
Resideo Thermostat Cable, Model: Genesis, 18 AWG, 5 Conductors, 250' Length, Solid, Bare Copper, 300 V (Max), -4-140 °F, Polypropylene Insulation, PVC Jacket, 0.015" (Nominal) Jacket Thickness, 0.006" (Nominal) Insulation Thickness, Bare Wire, Brown, Red, White, Green, Blue, Yellow Insulation Color, 0.172" (Nominal) Outside Diameter, 3-1/2" (Nominal) Lay Length, Reel, 6.5 Ohms (Per 1000 Ft @ 20°C), 100 Ohms (Nominal), 22.8 Pf/Ft
- Features five 18 AWG solid bare copper conductors for reliable signal transmission.
- Durable brown PVC jacket provides protection and is sunlight resistant.
- Polypropylene insulation ensures proper signal isolation between conductors.
- CL2 rated for use in general-purpose, low-voltage thermostat wiring applications.
- Rated for operating temperatures from -4°F to 140°F (-20°C to 60°C).
- Comes in a convenient 250 ft reel package.
- Includes a ripcord for easier jacket stripping during installation.
- Meets UL Standard 13 and NEC Article 725 requirements.
