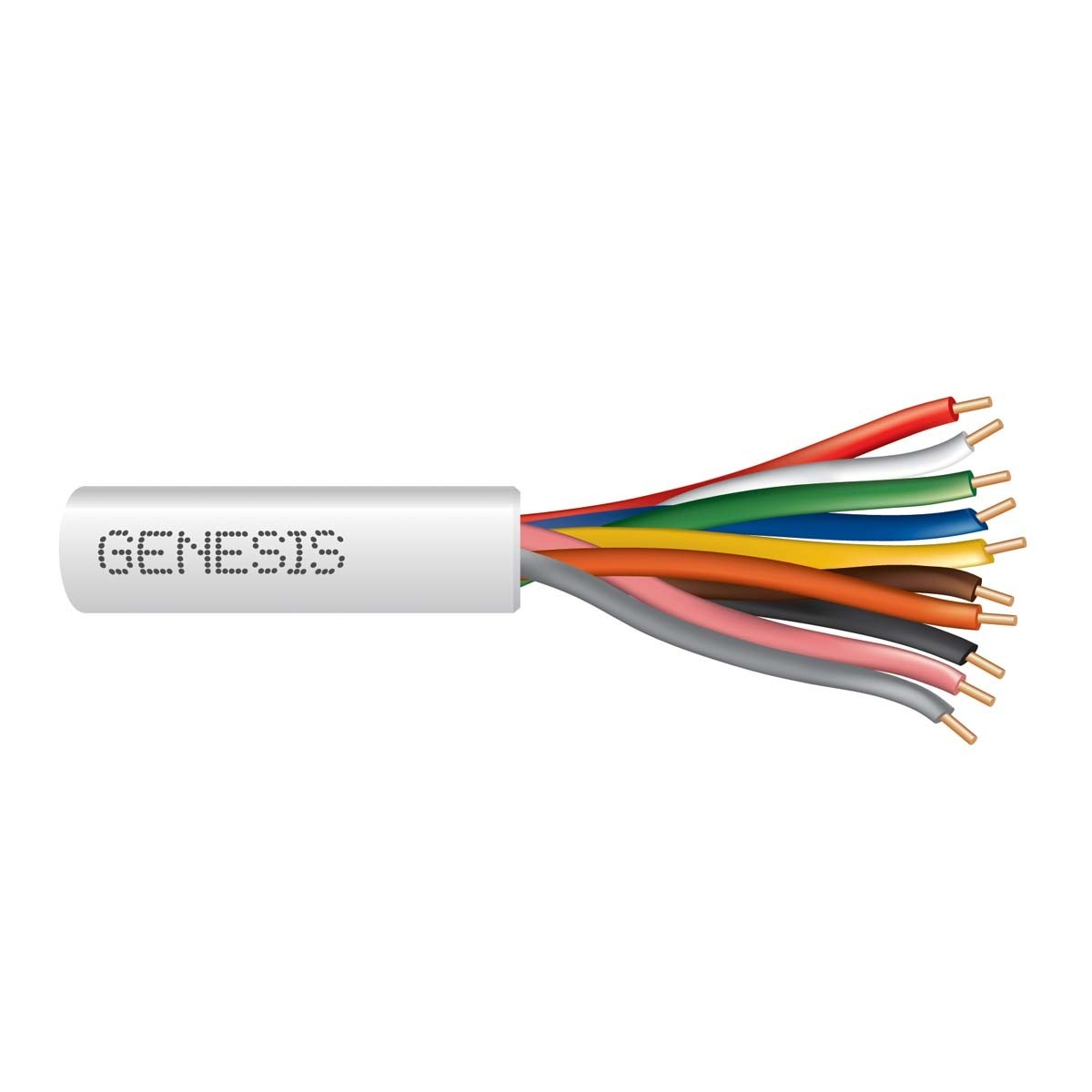

Resideo Genesis 47160307 Thermostat Cable, 18 AWG, 8 Conductors, 250' Length, Solid, Bare Copper, 150 V (Max), -4-140 °F
Resideo Genesis 47160307 Thermostat Cable, 18 AWG, 8 Conductors, 250' Length, Solid, Bare Copper, 150 V (Max), -4-140 °F
| Capacitance | : | 22.8 pF/ft |
| Conductor Material | : | Bare Copper |
| Conductor Size | : | 18 AWG |
| Conductor Type | : | Solid |
| End Type | : | Bare Wire |
| Impedance | : | 100 Ohms |
| Insulation Color | : | Red, White, Green, Blue, Yellow, Brown, Orange, Black |
| Insulation Material | : | Polypropylene |
| Insulation Thickness | : | 0.006 " |
| Jacket Color | : | Brown |
| Jacket Material | : | PVC |
| Jacket Thickness | : | 0.015 " |
| Length | : | 250 ' |
| Number of Conductors | : | 8 |
| Outside Diameter | : | 0.204 " |
| Package Type | : | Reel |
| Resistance | : | 6.52 Ohms (Per 1000 Ft @ 20°C) |
| Series | : | Genesis |
| Solid/Stranded | : | Solid |
| Temperature Rating | : | -4-140 °F |
| Voltage Rating | : | 150 V (Max) |
This Genesis thermostat cable features 8 solid bare copper conductors (18 AWG) and is designed for wiring thermostat controls, heating and air conditioning equipment, doorbells, and other low-voltage applications. It comes on a 250-foot reel for convenient handling during installation.The cable is constructed with polypropylene insulation and a durable, sunlight-resistant brown PVC jacket, suitable for various environments. It includes a braided ripcord and sequential footage markings on the spool to simplify installation.
Resideo Thermostat Cable, Model: Genesis, 18 AWG, 8 Conductors, 250' Length, Solid, Bare Copper, 150 V (Max), -4-140 °F, Polypropylene Insulation, PVC Jacket, 0.015" (Nominal) Jacket Thickness, 0.006" (Nominal) Insulation Thickness, Bare Wire, Brown, Red, White, Green, Blue, Yellow, Brown, Orange, Black Insulation Color, 0.204" (Nominal) Outside Diameter, Reel, Solid Conductor, 6.52 Ohms (Per 1000 Ft @ 20°C), 100 Ohms (Nominal), 22.8 Pf/Ft
- Features 8 solid bare copper conductors (18 AWG) for reliable low-voltage connections.
- Durable brown PVC jacket provides sunlight resistance.
- Polypropylene insulation protects individual conductors.
- Rated CL2 for use in power-limited circuits (NEC Article 725).
- Sequential footage markings on the reel simplify measurement during installation.
- Includes a braided ripcord for easier jacket stripping.
- ETL Listed and RoHS Compliant.
