Yellow Jacket Series 41 42004 Manifold Kit, 2 Pcs (Valves), 3 Pcs (Hoses), 0-350 PSI (Low Side), 0-800 PSI (High Side), 1% FS (Class 1) Accuracy, 1/4" Flare End Connection, 4,000 PSI (Hoses) Burst Pressure, Forged Brass (Body), Nylon (Seats), Steel (Gauge Case), Polycarbonate (Gauge Crystal), Metal (Handles), 3-1/2" H x 10-5/8" W x 11-7/8" D Dimensions
Yellow Jacket Series 41 42004 Manifold Kit, 2 Pcs (Valves), 3 Pcs (Hoses), 0-350 PSI (Low Side), 0-800 PSI (High Side), 1% FS (Class 1) Accuracy, 1/4" Flare End Connection, 4,000 PSI (Hoses) Burst Pressure, Forged Brass (Body), Nylon (Seats), Steel (Gauge Case), Polycarbonate (Gauge Crystal), Metal (Handles), 3-1/2" H x 10-5/8" W x 11-7/8" D Dimensions
| Accuracy | : | 1% FS (Class 1) |
| Burst Pressure | : | 4,000 PSI (Hoses) |
| Color | : | Red/Blue (Gauges), Red/Yellow/Blue (Hoses), Brass (Body) |
| Connection Size | : | 1/4 " |
| Dimensions | : | 3-1/2" H x 10-5/8" W x 11-7/8" D |
| End Connection | : | 1/4" Flare |
| Finish | : | Forged Brass |
| Gauge Range | : | 0-350 PSI (Low Side), 0-800 PSI (High Side) |
| Material | : | Forged Brass (Body), Nylon (Seats), Steel (Gauge Case), Polycarbonate (Gauge Crystal), Metal (Handles) |
| Model | : | 42004 |
| Number of Pieces | : | 2 pcs (Valves), 3 pcs (Hoses) |
| Pressure Rating | : | 800 PSI (Working, Hoses), 0-800 PSI (High Side Gauge), 0-350 PSI (Low Side Gauge) |
| Series | : | Series 41 |
| Suitable For Use With | : | Refrigerants: R-22, R-404A, R-410A |

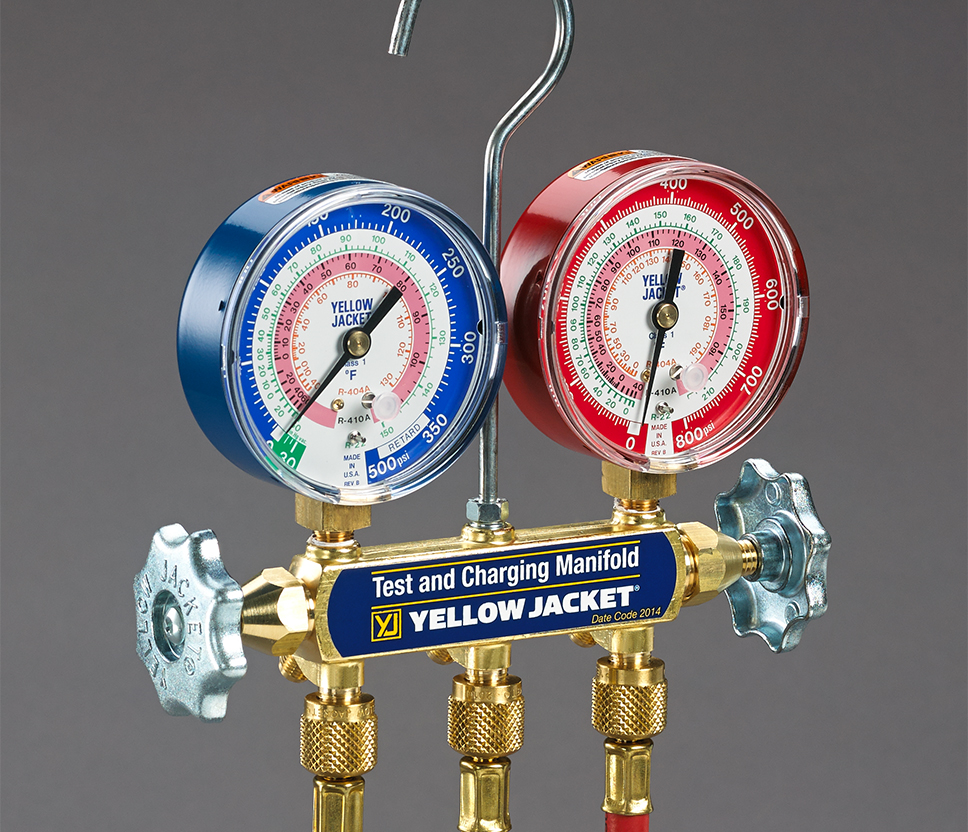

The YELLOW JACKET® Series 41 Test and Charging Manifold has been the standard of the industry for both ease-of-use and durability. This field-proven manifold features large, easy-to-read 3-1/8" color-coded gauges housed in rugged steel cases with polycarbonate crystals. These Class 1 gauges provide 1% accuracy for precise readings, essential for critical charge systems.Constructed with a durable forged brass body and long-lasting nylon seats, this 2-valve manifold features sliding double O-ring pistons to minimize wear. The kit includes three 60-inch YELLOW JACKET PLUS IIâ„¢ hoses (red, yellow, blue) with standard 1/4-inch flare fittings, suitable for use with R-22, R-404A, and R-410A refrigerants.
Yellow Jacket Manifold Kit, Model: Series 41, 2 Pcs (Valves), 3 Pcs (Hoses), 0-350 PSI (Low Side), 0-800 PSI (High Side), 1% FS (Class 1) Accuracy, 1/4" Flare End Connection, 4,000 PSI (Hoses) Burst Pressure, Forged Brass (Body), Nylon (Seats), Steel (Gauge Case), Polycarbonate (Gauge Crystal), Metal (Handles), 3-1/2" H x 10-5/8" W x 11-7/8" D Dimensions, Red/Blue (Gauges), Red/Yellow/Blue (Hoses), Brass (Body), Forged Brass
- Features large 3-1/8" color-coded gauges with 1% accuracy (Class 1) for precise readings.
- Built with a durable forged brass body and long-life nylon seats for extended use.
- Sliding double O-ring pistons minimize wear on the valve stems.
- Full porting design maximizes refrigerant capacity and flow during service.
- Includes three 60" YELLOW JACKET PLUS IIâ„¢ hoses (RYB) with standard 1/4" flare fittings.
- Compatible With: R-22, R-404A, and R-410A refrigerants.
- Included hose assemblies are UL recognized for safety and performance.
- Made in the USA.
