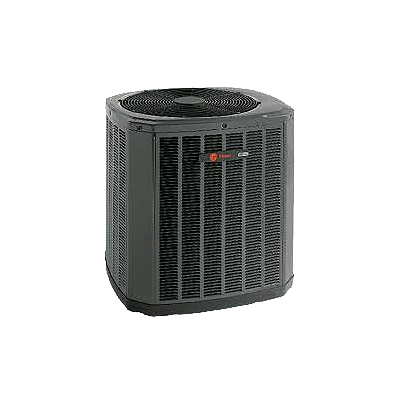

Trane 5TTV8X24A1000A,TruComfort, 2T, 18 SEER2, Variable Speed Air Conditioner
Trane 5TTV8X24A1000A,TruComfort, 2T, 18 SEER2, Variable Speed Air Conditioner
Manufacturer: Trane International Inc
Brand: TRANE®
Part #: 390553
MPN: 5TTV8X24A1000A
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| BTU Rating | : | 24,000 Btu/hr |
| MCA | : | 19 |
| Max Amps | : | 30.0 |
| Max Fuse | : | 30 A |
| Model Number | : | 5TTV8 |
| Noise Level | : | 67 dba |
| Nominal Capacity BTU Rating | : | 24,000 |
| Number of Stages | : | Variable Speed |
| Phase | : | 1.0 ph |
| Power Supply | : | 208/230 V/1 Phase/60 Hz |
| Product Family Series | : | TruComfort |
| Refrigerant Type | : | R-454B |
| SEER2 Range | : | 16.5 |
| Sound Level | : | 67 dBA |
| Stages | : | Variable |
| Tonnage | : | 2.0 Ton |
| Voltage | : | 208/230 V |
Trane 5TTV8X24A1000A,TruComfort, 2T, 18 SEER2, 24,000 BTU, 208/230V, R454B, Variable Speed Air Conditioner
- Variable Speed Air Conditioner outdoor products using R-454B refrigerant
- This outdoor unit contains the TRANE Link Air Conditioners digital communication with Plug-nPlay set up.
- Unit casing is constructed of heavy gauge. G60 galvanized steel and painted with a weatherresistant powder paint on all louvered panels and prepaint on all other panels. Corrosion and weatherproof CMBP-G30 DuraTuff™ base.
- Refrigeration system controls include condenser fan, compressor inverter drive and high and low pressure switches. A factory supplied, field installed filter is standard.
- Inverter driven compressor with variable output capacities. Noise enclosure minimizes sound levels. Compressor protections reduce operating speed and current draw to maintain operation while protecting the compressor.
- The Spine Fin™ outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all four sides by louvered panels.
- This system must include a A/T HUI2360A200U thermostat and a TSYS2C60A2VVU system controller to operate and is Link communicating only.
