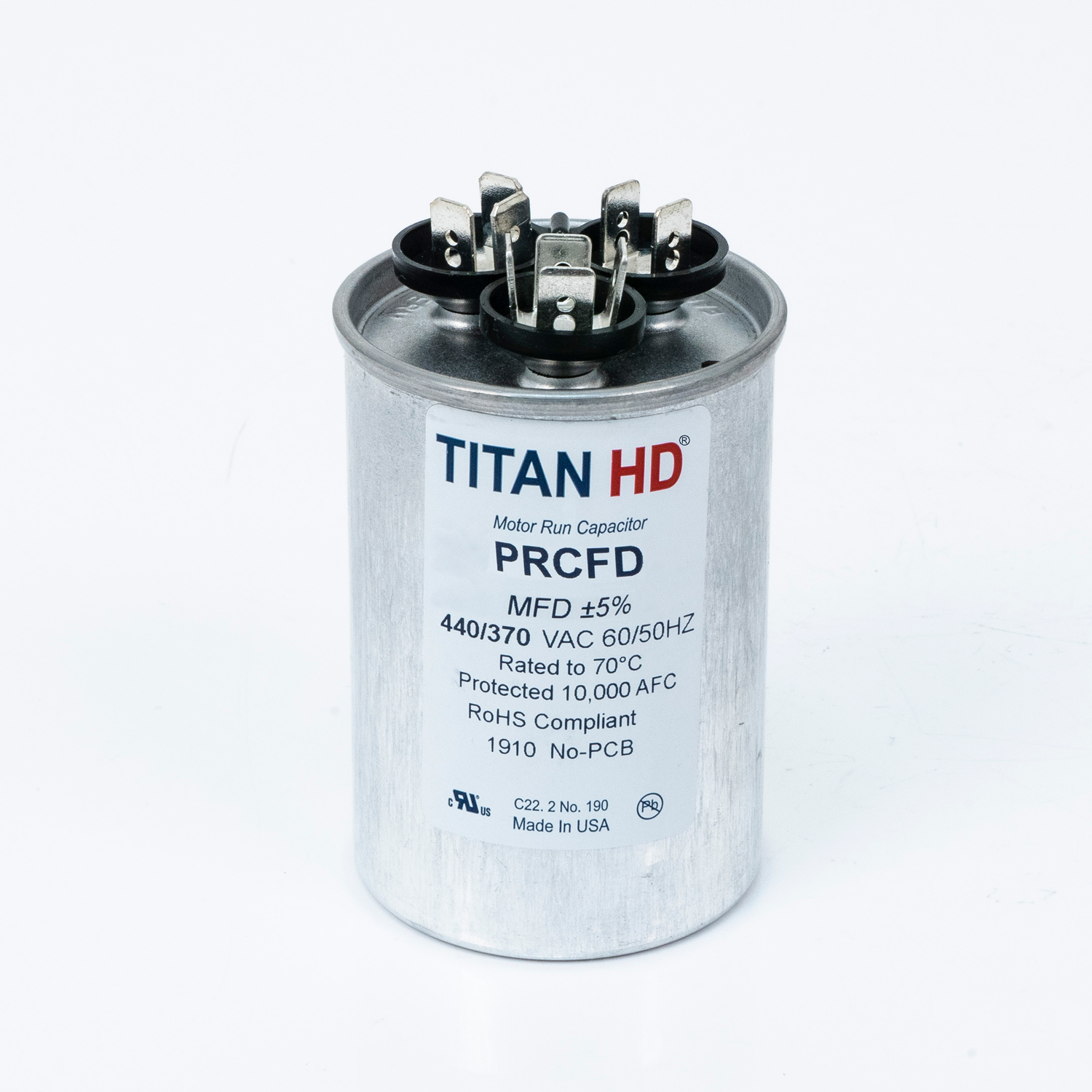

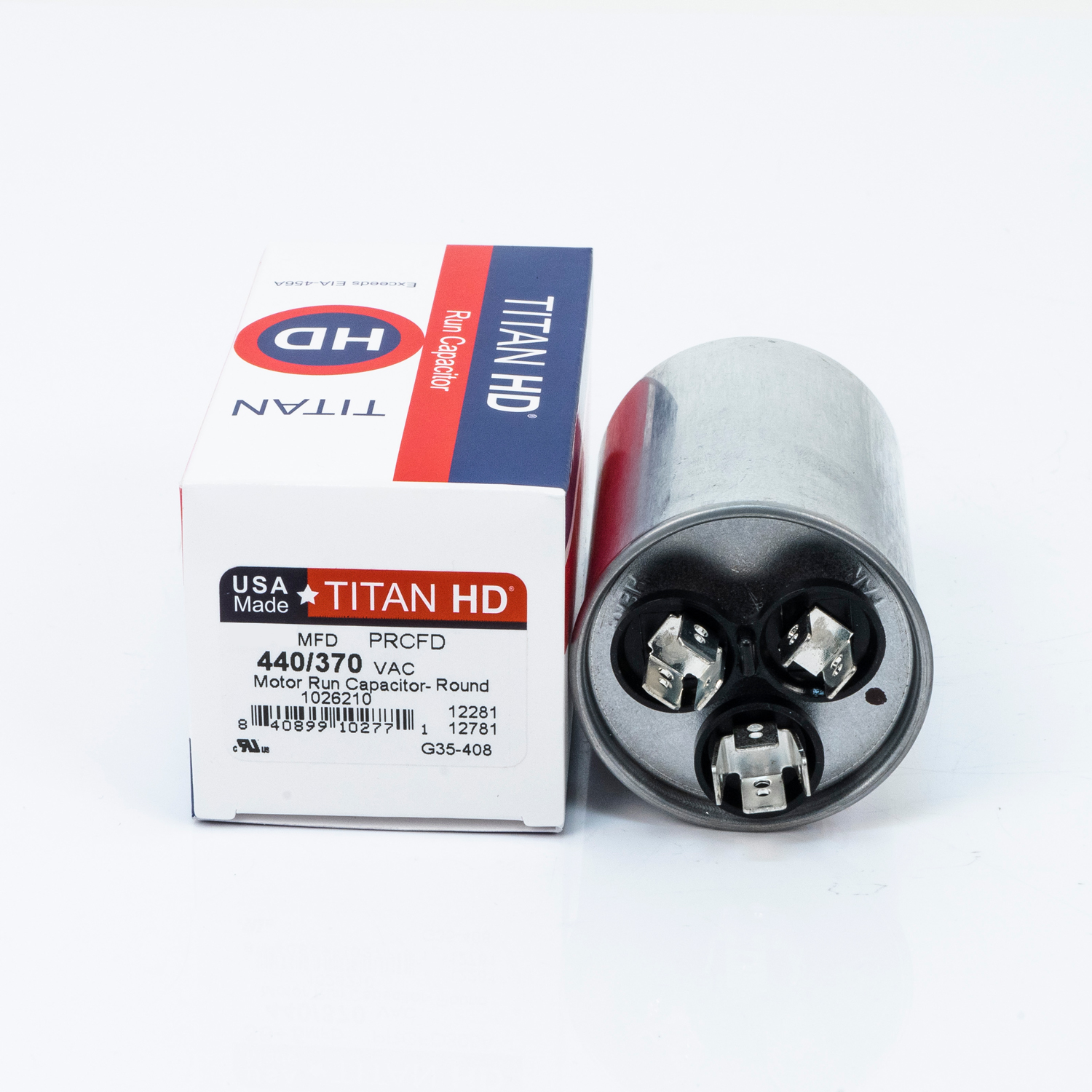

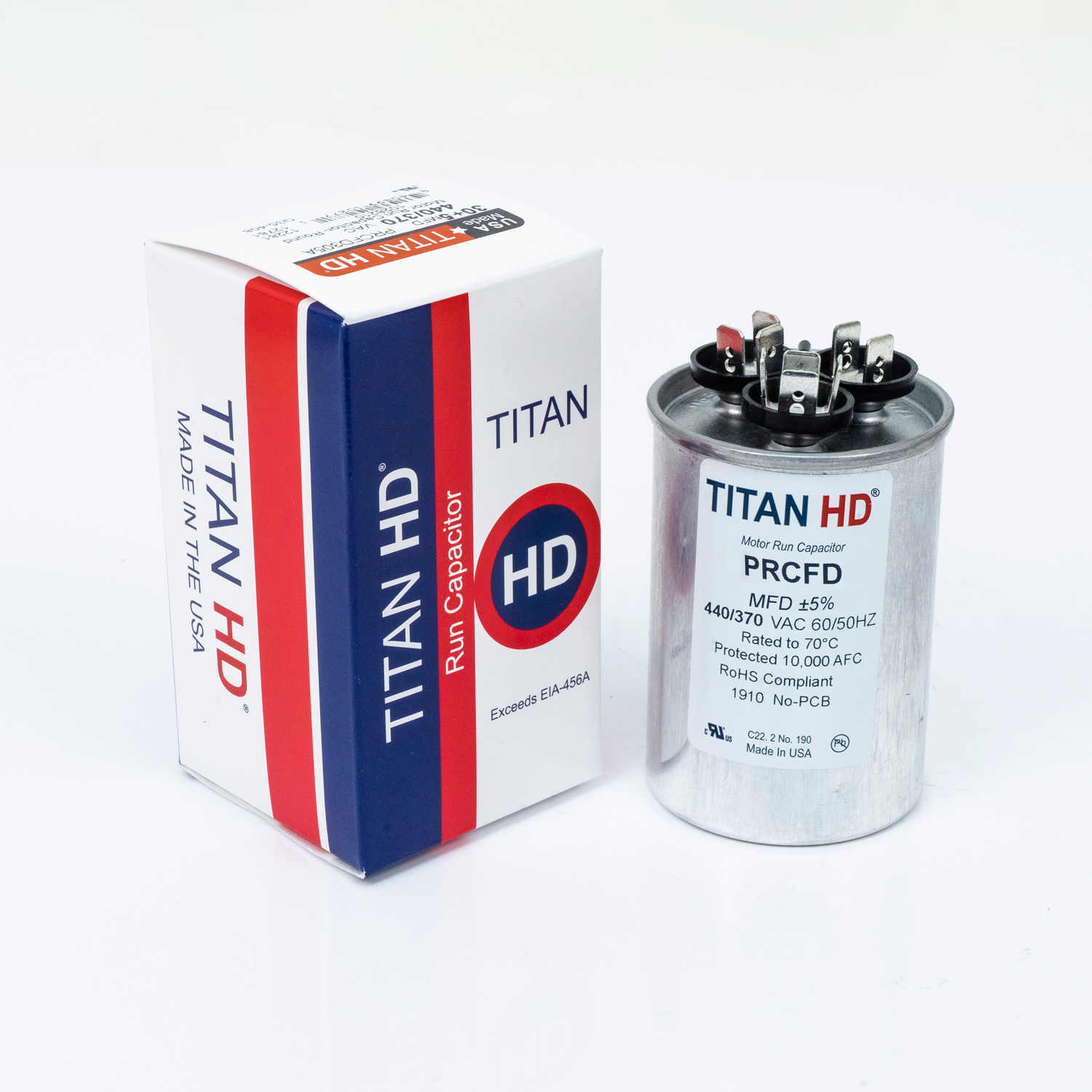

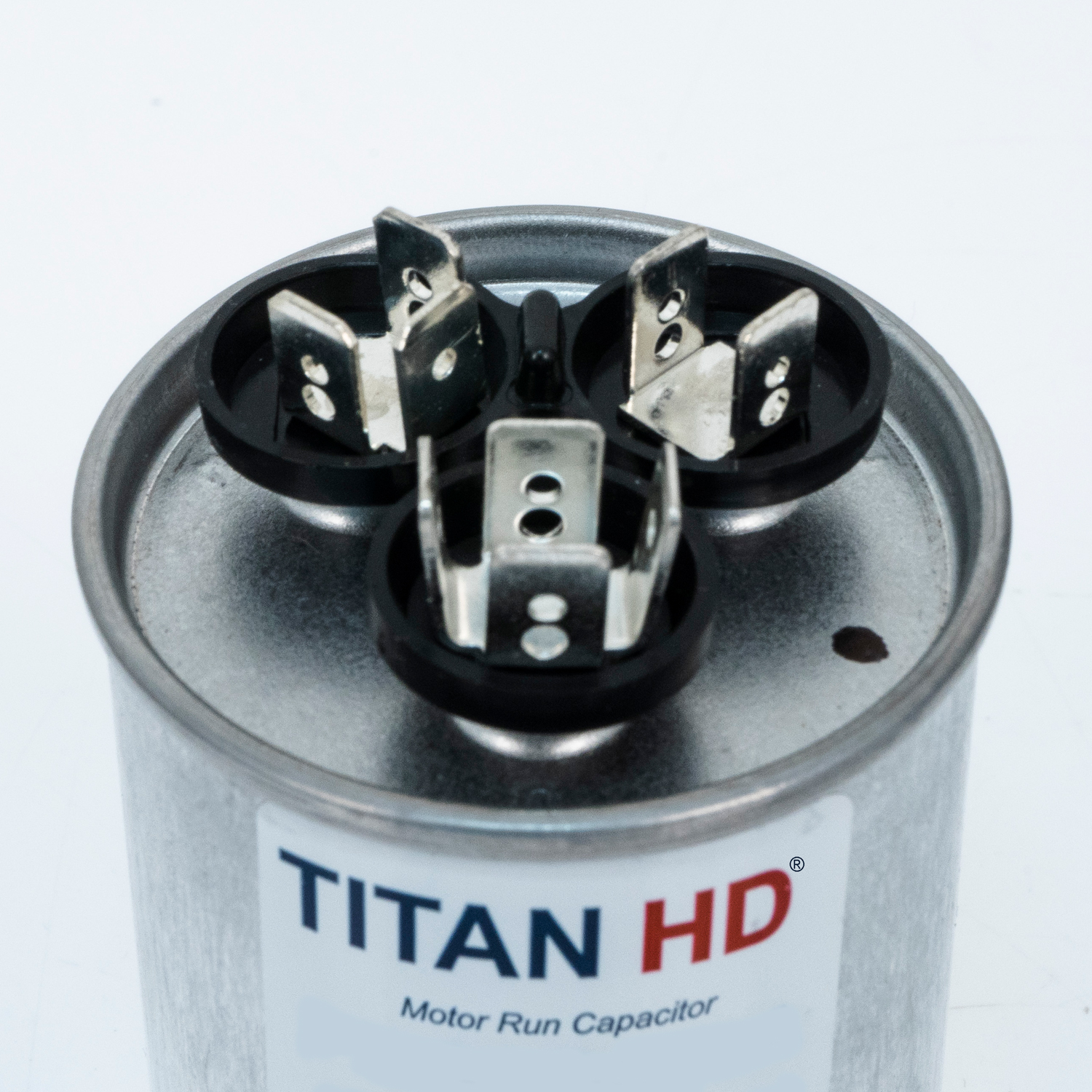

Packard Titan HD PRCFD305A Dual Motor Run Capacitor, 30/5 MFD, 440/370 VAC, Round, 2 Number Of Sections, 3-13/32" Overall Height, 2" Diameter, Aluminum (Case), Steel (Cover) Housing Material
Packard Titan HD PRCFD305A Dual Motor Run Capacitor, 30/5 MFD, 440/370 VAC, Round, 2 Number Of Sections, 3-13/32" Overall Height, 2" Diameter, Aluminum (Case), Steel (Cover) Housing Material
Packard Titan HD PRCFD305A Dual Motor Run Capacitor, 30/5 MFD, 440/370 VAC, Round, 2 Number Of Sections, 3-13/32" Overall Height, 2" Diameter, Aluminum (Case), Steel (Cover) Housing Material
Packard Titan HD PRCFD305A Dual Motor Run Capacitor, 30/5 MFD, 440/370 VAC, Round, 2 Number Of Sections, 3-13/32" Overall Height, 2" Diameter, Aluminum (Case), Steel (Cover) Housing Material
Packard Titan HD PRCFD305A Dual Motor Run Capacitor, 30/5 MFD, 440/370 VAC, Round, 2 Number Of Sections, 3-13/32" Overall Height, 2" Diameter, Aluminum (Case), Steel (Cover) Housing Material

Packard Titan HD PRCFD305A Dual Motor Run Capacitor, 30/5 MFD, 440/370 VAC, Round, 2 Number Of Sections, 3-13/32" Overall Height, 2" Diameter, Aluminum (Case), Steel (Cover) Housing Material

Packard Titan HD PRCFD305A Dual Motor Run Capacitor, 30/5 MFD, 440/370 VAC, Round, 2 Number Of Sections, 3-13/32" Overall Height, 2" Diameter, Aluminum (Case), Steel (Cover) Housing Material

Manufacturer: DiversiTech Corporation
Brand: TITAN HD®
Part #: 388854
MPN: PRCFD305A
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Average Life      :      60000 hr
Capacitance      :      30/5 MFD
Case Material      :      Aluminum
Diameter      :      2 "
Frequency Rating      :      50/60 Hz
Height      :      2.91 in
Housing Color      :      Silver
Housing Material      :      Aluminum (Case), Steel (Cover)
MFD Rating      :      30+5 uF
Number of Sections      :      2
Overall Height      :      3-13/32 "
Series      :      Titan HD
Shape      :      Round
Standard Tolerance      :      +/-5 %
Suitable For Use With      :      Electric Motors, Air Conditioning, Refrigeration, Business Machines, Fans
Temperature Rating      :      -40 to 70 deg C
Terminal Type      :      Standard Blade
Voltage Rating      :      440/370 VAC

Packard created the USA-made Titan HDâ„¢ capacitor to offer contractors reliability on the job. Designed for longevity, it boasts an operating life of 60,000 hours.This round, dual-run capacitor combines two capacitance values (30 MFD and 5 MFD) into a single unit, allowing it to replace two separate capacitors. It is suitable for powering two motors simultaneously, commonly used for blowers and compressors in HVAC systems, refrigeration units, and fans.

Packard Dual Motor Run Capacitor, Model: Titan HD, 30/5 MFD, 440/370 VAC, Round, 2 Number Of Sections, 3-13/32" Overall Height, 2" Diameter, Aluminum (Case), Steel (Cover) Housing Material, Silver

  • Made in the USA.
  • Designed for a long operating life of up to 60,000 hours.
  • Features self-healing metalized polypropylene film technology.
  • Includes a UL-approved pressure-sensitive interrupter for safe end-of-life operation.
  • Filled with patented, environmentally-friendly soybean-based oil to prevent corrosion and enhance heat transfer.
  • Meets rigorous EIA-456A industry standards for performance and quality.
  • UL recognized, cUL approved, and RoHS compliant.
