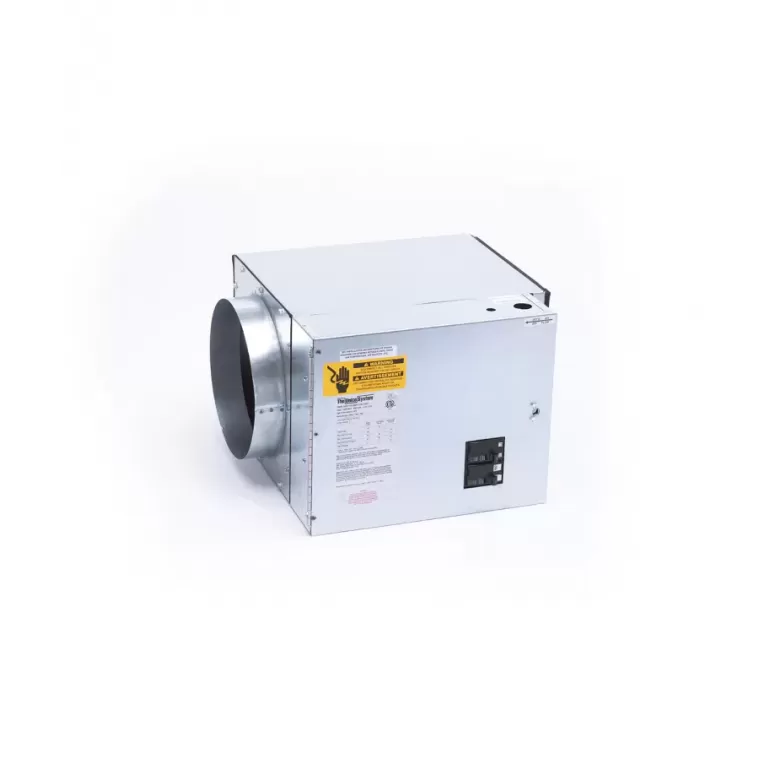

The Unico System WON Series Electric Furnace, 10,000 W (Nominal), 9,600 W (Rated Output @ 240v), 240 V, 1 Phase, 34,120 BTU/hr, ≥500 CFM, Horizontal, Upflow Configuration, 2 (Heating Steps) Speeds
The Unico System WON Series Electric Furnace, 10,000 W (Nominal), 9,600 W (Rated Output @ 240v), 240 V, 1 Phase, 34,120 BTU/hr, ≥500 CFM, Horizontal, Upflow Configuration, 2 (Heating Steps) Speeds
| Amperage Rating | : | 58.1 A (MCA, Heater + Motor); 40 A (Heater); 6.5 A (Max Fan) |
| BTU Rating | : | 34,120 BTU/hr |
| CFM Rating | : | 500 CFM |
| Configuration | : | Horizontal, Upflow |
| Dimensions | : | 16" L x 12" H x 16" W |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Electric |
| Fuse Rating | : | 60 A (Max Overcurrent Protection, Combined Heater + Motor) |
| Material | : | Insulated Galvanized Steel (Cabinet Enclosure) |
| Model | : | WON1002-C |
| Number of Speeds | : | 2 (Heating Steps) |
| Phase | : | 1 |
| Power Rating | : | 10,000 W , 9,600 W (Rated Output @ 240v) |
| Series | : | WON Series |
| Temperature Rating | : | 165 °F (Auto Limit), 160 °F (Max Outlet), 250 °F (Fuse Link) |
| Transformer Rating | : | 24V / 17 VA (Control) |
| Voltage Rating | : | 240 V |
This electric furnace module is designed for use as either a primary heat source or as auxiliary heating within a heat pump system. It delivers 10 kW (34,120 BTU/hr) of heating capacity using a 240V single-phase power supply.The unit can be directly mounted to compatible Unico System air handlers (models 2430, 3036, 3642, 4860) or installed in the supply duct downstream as a duct heater. It incorporates several safety features, including an automatic high-temperature limit, fuse link backup, and an air pressure switch. Time-delay sequencers ensure a gradual power draw for softer starts.
The Unico System Electric Furnace, Model: WON Series, 10,000 W (Nominal), 9,600 W (Rated Output @ 240v), 240 V, 1 Phase, 34,120 BTU/hr, ≥500 CFM, Horizontal, Upflow Configuration, 2 (Heating Steps) Speeds, ≤60 A (Max Overcurrent Protection, Combined Heater + Motor) Fuse Rating, 58.1 A (MCA, Heater + Motor); 40 A (Heater); 6.5 A (Max Fan), 24V / 17 VA (Control), 16" L x 12" H x 16" W Dimensions, Insulated Galvanized Steel (Cabinet Enclosure), 60 Hz, Electric, 165 °F (Auto Limit), 160 °F (Max Outlet), 250 °F (Fuse Link)
- Provides 10 kW (34,120 BTU/hr) electric heating capacity at 240V, 1 Phase.
- Versatile installation options: mount directly to air handler or use as a duct heater.
- Incorporates multiple safety features including high-limit, fuse link, and air pressure switch.
- Time-delay sequencers provide a soft start by gradually stepping power draw.
- Galvanized, insulated cabinet allows for zero clearance installation in attics, closets, or alcoves.
- Compatible With: Unico System Air Handlers 2430, 3036, 3642, and 4860.
- ETL Listed for safety compliance.
