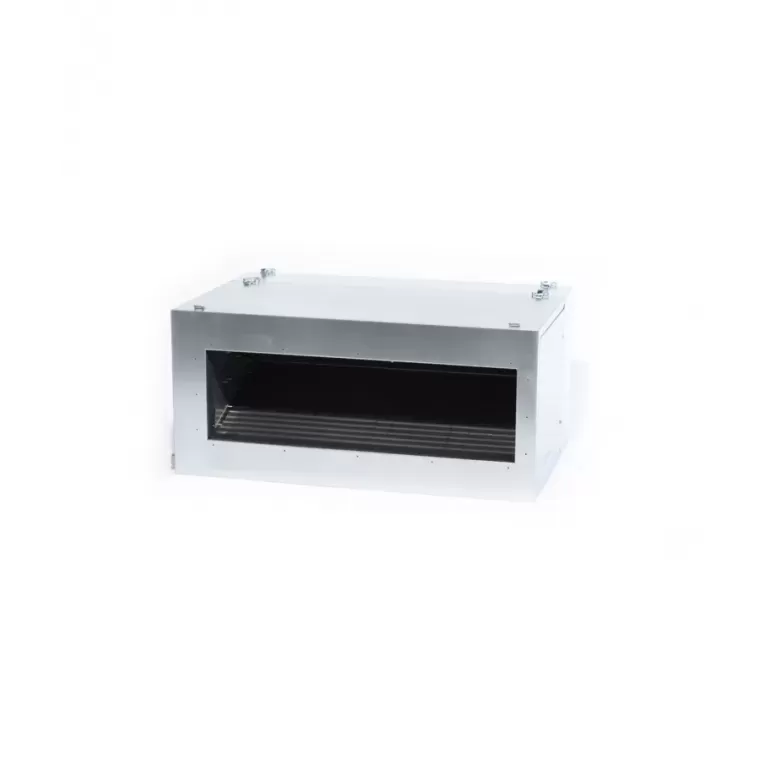

The Unico System M-Series M4860CL1-B Refrigerant Coil Module, 4.0-5.0 Tons, R-410A, R-22, R-407C, C-Coil, Left Hand, Horizontal, Vertical Upflow Mounting Type, Sweat/Braze (Liquid/Suction Lines), FPT (Drain), Chatleff Thread (TXV), 3/8" (Liquid Line), 7/8" (Suction Line), 3/4" FPT (Drain Connection) Connection Size, 17-1/2" H x 38" W x 24" D Dimensions
The Unico System M-Series M4860CL1-B Refrigerant Coil Module, 4.0-5.0 Tons, R-410A, R-22, R-407C, C-Coil, Left Hand, Horizontal, Vertical Upflow Mounting Type, Sweat/Braze (Liquid/Suction Lines), FPT (Drain), Chatleff Thread (TXV), 3/8" (Liquid Line), 7/8" (Suction Line), 3/4" FPT (Drain Connection) Connection Size, 17-1/2" H x 38" W x 24" D Dimensions
| BTU Rating | : | 48,000-60,000 BTU/hr |
| CFM Rating | : | 300-1,200 CFM |
| Coil Rating | : | 3-Row, 14 FPI, 7.44 sq-ft |
| Coil Type | : | Copper Tube/Aluminum Fin |
| Configuration | : | C-Coil, Left Hand |
| Connection Size | : | 3/8" (Liquid Line), 7/8" (Suction Line), 3/4" FPT (Drain Connection) |
| Connection Type | : | Sweat/Braze (Liquid/Suction Lines), FPT (Drain), Chatleff Thread (TXV) |
| Dimensions | : | 17-1/2" H x 38" W x 24" D |
| Domestic/Import | : | Domestic |
| Face Area | : | 7.44 sq ft |
| Fin Size | : | 14 FPI |
| Finish | : | Galvanized (Casing) |
| Material | : | Copper (Tubes), Aluminum (Fins), Stainless Steel (Drain Pan), Galvanized Steel (Casing) |
| Model | : | M4860CL1-B |
| Mounting Type | : | Horizontal, Vertical Upflow |
| Nominal Capacity | : | 5 Tons |
| Number of Rows | : | 4 |
| Pressure Rating | : | 514.7 PSI |
| Refrigerant Type | : | R-410A, R-22, R-407C |
| Series | : | M-Series |
| Suitable For Use With | : | Unico Blower Modules: M4860BL1-EC1, M4860BL1-EC2, M4860BL1-ST2, M4860V, M4860R; Most Remote Condensing Units and Heat Pumps (4.0-5.0 Ton) |
| Tonnage | : | 4.0-5.0 tons |
This is the 4 to 5 ton 3 row left hand refrigerant coil module. It has an L shaped stainless steel drain pan for horizontal or vertical up flow installation. All Unico refrigerant coils can be used for both heat pump and A/C only applications. Unico System designed and built evaporator coil modules can be easily installed with the matching Unico System blower modules. The evaporator can be matched to most types of remote condensing units and heat pumps.
The Unico System Refrigerant Coil Module, Model: M-Series, 4.0-5.0 Tons, R-410A, R-22, R-407C, C-Coil, Left Hand, Horizontal, Vertical Upflow Mounting Type, Sweat/Braze (Liquid/Suction Lines), FPT (Drain), Chatleff Thread (TXV), 3/8" (Liquid Line), 7/8" (Suction Line), 3/4" FPT (Drain Connection) Connection Size, 17-1/2" H x 38" W x 24" D Dimensions, 300-1,200 CFM, 48,000-60,000 BTU/hr, Copper Tube/Aluminum Fin, Copper (Tubes), Aluminum (Fins), Stainless Steel (Drain Pan), Galvanized Steel (Casing), 4 Rows, 14 FPI, 7.44 Sq Ft Face Area, 514.7 PSI, Galvanized (Casing), Domestic
- Modular construction allows for flexible system configuration.
- Suitable for both air conditioning-only and heat pump applications.
- Features enhanced aluminum fins and copper tubes for efficient heat transfer.
- Includes a durable stainless steel L-shaped drain pan suitable for horizontal or vertical upflow installation.
- Comes equipped with an anti-frost switch to prevent coil freezing.
- Includes a field-installed R-410A TXV and EZ Trap condensate trap.
- Compatible with Unico System blower modules M4860BL1-EC1, M4860BL1-EC2, M4860BL1-ST2, M4860V, M4860R.
