Sustainable Coils 1060A23C Cased A-Coil, 4-5 Tons, R-410A (Standard), R-22 (Optional Piston), Swaged, 3/8" (Liquid Line), 7/8" (Suction Line), 3/4" NPT (Drain Connection) Connection Size, 24" H x 24-1/2" W x 21-1/4" D Dimensions, Fin And Tube, A-Coil, Aluminum, Plastic, Nylon, Copper Alloy
Sustainable Coils 1060A23C Cased A-Coil, 4-5 Tons, R-410A (Standard), R-22 (Optional Piston), Swaged, 3/8" (Liquid Line), 7/8" (Suction Line), 3/4" NPT (Drain Connection) Connection Size, 24" H x 24-1/2" W x 21-1/4" D Dimensions, Fin And Tube, A-Coil, Aluminum, Plastic, Nylon, Copper Alloy
| BTU Rating | : | 60,000 Btu/hr |
| Coil Type | : | Fin And Tube, A-Coil |
| Configuration | : | Cased A-Coil |
| Connection Size | : | 3/8" (Liquid Line), 7/8" (Suction Line), 3/4" NPT (Drain Connection) |
| Connection Type | : | Swaged |
| Dimensions | : | 24" H x 24-1/2" W x 21-1/4" D |
| Fin Size | : | 14 FPI |
| Finish | : | Galvanized |
| Material | : | Aluminum, Plastic, Nylon, Copper Alloy |
| Metering Device | : | Fixed Orifice |
| Model | : | 1060A23C |
| Nominal Capacity | : | 4-5 Tons |
| Number of Rows | : | 3 |
| Pressure Rating | : | 2,500 PSI (Burst Pressure Minimum) |
| Refrigerant Type | : | R-22, R-410A |
| Tonnage | : | 4-5 Ton |
| Width | : | 24.5 in |

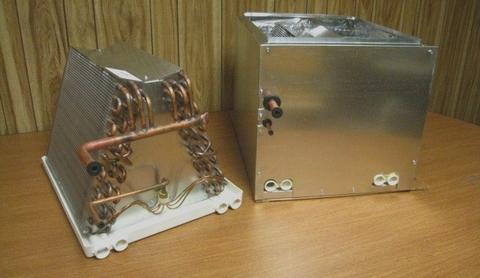

This cased A-coil serves as a replacement for HVAC systems requiring both a new coil and cabinet. It features a 22-gauge G-90 galvanized steel cabinet enclosure with premium foil-backed insulation, sized to fit standard furnace widths. A heal-punched, one-piece access panel allows for easier cleaning and maintenance without disconnecting refrigerant lines or drain connections.Constructed with durable copper alloy tubing and aluminum fins, this coil is designed for longevity and efficient performance. It comes piston-metered for R-410A refrigerant, with an optional R-22 piston available for compatibility with older systems. Aluminum end plates resist rust, and the sturdy plastic drain pan is UV-safe and highly flame-resistant (UL 94, 5VFR rated).
Sustainable Coils Cased A-Coil, 4-5 Tons, R-410A (Standard), R-22 (Optional Piston), Swaged, 3/8" (Liquid Line), 7/8" (Suction Line), 3/4" NPT (Drain Connection) Connection Size, 24" H x 24-1/2" W x 21-1/4" D Dimensions, Fin And Tube, A-Coil, Aluminum, Plastic, Nylon, Copper Alloy, 3 Rows, 14 FPI, 2,500 PSI (Burst Pressure Minimum), Galvanized
- Features a sturdy 22-gauge G-90 galvanized steel cabinet with foil-backed insulation.
- Heal-punched access panel simplifies maintenance without disconnecting lines.
- Built with 3/8" O.D. copper alloy tubing and aluminum fins (14 FPI) for reliable heat transfer.
- Aluminum end plates and a UV-safe, UL 94 5VFR-rated plastic drain pan enhance durability.
- Piston-metered for R-410A refrigerant, with an optional R-22 piston available.
- Pre-swaged connections and a dry nitrogen holding charge facilitate installation.
- Covered by a five-year replacement warranty.
