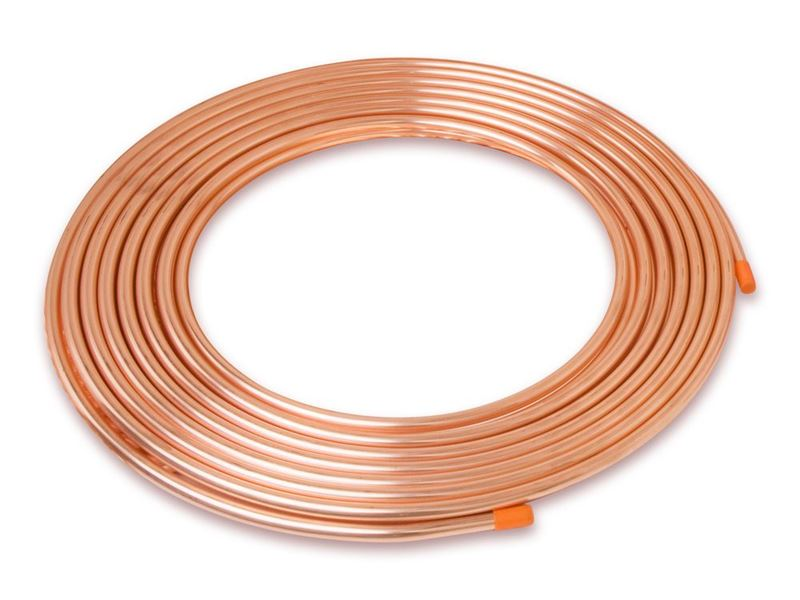

Linesets, Inc DA14050 Copper Tubing Coil, 7/8" Outside Diameter, 600" Length, C12200 Copper, Seamless, Annealed Construction, Annealed Hardness, 700 PSI (@ 250°F) Working Pressure, 150-400 °F
Linesets, Inc DA14050 Copper Tubing Coil, 7/8" Outside Diameter, 600" Length, C12200 Copper, Seamless, Annealed Construction, Annealed Hardness, 700 PSI (@ 250°F) Working Pressure, 150-400 °F
| Finish | : | Bright |
| For Use With | : | HVAC/R Systems, Mechanical Applications |
| Hardness | : | Annealed |
| Length | : | 600 " |
| Material Construction | : | Seamless, Annealed |
| Material | : | C12200 Copper |
| Nominal Size | : | 7/8 " |
| Outside Diameter | : | 7/8 " |
| Resistance Properties | : | Oxidation Resistant (During Brazing) |
| Size | : | 7/8 in |
| Temperature Rating | : | 150-400 °F |
| Wall Thickness | : | 0.045 " |
| Working Pressure | : | 700 PSI (@ 250°F) |
Streamline® Refrigeration Service Tube is of a consistent dead soft temper, bright, thoroughly dried/dehydrated and packed in shrink wrapping plus individual cartons for the highest level of protection. This copper tube provides the strength, precision, and cleanliness needed for demanding HVAC and refrigeration applications.It is pressurized with nitrogen to provide maximum protection against the formation of harmful oxides normally formed during brazing operations, reducing system contamination. Suitable for use in HVACR and mechanical applications, this tube is made to applicable ASTM B280 standards and is UL Rated to 700 PSI (select sizes). Made in the USA.
Linesets, Inc Copper Tubing Coil, 7/8" Outside Diameter, 600" Length, C12200 Copper, Seamless, Annealed Construction, Annealed Hardness, 700 PSI (@ 250°F) Working Pressure, 150-400 °F, 0.045" Wall Thickness, Oxidation Resistant (During Brazing), For Use With HVAC/R Systems, Mechanical Applications, Bright Finish
- Manufactured from C12200 copper with a consistent dead soft (annealed) temper.
- Meets ASTM B280 standards, the industry benchmark for HVACR copper tube.
- Nitrogen-purged and sealed with plugs to maintain cleanliness and minimize oxidation during brazing.
- UL Listed with a working pressure rating of 700 PSI at up to 250°F.
- Bright, thoroughly dried, and dehydrated for reliable performance.
- Packaged in shrink wrap and individual cartons for protection.
- Made in the USA.
