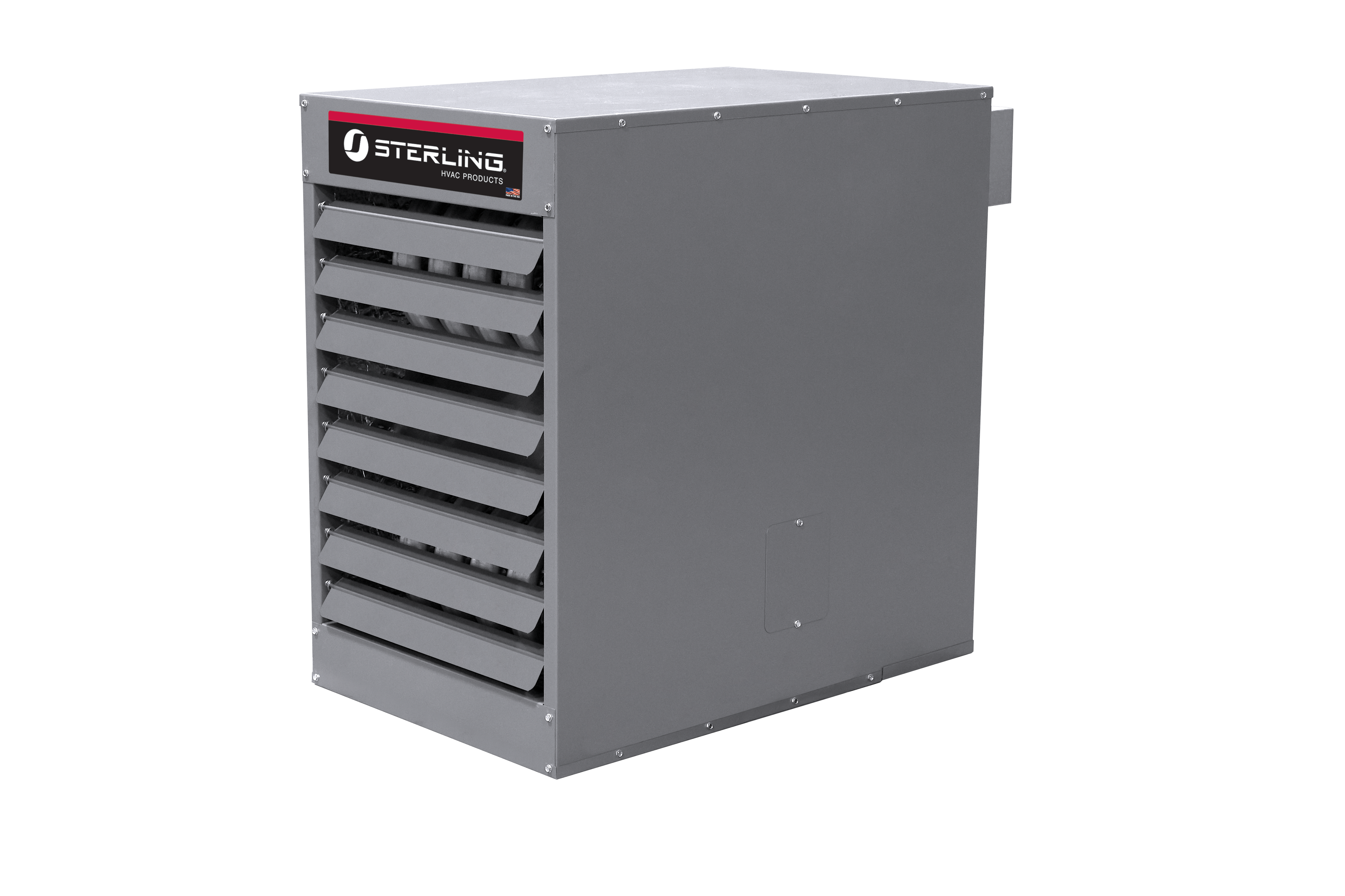

Sterling HVAC XF Series XF250A1NS1110 Propeller Unit Heater, 250,000 BTU/hr, Natural Gas, 115 V, 250 W (Motor), NPT, 3/4" (Gas Inlet) Connection Size, 1 Phase
Sterling HVAC XF Series XF250A1NS1110 Propeller Unit Heater, 250,000 BTU/hr, Natural Gas, 115 V, 250 W (Motor), NPT, 3/4" (Gas Inlet) Connection Size, 1 Phase
| Amperage Rating | : | 8.0 A (FLA), 9.5 A (MCA) |
| BTU Rating | : | 250,000 BTU/hr |
| CFM Rating | : | 3,450 CFM |
| Connection Size | : | 3/4" (Gas Inlet) |
| Connection Type | : | NPT |
| Dimensions | : | 33-3/4" H x 37-1/4" W x 43-1/2" D |
| Domestic/Import | : | Domestic |
| Drive Type | : | Propeller |
| Efficiency | : | 83% (Thermal) |
| Finish | : | Baked Enamel |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| HP Rating | : | 1/3 HP |
| Ignition Type | : | Direct Spark |
| Material | : | Steel (Cabinetry), Aluminized Steel (Heat Exchanger) |
| Model | : | XF250A1NS1110 |
| Motor Type | : | PSC, ODP |
| Mounting Type | : | Suspended Mount |
| Number of Fans | : | 1 |
| Number of Stages | : | 1 |
| Phase | : | 1 |
| Power Rating | : | 250 W (Motor) |
| Rotational Speed | : | 1,050 RPM |
| Vent Size | : | 5 " |
| Voltage Rating | : | 115 V |
The Sterling XF (propeller) and XC (blower) series convertible venting type tubular gas-fired unit heaters offer a highly efficient, extremely durable alternative to the traditional clam shell design. These propeller and blower type units combine the latest tubular heat exchanger and in-shot burner technology with the quality and reliability you have come to know from Sterling. Units are available in sizes 100 to 400 MBH and have been certified by ETL as providing 83% thermal (combustion) efficiency.The “XF/XC†unit heater is designed so it can be installed in either standard or separated combustion venting configurations without requiring modification to the unit itself. Located on the rear cover panel of each unit, combustion air inlet collars are left open in a standard combustion venting configuration. When set up for separated combustion, combustion air piping is connected to the inlet collars so that the burners, spark ignitor, and flue system are enclosed within the unit, allowing the entire combustion process to remain unaffected by the atmosphere in the space where the heater is located. Separated combustion venting configurations should be used where dusty, dirty or mildly corrosive conditions exist, or where high humidity or slightly negative pressures prevail.
Sterling HVAC Propeller Unit Heater, Model: XF Series, 250,000 BTU/hr, Natural Gas, 115 V, 250 W (Motor), NPT, 3/4" (Gas Inlet) Connection Size, 1 Phase, 83% (Thermal) Efficiency, Direct Spark, 5" Vent Size, Suspended Mount, 3,450 CFM, 1 Fan(s), PSC, ODP, 1,050 RPM, Propeller, Steel (Cabinetry), Aluminized Steel (Heat Exchanger), 33-3/4" H x 37-1/4" W x 43-1/2" D Dimensions, Baked Enamel Finish, Domestic, 60 Hz, 8.0 A (FLA), 9.5 A (MCA), 1
- Achieves 83% thermal efficiency for cost-effective heating.
- Convertible design allows for standard or separated combustion venting without unit modification.
- Features a durable 20-gauge aluminized steel tubular heat exchanger.
- Utilizes a reliable direct spark ignition system for fast heat delivery.
- Includes an integral power venter for flexible installation options.
- Individually adjustable and removable horizontal louvers direct airflow where needed.
- Comes with a 10-year warranty on the heat exchanger, flue collector, and burner.
