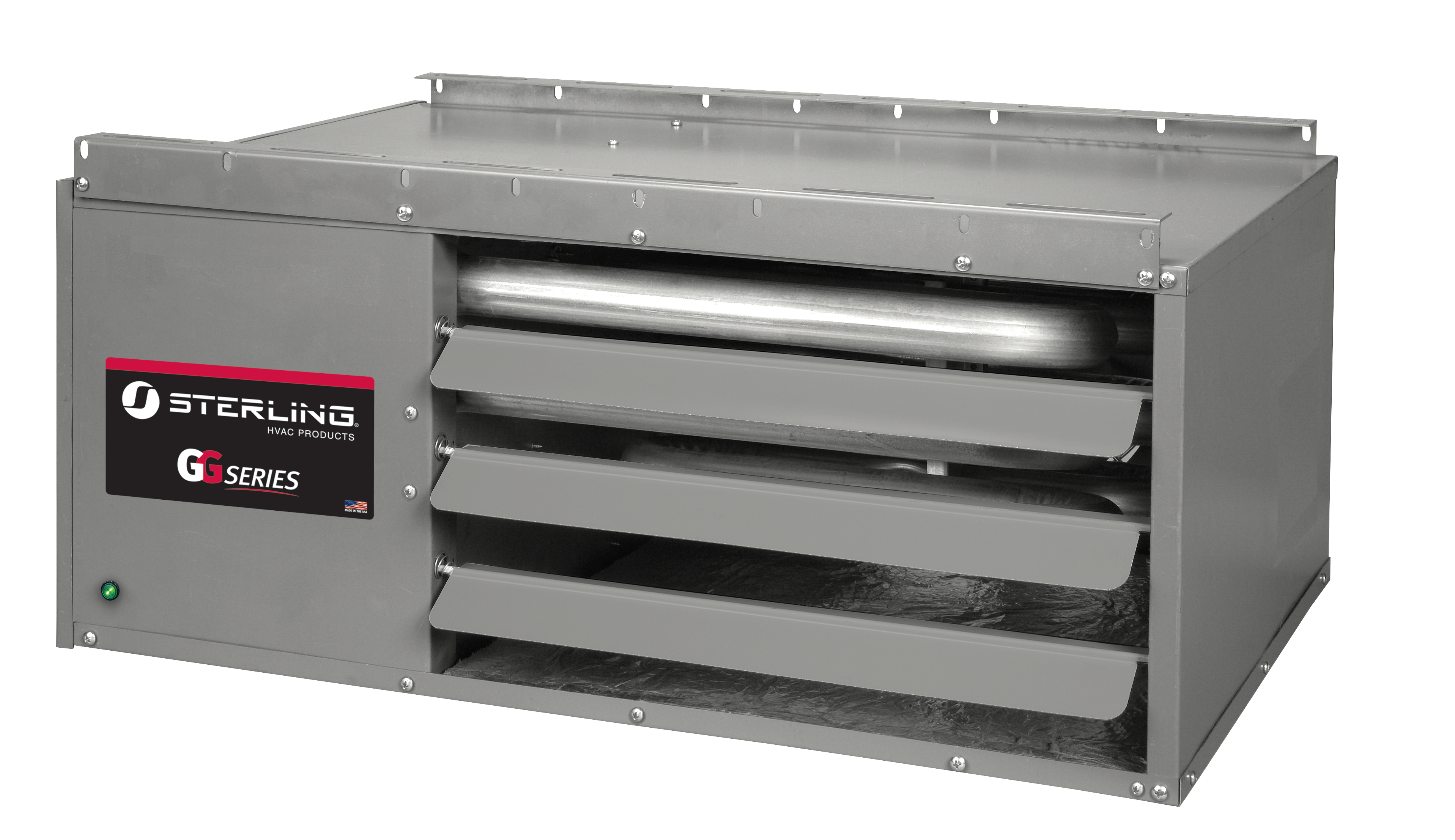

Sterling HVAC GG Series GG060A1NSA11 Low Profile Unit Heater, 60,000 BTU/hr (Input), 49,800 BTU/hr (Output), Natural Gas, 115/120 V, 60 W (Motor), NPT, 1/2" Connection Size, 1 Phase
Sterling HVAC GG Series GG060A1NSA11 Low Profile Unit Heater, 60,000 BTU/hr (Input), 49,800 BTU/hr (Output), Natural Gas, 115/120 V, 60 W (Motor), NPT, 1/2" Connection Size, 1 Phase
| Amperage Rating | : | 4.1 A |
| BTU Rating | : | 60,000 BTU/hr (Input), 49,800 BTU/hr (Output) |
| CFM Rating | : | 740 CFM |
| Connection Size | : | 1/2 " |
| Connection Type | : | NPT |
| Dimensions | : | 16-13/16" H x 30" W x 26-3/16" D |
| Domestic/Import | : | Domestic |
| Efficiency | : | 83% (Thermal) |
| Fan Size | : | 14" Diam |
| Finish | : | Baked Enamel |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| HP Rating | : | 1/12 HP |
| Ignition Type | : | Direct Spark |
| Material | : | 20 Gauge Aluminized Steel (Heat Exchanger), 321 Stainless Steel (Burner Box), 20 Gauge Steel (Jacket Panels) |
| Model | : | GG060A1NSA11 |
| Motor Type | : | ODP, SP |
| Mounting Type | : | Ceiling Mount, Wall Mount, Horizontal |
| Number of Fans | : | 1 |
| Number of Stages | : | 1 |
| Phase | : | 1 |
| Power Rating | : | 60 W (Motor) |
| Rotational Speed | : | 1,050 RPM |
| Vent Size | : | 4 " |
| Voltage Rating | : | 115/120 V |
Take back the garage for year-round use. GG Series gas-fired, low-profile garage unit heaters are both residential and commercial outbuilding certified (non-occupied spaces only) in seven configurations to suit every area. Quiet, thermostat-controlled and easily installed–they stay out of the way and let you keep working comfortably. Units are ready for standard or separate combustion all in one unit.Low Profile Unit HeatersGG Series gas-fired unit heaters combine the latest tubular heat exchanger technologies with a unique single-orifice burner system for superior durability, reliability and performance. GG Series propeller units are available in sizes from 30 to 120 MBH and offer industry leading operating efficiencies in a compact low-profile design perfect for applications where space is limited. Units are ready for standard or separated combustion all in one unit. Optional combustion air inlet kits available for concentric venting.Residential Garage CertifiedAll GG Series units are covered by a limited 10-year heat exchanger warranty and are ETL certified for residential garage installations. Units come standard with LP gas conversion kits, and everything needed for applications in dusty or damp environments.
Sterling HVAC Low Profile Unit Heater, Model: GG Series, 60,000 BTU/hr (Input), 49,800 BTU/hr (Output), Natural Gas, 115/120 V, 60 W (Motor), NPT, 1/2" Connection Size, 1 Phase, 83% (Thermal) Efficiency, Direct Spark, 4" Vent Size, Ceiling Mount, Wall Mount, Horizontal, 740 CFM, 14" Diam Fan Size, 1 Fan(s), ODP, SP, 1/12 HP, 1,050 RPM, 20 Gauge Aluminized Steel (Heat Exchanger), 321 Stainless Steel (Burner Box), 20 Gauge Steel (Jacket Panels), 16-13/16" H x 30" W x 26-3/16" D Dimensions, Baked Enamel Finish, Domestic, 60 Hz, 4.1 A, 1
- Delivers 60,000 BTU input heating with 83% thermal efficiency.
- Features reliable direct spark ignition and a redundant single-stage gas valve.
- Equipped with a durable 20-gauge aluminized steel tubular heat exchanger.
- Designed with a low-profile cabinet made of 20-gauge steel with a baked enamel finish.
- Certified for residential garage installations as well as commercial/industrial use (ETL Listed).
- Includes a natural gas to propane (LP) conversion kit for fuel flexibility.
- Offers versatile installation with standard power venting or optional separated combustion (requires separate kit).
