RectorSeal Safe-T-Switch Condensate Overflow Switch, 3/4" NPT Adapter, Slip (For 3/4" & 1" PVC), Schedule 40 PVC, White
RectorSeal Safe-T-Switch Condensate Overflow Switch, 3/4" NPT Adapter, Slip (For 3/4" & 1" PVC), Schedule 40 PVC, White
| Color | : | White |
| Connection Type | : | 3/4" NPT Adapter, Slip (For 3/4" & 1" PVC) |
| Material | : | Schedule 40 PVC |
| Model | : | SS1 |
| Series | : | Safe-T-Switch |
| Size | : | 3/4", 1" (Drain Pipe Size) |
| Suitable For Use With | : | Primary or Auxiliary A/C Condensate Drain Lines, Air Handler Drain Lines, HVAC Units |

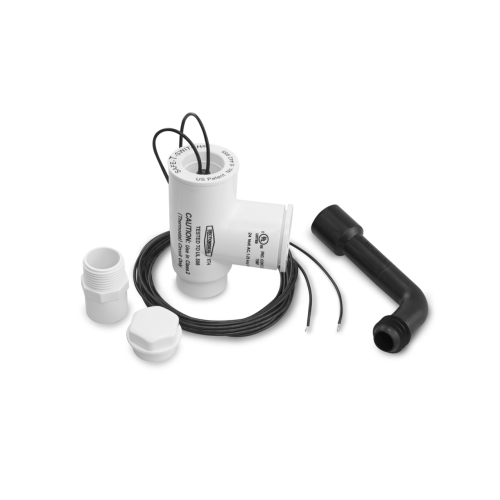

The RectorSeal Safe-T-Switch Model SS1 is an inline condensate overflow switch designed to detect clogged A/C drains and automatically shut off the system, preventing potential water damage. Featuring a reliable magnetic reed switch, it can be installed horizontally or vertically, inline or on a primary pan's auxiliary drain outlet using the included 3/4" adapter, bushing, and cap. The SS1 can be installed on lines sloping up to 45° without needing to be level or plumb. The switch cap is easily removable for cleaning and servicing condensate drain lines, and a directional cleanout tool is included.
RectorSeal Condensate Overflow Switch, Model: Safe-T-Switch, 3/4" NPT Adapter, Slip (For 3/4" & 1" PVC), Schedule 40 PVC, White
- Detects clogged A/C condensate drains and automatically shuts off the system to prevent water damage.
- Installs inline horizontally or vertically on 3/4" or 1" primary or auxiliary drain lines using included fittings.
- Features a reliable, water-sealed magnetic reed switch (24 VAC, 1.25 Amp).
- Removable cap and included directional cleanout tool allow for easy drain line access and servicing.
- Pre-wired with 72-inch (6 ft), 18 AWG lead wires for flexible connection.
- UL 508 compliant.
