RectorSeal Goliath Furnace 96224 Secondary Drain Pan, 79" L x 33-3/4" W x 7-1/2" D (Outer/Max) Dimensions, Dexelar Polymer, Corrosion Resistant, -40-260 °F, Black, Domestic, UL 94-5VA, ASTM E-84 Class C Rated, IRC Code Compliant
RectorSeal Goliath Furnace 96224 Secondary Drain Pan, 79" L x 33-3/4" W x 7-1/2" D (Outer/Max) Dimensions, Dexelar Polymer, Corrosion Resistant, -40-260 °F, Black, Domestic, UL 94-5VA, ASTM E-84 Class C Rated, IRC Code Compliant
| Color | : | Black |
| Depth | : | 7-1/2 " |
| Dimensions | : | 79" L x 33-3/4" W x 7-1/2" D (Outer/Max) |
| Domestic/Import | : | Domestic |
| Finish | : | Corrosion Resistant |
| Length | : | 79 " |
| Material | : | DexElar Polymer |
| Model | : | 96224 |
| Pan Size | : | 34 x 79 in |
| Series | : | Goliath Furnace |
| Specifications | : | UL 94-5VA, ASTM E-84 Class C Rated, IRC Code Compliant |
| Suitable For Use With | : | Furnace Installations Requiring 7" Clearance for Piping Below Unit (Especially Condensing Furnaces); AG-4200 Condensate Management System; AG-GFR Vibration Isolators |
| Temperature Rating | : | -40-260 °F |
| Width | : | 33-3/4 " |

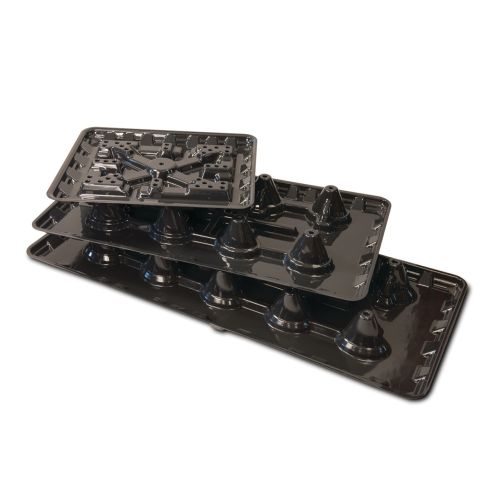

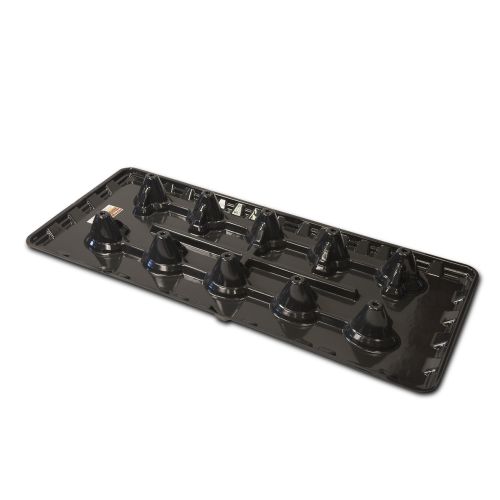

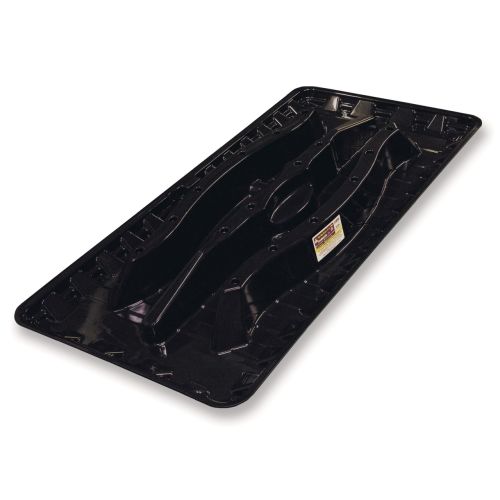

Goliath Furnace Series Secondary Drain Pans offer all the same benefits and features of Goliath Series Secondary Drain Pans, specifically designed for the unique clearance needs of furnace installations and piping requirements. With 7 inches of clearance, Goliath Furnace pans provide the necessary space for piping below a furnace unit, which is especially useful for condensing furnace installations.Engineered with superior one-piece structural strength, these pans feature rolled edges and no seams for durability. Made from advanced polymer DexElar® material, Goliath pans boast exceptional strength, designed to withstand heavy loads and harsh conditions while resisting corrosion, impact, and wear.
RectorSeal Secondary Drain Pan, Model: Goliath Furnace, 79" L x 33-3/4" W x 7-1/2" D (Outer/Max) Dimensions, Dexelar Polymer, Corrosion Resistant, -40-260 °F, Black, Domestic, UL 94-5VA, ASTM E-84 Class C Rated, IRC Code Compliant
- Constructed from durable DexElar® advanced polymer material for superior strength.
- Provides 7 inches of clearance for piping beneath furnace units, ideal for condensing furnace installations.
- Resists cracking, splitting, leaks, and rust for reliable, long-term use.
- Withstands extreme temperatures ranging from -40°F to 260°F.
- Features one-piece construction with rolled edges and no seams, enhancing structural integrity.
- Self-extinguishing material meets UL 94-5VA and ASTM E-84 Class C safety ratings.
- Meets International Residential Code (IRC) requirements.
- Compatible With: AG-4200 Condensate Management System and AG-GFR Vibration Isolators.
