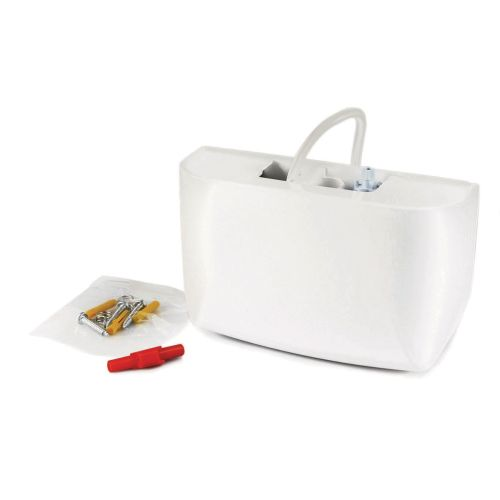

RectorSeal Aspen Mini White ASP-MW-UNI Condensate Pump Kit, 33' Maximum Feet Of Head, 100-250 V, 174-192 GPM (0' Head), 72-96 GPM (33' Head), Remote Mount (Above Ceiling/Inside Lineset Cover), Pan Mount, In-Line (Reservoir), 5/8" (Accepts Drain Hose) Suction Size, 16 W, ≤104 °F (Water) Operating Temperature
RectorSeal Aspen Mini White ASP-MW-UNI Condensate Pump Kit, 33' Maximum Feet Of Head, 100-250 V, 174-192 GPM (0' Head), 72-96 GPM (33' Head), Remote Mount (Above Ceiling/Inside Lineset Cover), Pan Mount, In-Line (Reservoir), 5/8" (Accepts Drain Hose) Suction Size, 16 W, ≤104 °F (Water) Operating Temperature
| Amperage Rating | : | 0.17 A |
| Color | : | White |
| Cord Size | : | 3.25 ' |
| Dimensions | : | 7-1/8" L x 4-1/2" H x 2" W |
| Enclosure Type | : | IPX1 |
| Flow Rate | : | 174-192 GPM (0' Head), 72-96 GPM (33' Head) |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Housing Material | : | ABS |
| Maximum Feet of Head | : | 33 ' |
| Model | : | ASP-MW-UNI |
| Mounting Type | : | Remote Mount (Above Ceiling/Inside Lineset Cover), Pan Mount, In-Line (Reservoir) |
| Operating Temperature | : | 104 °F (Water) |
| Power Rating | : | 16 W |
| Series | : | Aspen Mini White |
| Shut-Off Head | : | 50 ft |
| Suction Size | : | 5/8" (Accepts Drain Hose) |
| Temperature Rating | : | 104 deg F |
| Voltage Rating | : | 100-250 V |
Designed to be fitted below the indoor unit, the Mini White offers an extremely easy to install mini pump for all wall and ceiling suspended indoor units. Snap-on snap-off cover allows for easy filter maintenance.This pump is specifically designed for ductless mini-split air conditioning systems, mounting directly below the evaporator for convenient condensate removal and straightforward maintenance access. Its universal voltage capability simplifies installation across various system requirements.
RectorSeal Condensate Pump Kit, Model: Aspen Mini White, 33' Maximum Feet Of Head, 100-250 V, 174-192 GPM (0' Head), 72-96 GPM (33' Head), Remote Mount (Above Ceiling/Inside Lineset Cover), Pan Mount, In-Line (Reservoir), 5/8" (Accepts Drain Hose) Suction Size, 16 W, ≤104 °F (Water) Operating Temperature, 0.17 A, 3.25' Cord Length, 50 Hz, 60 Hz, 7-1/8" L x 4-1/2" H x 2" W Dimensions, IPX1, ABS, White
- Mounts easily on the wall surface directly below the mini-split evaporator.
- Universal voltage compatibility (100-250V AC) simplifies wiring.
- Suitable for air conditioning systems up to 54,000 BTU.
- Operates quietly with a sound level of 21 dB(A).
- Snap-on cover and clip-out reservoir allow for straightforward filter maintenance.
- Includes an integrated 3A NC safety switch for overflow protection.
- Accepts standard 5/8" drain hose for connection to the evaporator.
- Features fully potted electronics for resistance to shock, vibration, and moisture.
