RectorSeal Maxi Lime ASPMAXLF230 Condensate Pump Kit w/ Fortress Duct, 49' Maximum Feet Of Head, 208/230 V, 0.15 GPM (0' Head), 0.05 GPM (49' Head), Remote Mount (Above Ceiling/Inside Lineset Cover), Pan Mount, In-Line (Reservoir), 1/4" Discharge Size, 5/8" Suction Size, 15 W
RectorSeal Maxi Lime ASPMAXLF230 Condensate Pump Kit w/ Fortress Duct, 49' Maximum Feet Of Head, 208/230 V, 0.15 GPM (0' Head), 0.05 GPM (49' Head), Remote Mount (Above Ceiling/Inside Lineset Cover), Pan Mount, In-Line (Reservoir), 1/4" Discharge Size, 5/8" Suction Size, 15 W
| Amperage Rating | : | 0.1 A; 3 A (Dry Contacts NC) |
| Color | : | Lime Green (Pump), White (Duct Cover) |
| Cord Size | : | 6 ' |
| Dimensions | : | 3-3/4" L x 3-3/8" H x 1-5/8" W |
| Discharge Size | : | 1/4 " |
| Flow Rate | : | 0.15 GPM (0' Head), 0.05 GPM (49' Head) |
| Housing Material | : | ABS |
| Maximum Feet of Head | : | 49 ' |
| Model | : | ASPMAXLF230 |
| Mounting Type | : | Remote Mount (Above Ceiling/Inside Lineset Cover), Pan Mount, In-Line (Reservoir) |
| Operating Temperature | : | 104 °F (Water) |
| Phase | : | 1 |
| Power Rating | : | 15 W |
| Series | : | Maxi Lime |
| Suction Size | : | 5/8 " |
| Voltage Rating | : | 208/230 V |

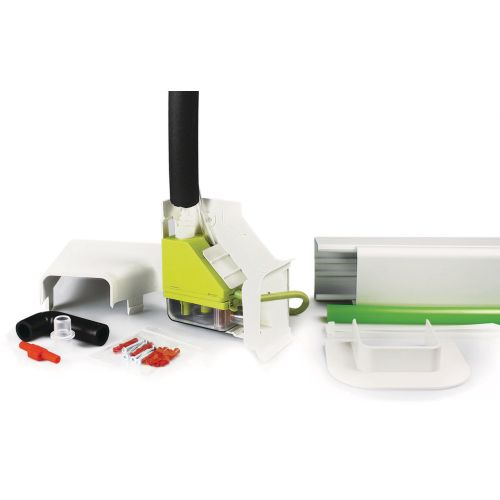

Maxi Lime Pumps are designed with both the pump and reservoir as one integral unit, sharing a common body. No connecting tubes or wires are needed. The pumps clip directly onto the reservoir for minimal suction lift. Lineset cover is included.This pump kit is specifically designed for removing condensate water from ductless mini-split air conditioning systems up to 157,000 BTU/hr. The integrated pump and reservoir mount outside the evaporator and clip directly onto the reservoir, simplifying installation and maintenance access.
RectorSeal Condensate Pump Kit w/ Fortress Duct, Model: Maxi Lime, 49' Maximum Feet Of Head, 208/230 V, 0.15 GPM (0' Head), 0.05 GPM (49' Head), Remote Mount (Above Ceiling/Inside Lineset Cover), Pan Mount, In-Line (Reservoir), 1/4" Discharge Size, 5/8" Suction Size, 15 W, ≤104 °F (Water) Operating Temperature, 1 Phase, 0.1 A; 3 A (Dry Contacts NC), 6' Cord Length, 3-3/4" L x 3-3/8" H x 1-5/8" W Dimensions, ABS, Lime Green (Pump), White (Duct Cover)
- Designed for ductless mini-split systems up to 157,000 BTU/hr.
- Integrated pump and reservoir unit clips together, minimizing suction lift.
- Reversible design allows for left or right installation, includes Fortress lineset cover.
- Fully potted electronics ensure quiet operation (35 dB(A)) and resist moisture, shock, and vibration.
- Features 3A Normally Closed dry contacts rated @ 5A inductive at 230V AC for overflow safety.
- Delivers a maximum head lift of 49 feet.
- Transparent reservoir simplifies filter inspection and maintenance access.
