Packard TFM556 Torsion Flex Motor Mounting Bracket, Torsion Flex, 10 1/4 Inches Or 9 1/8 Inches Bolt Circle Diameter, 4-7/8" Diam & 5-1/16" Diam (Motor Shells / NEMA 42 Frame / NEMA 48 Frame) Size, Steel (Washers), Plastic (Inserts), Import
Packard TFM556 Torsion Flex Motor Mounting Bracket, Torsion Flex, 10 1/4 Inches Or 9 1/8 Inches Bolt Circle Diameter, 4-7/8" Diam & 5-1/16" Diam (Motor Shells / NEMA 42 Frame / NEMA 48 Frame) Size, Steel (Washers), Plastic (Inserts), Import
Packard TFM556 Torsion Flex Motor Mounting Bracket, Torsion Flex, 10 1/4 Inches Or 9 1/8 Inches Bolt Circle Diameter, 4-7/8" Diam & 5-1/16" Diam (Motor Shells / NEMA 42 Frame / NEMA 48 Frame) Size, Steel (Washers), Plastic (Inserts), Import

Packard TFM556 Torsion Flex Motor Mounting Bracket, Torsion Flex, 10 1/4 Inches Or 9 1/8 Inches Bolt Circle Diameter, 4-7/8" Diam & 5-1/16" Diam (Motor Shells / NEMA 42 Frame / NEMA 48 Frame) Size, Steel (Washers), Plastic (Inserts), Import

Packard TFM556 Torsion Flex Motor Mounting Bracket, Torsion Flex, 10 1/4 Inches Or 9 1/8 Inches Bolt Circle Diameter, 4-7/8" Diam & 5-1/16" Diam (Motor Shells / NEMA 42 Frame / NEMA 48 Frame) Size, Steel (Washers), Plastic (Inserts), Import

Manufacturer: DiversiTech Corporation
Brand: Packard
Part #: 390038
MPN: TFM556
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Bolt Circle Diameter      :      10 1/4 inches or 9 1/8 inches
Domestic/Import      :      Import
Material      :      Steel (Washers), Plastic (Inserts)
Model      :      TFM556
Mounting Type      :      Torsion Flex
Size      :      4-7/8" Diam & 5-1/16" Diam (Motor Shells / NEMA 42 Frame / NEMA 48 Frame)
Suitable For Use With      :      Motors (4 7/8" or 5 1/16" Diameter Shells); NEMA 42 Frame Motors; Motors (5" or 5.5" Diameter); NEMA 48 Frame Motors

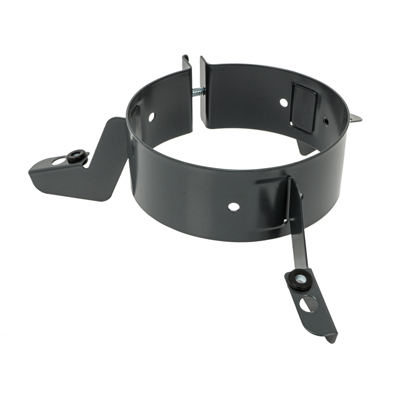

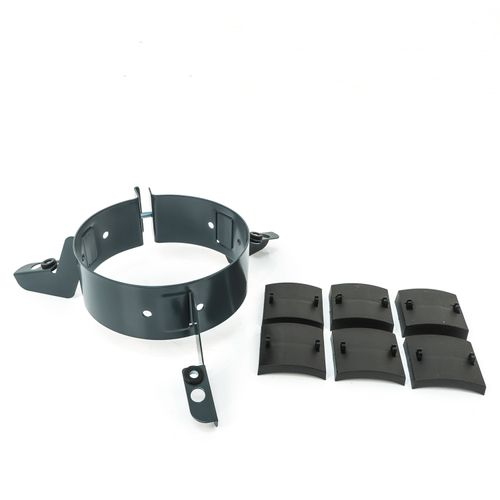

Designed to effectively isolate and prevent torsional vibrations from reaching the blower housing and causing noise. This bracket includes two sets of inserts, allowing adjustments for 4 7/8" and 5 1/16" diameter motor shells. It offers a choice of 10 1/4" or 9 1/8" bolt circles and comes complete with 3 grommets, 1 bolt, 1 nut, and 3 steel washers for installation.

Packard Torsion Flex Motor Mounting Bracket, Torsion Flex, 10 1/4 Inches Or 9 1/8 Inches Bolt Circle Diameter, 4-7/8" Diam & 5-1/16" Diam (Motor Shells / NEMA 42 Frame / NEMA 48 Frame) Size, Steel (Washers), Plastic (Inserts), Import

  • Designed to isolate torsional vibrations and reduce noise in blower housings.
  • Features adjustable plastic inserts to fit motor shells with 4 7/8" or 5 1/16" diameters (compatible with 5" and 5.5" motors).
  • Offers a choice of 9 1/8" or 10 1/4" bolt circle diameters for flexible mounting.
  • Requires no preassembly and clamps directly onto the motor shell for easy installation.
  • Includes necessary mounting hardware: 3 grommets, 1 bolt, 1 nut, and 3 steel washers.
  • Adapts to NEMA 42 frame motors.
  • Compatible With: A direct replacement for AllTemp 92-A8617, Mars 08049, and Smart Electric 84062.
