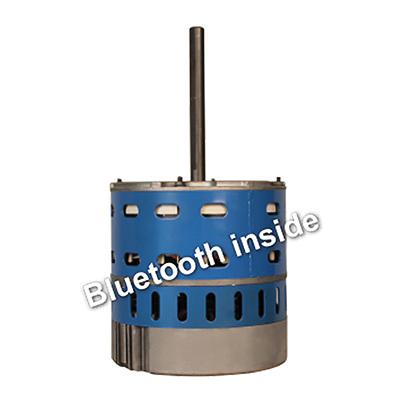

Mars® Azure® ECM 10859 ECM Motor, 1/2 to 1 hp, 120/240 V, 50/60 Hz, 1 ph -Phase, 48 Frame
Mars® Azure® ECM 10859 ECM Motor, 1/2 to 1 hp, 120/240 V, 50/60 Hz, 1 ph -Phase, 48 Frame
| Additional Information | : | Forward, Reversible Rotation |
| Bearing Type | : | Ball |
| Enclosure Type | : | Open Air Over |
| Frame | : | 48 |
| Frequency Rating | : | 50/60 Hz |
| HP Rating | : | 1/2 to 1 hp |
| Insulation Class | : | Class B |
| Mounting Type | : | Belly Band |
| Number of Speeds | : | 5 |
| Phase | : | 1 ph |
| Shaft Size | : | 1/2 in Dia x 4.94 in L |
| Temperature Rating | : | -4 to 131 deg F |
| Voltage Rating | : | 120/240 V |
The latest generation of Azure® ECM features integrated Bluetooth control for use with the Azure® ECM smartphone app. While not required for the installation of these motors, the app allows the installer to take full advantage of the ECM technology. While competitive aftermarket ECMs provide only 5 speed taps for setting airflow, the Bluetooth Azure® motors provide more than 50 speed selections and the ability to autosize to the ductwork all with a keystroke or two in the app.
Mars® Azure® ECM ECM Motor, 1/2 to 1 hp, 120/240 V, 50/60 Hz, 1 ph, 5 Speed, Open Air Over Enclosure, 48 Frame, 1/2 in Dia x 4.94 in L Shaft, Ball, Belly Band Mount, -4 to 131 deg F, Class B, Forward, Reversible Rotation
- Four speeds plus 625 rpm constant fan mode
- High efficiency 85%
- Multi-horsepower, dual voltage
- Belly band-mount
- Thermal overload protected
