| Amperage Rating | : | 4.2 A |
| Bearing Type | : | Ball |

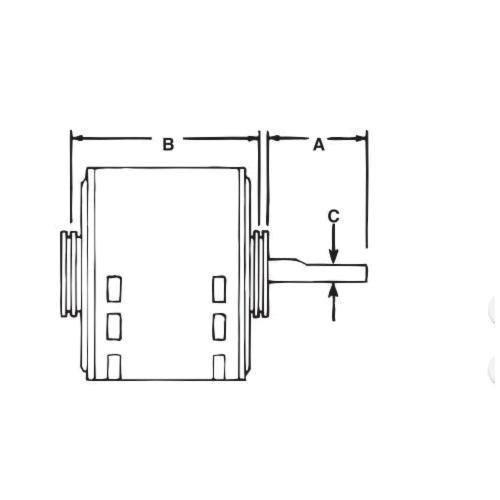

| Dimensions | : | 5-1/2 in Dia |
| Frame Size | : | 48 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/5 to 3/4 hp |
| Insulation Class | : | B |
| Motor Enclosure Type | : | Open |
| Mounting Type | : | Angle |
| Number of Speeds | : | 4 |
| Phase | : | 1 ph |
| Rotation Type | : | Reversible |
| Shaft Size | : | 0.5 in Dia x 5.6 in L |
| Speed Rating | : | 1075 rpm |
| Temperature Rating | : | 60 deg C |
| Voltage Rating | : | 208/230 VAC |

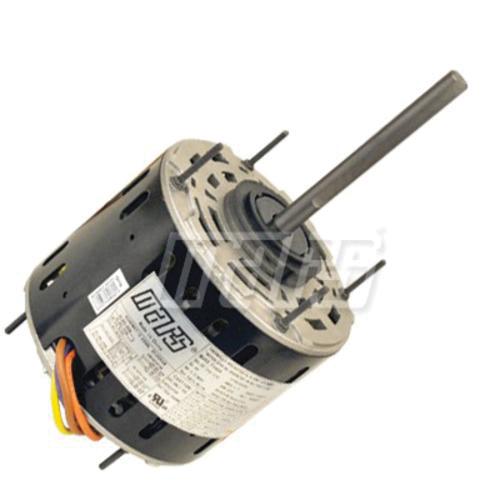

Mars® multi-horsepower direct-drive blower motors are ideal for truck stock. Four models cover both 115 V and 208 to 230 V applications from 1/6 through 3/4 hp. All Mars® multi-horsepower motors feature Rheem® shell mounting holes.
Mars® Direct Drive Furnace Blower Motor, 208/230 VAC, 4.2 A, 1/5 to 3/4 hp, 1075 rpm, 1 ph Phase, 60 Hz, Open Motor Enclosure, 48 Frame, 0.5 in Dia x 5.6 in L Shaft, Reversible Rotation, 4 Speed, Ball Bearing, Angle Mounting, B Insulation Class, 60 deg C, 5-1/2 in Dia
- 20/10/370 capacitor rating
- Comes with auto thermal protection
