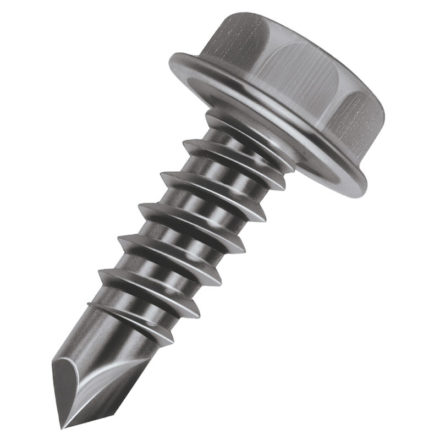

Malco Bit-Tip BT143T Drill & Tap Screw, #10-16, 3/4" Overall Length, Self-Drilling / Self-Tapping, Hex, 5/16" Drive Size, Hex Washer, 5/16" Head Size
Malco Bit-Tip BT143T Drill & Tap Screw, #10-16, 3/4" Overall Length, Self-Drilling / Self-Tapping, Hex, 5/16" Drive Size, Hex Washer, 5/16" Head Size
| Drive Size | : | 5/16 " |
| Drive Type | : | Hex |
| Finish | : | Zinc Plated, Heat Treated |
| Head Size | : | 5/16 " |
| Head Type | : | Hex Washer |
| Material | : | Steel |
| Model | : | BT143T |
| Overall Length | : | 3/4 " |
| Point Size | : | #2 |
| Point Type | : | Self-Drilling |
| Series | : | Bit-Tip |
| Thread Length | : | 3/4 " |
| Thread Size | : | #10-16 |
| Thread Type | : | Self-Drilling / Self-Tapping |
By drilling its own hole, Bit-Tip® Drill and Tap Screws produces the optimum hole size, resulting in better thread engagement and a tighter fit. One operation fastening also means no alignment problems.Bit-Tip® has a wide range of industry applications. Select the Bit-Tip® that’s right for the job. Point length will determine metal thickness that can be drilled, tapped and fastened. Also, plywood, soft wood, composition board, drywall, insulation and laminates may be fastened to metal framing or components.Made from strong, high quality, specially heat treated steel. Bit-Tip® Self Drilling and Tapping Screws are precision cold forged insuring uniformity of dimension and drill point contours.The versatile Bit-Tip® Screw is an excellent replacement for fastening operations now using rivets, nuts and bolts, spot welds or adhesives. Bit-Tip® also eliminates the need for costly auxiliary fastening equipment such as drill bits, taps and welding equipment.Requires only a standard screw gun power tool rated at 2500 RPM equipped with drilling depth locator.
Malco Drill & Tap Screw, Model: Bit-Tip, #10-16, 3/4" Overall Length, Self-Drilling / Self-Tapping, Hex, 5/16" Drive Size, Hex Washer, 5/16" Head Size, Steel, Zinc Plated, Heat Treated, 3/4" Thread Length
- Drills its own hole and taps a matching thread for optimal hole size, better engagement, and a tighter fit.
- Precision cold-forged from high-quality, specially heat-treated steel for strength and uniformity.
- Eliminates the need for pre-drilling, tapping, or separate fastening equipment like rivets, bolts, or welds.

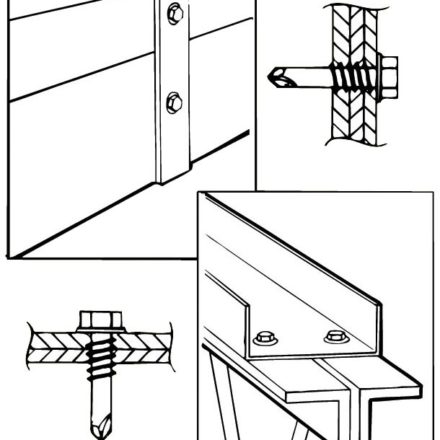

- Designed for fastening various materials like wood, composition board, or insulation to metal framing.
- Features patented head markings for identifying genuine Malco Bit-Tip® screws.
- Suitable for fastening metal from 0.110" to 0.175" thick.
- Requires a standard 2500 RPM screw gun with a depth locator for installation.
