JB Industries ACCELERATOR VL-200 Rapid Evacuation Kit, SAE Female Swivel, 3/8" x 1/4" SAE Connection Size, A2L Compatible, 48" (Hose), 14" (Overall Kit) Length, 2 Hoses, 640 PSI (Working Pressure), 3,200 PSI (Burst Pressure), Straight Angle
JB Industries ACCELERATOR VL-200 Rapid Evacuation Kit, SAE Female Swivel, 3/8" x 1/4" SAE Connection Size, A2L Compatible, 48" (Hose), 14" (Overall Kit) Length, 2 Hoses, 640 PSI (Working Pressure), 3,200 PSI (Burst Pressure), Straight Angle
| Angle | : | Straight |
| Color | : | Black (Hose) |
| Connection Size | : | 3/8" x 1/4" SAE |
| Connection Type | : | SAE Female Swivel |
| Dimensions | : | 14 in L x 17-1/2 in W x 4 in H |
| Fitting Size | : | 3/8" x 1/4" |
| Height | : | 4 " |
| Length | : | 48" (Hose), 14" (Overall Kit) |
| Model | : | VL-200 |
| Number of Hoses | : | 2 |
| Pressure Rating | : | 640 PSI (Working Pressure), 3,200 PSI (Burst Pressure) |
| Refrigerant Type | : | A2L Compatible |
| Series | : | ACCELERATOR |
| Suitable For Use With | : | Vacuum Pumps: Model JB; Evacuation and Recovery; A2L Refrigerants |
| Width | : | 17-1/2 " |

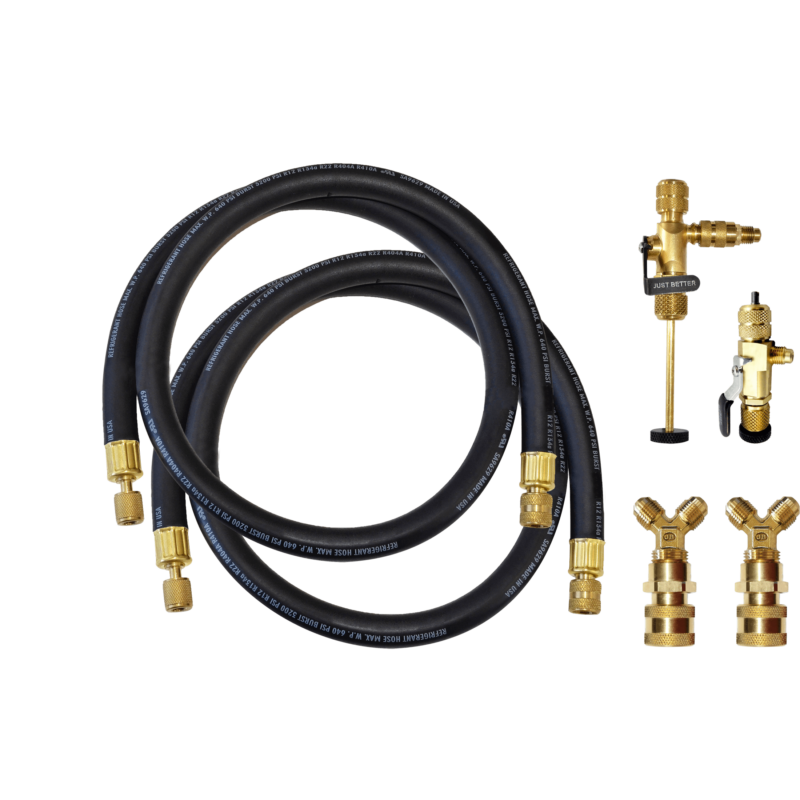

The VL-200 ACCELERATOR Rapid Evacuation Kit, when used with a JB vacuum pump, enables technicians to remove restrictive valve cores and achieve HVAC/R system evacuations up to 20 times faster. This kit is vacuum rated to 20 microns and features hoses that will not collapse or permeate, ensuring a reliable and efficient evacuation process. The design also allows for easy attachment and protection of a vacuum gauge via the slide valve side port.
JB Industries Rapid Evacuation Kit, Model: ACCELERATOR, SAE Female Swivel, 3/8" x 1/4" SAE Connection Size, A2L Compatible, 48" (Hose), 14" (Overall Kit) Length, 2 Hoses, 640 PSI (Working Pressure), 3,200 PSI (Burst Pressure), Straight Angle, Black (Hose), 4" Height, 17-1/2" Width
- Achieves up to 20x faster evacuations when used with a JB vacuum pump, saving time on system maintenance.
- Vacuum-rated to 20 microns, ensuring a deep and thorough system evacuation.
- Opens over 90% of the internal diameter of the access port, maximizing flow and evacuation efficiency.
- Includes vacuum-certified hoses that resist collapse and prevent refrigerant permeation.

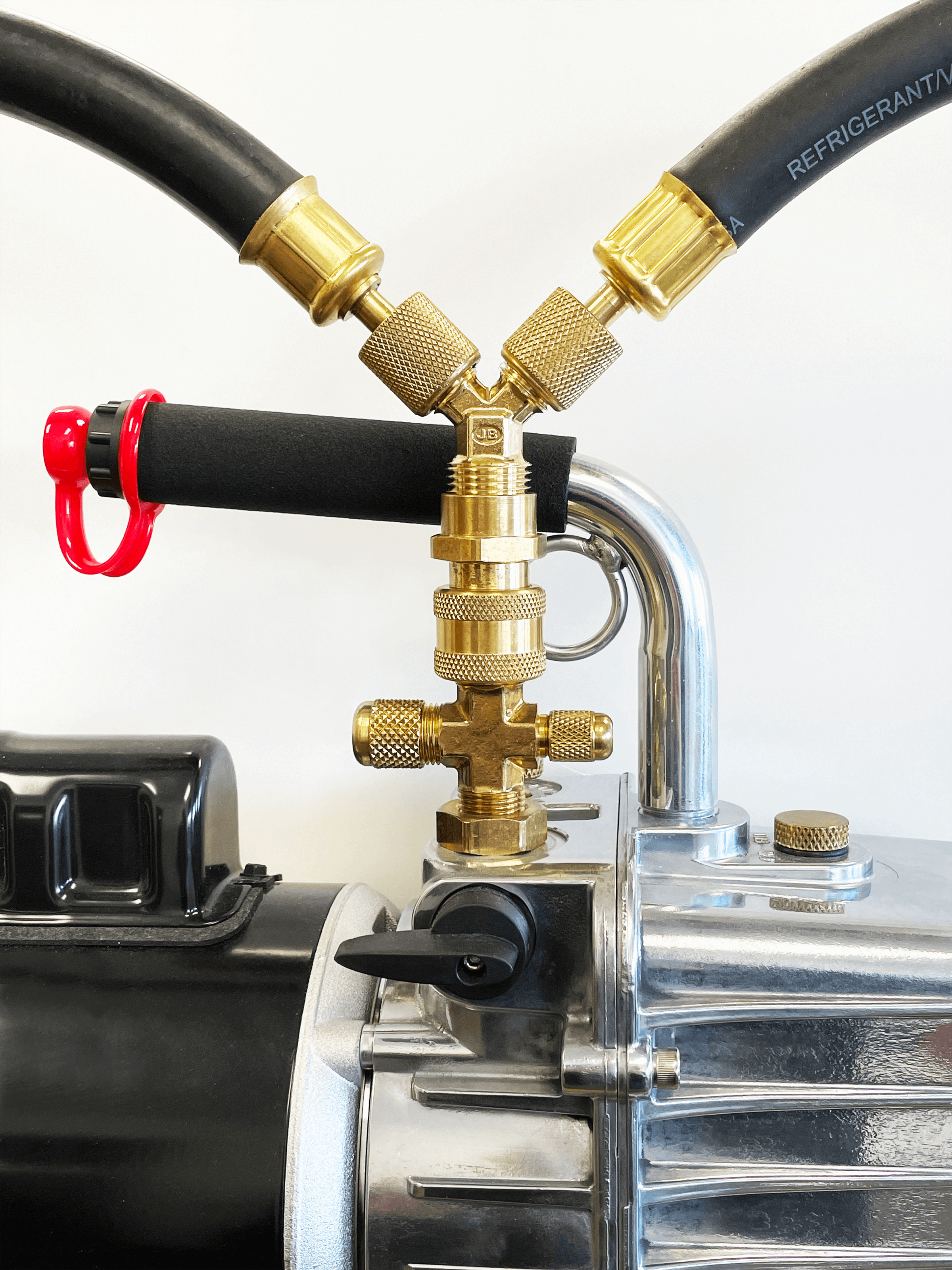

- Features a Y-FORCE dual, high-speed coupler connector to further accelerate the evacuation process.
- Equipped with a slide valve side port for easy and protected vacuum gauge attachment.
- Includes valve core removal tools to eliminate restrictions during evacuation.
- Compatible with JB vacuum pumps for optimal performance.
