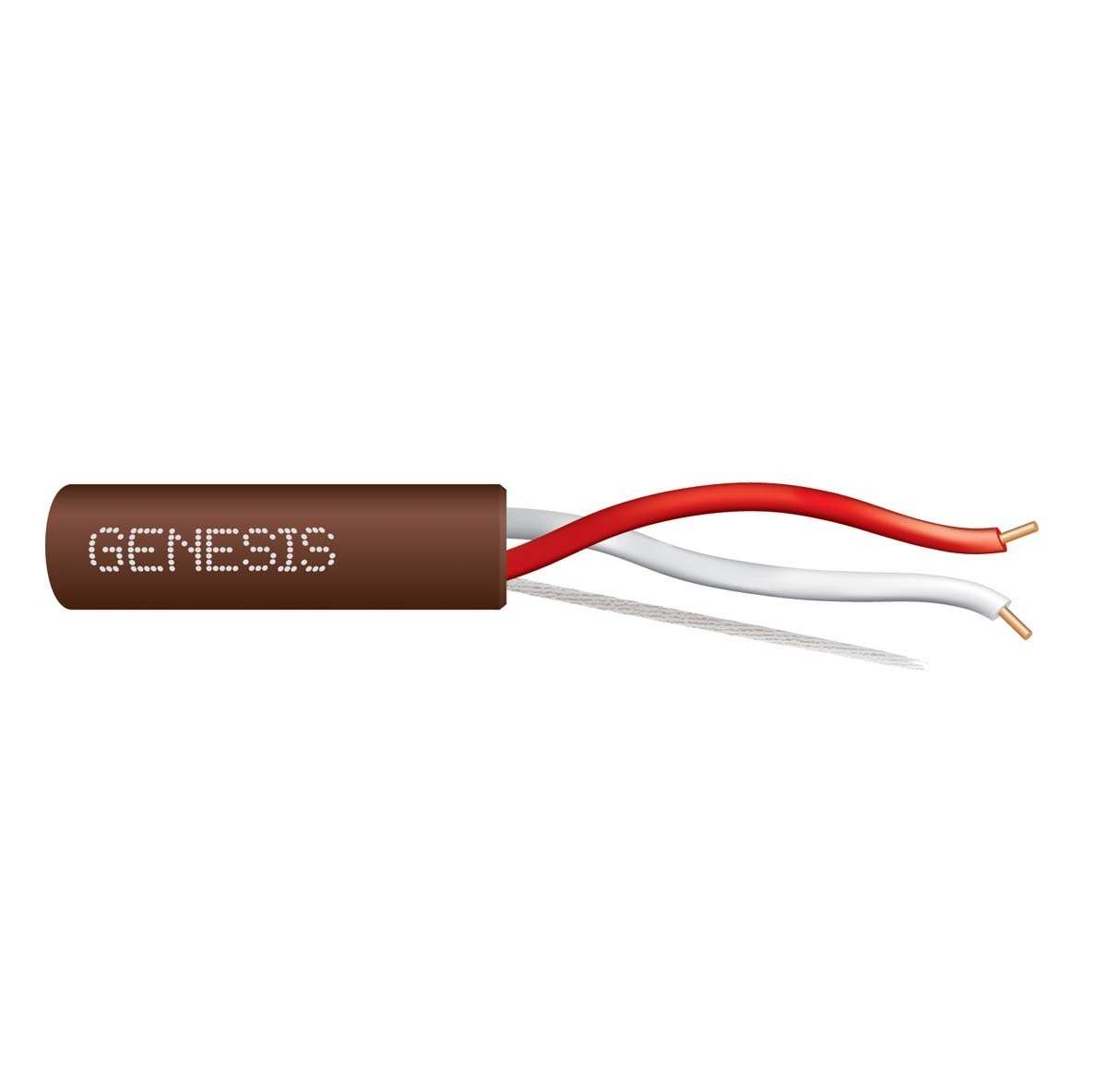

Resideo Genesis 47104807 Thermostat Cable, 18 AWG, 2 Conductors, 500' Length, Solid, Bare Copper, 150 V, -4-140 °F
Resideo Genesis 47104807 Thermostat Cable, 18 AWG, 2 Conductors, 500' Length, Solid, Bare Copper, 150 V, -4-140 °F
| Capacitance | : | 22.8 pF/ft |
| Conductor Material | : | Bare Copper |
| Conductor Size | : | 18 AWG |
| Conductor Type | : | Solid |
| End Type | : | Bare Wire |
| Impedance | : | 100 Ohms |
| Insulation Color | : | Red, White, Green, Blue, Yellow |
| Insulation Material | : | Polypropylene |
| Insulation Thickness | : | 0.006 " |
| Jacket Color | : | Brown |
| Jacket Material | : | PVC |
| Jacket Thickness | : | 0.015 " |
| Lay Length | : | 24 " |
| Length | : | 500 ' |
| Number of Conductors | : | 2 |
| Outside Diameter | : | 0.136 " |
| Package Type | : | Reel |
| Resistance | : | 6.52 Ohms (Per 1000 Ft @ 20°C) |
| Series | : | Genesis |
| Solid/Stranded | : | Solid |
| Temperature Rating | : | -4-140 °F |
| Voltage Rating | : | 150 V |
This Genesis Series thermostat cable is designed for wiring thermostat controls, heating and air conditioning equipment, doorbells, and other low-voltage applications. It features two 18 AWG solid bare copper conductors with polypropylene insulation and a durable brown PVC jacket. The cable is CL2 rated, sunlight resistant, and includes sequential footage markings and a ripcord for easier installation.
Resideo Thermostat Cable, Model: Genesis, 18 AWG, 2 Conductors, 500' Length, Solid, Bare Copper, 150 V, -4-140 °F, Polypropylene Insulation, PVC Jacket, 0.015" (Nominal) Jacket Thickness, 0.006" (Nominal) Insulation Thickness, Bare Wire, Brown, Red, White, Green, Blue, Yellow Insulation Color, 0.136" (Nominal) Outside Diameter, 24" Lay Length, Reel, Solid Conductor, 6.52 Ohms (Per 1000 Ft @ 20°C), 100 Ohms (Nominal), 22.8 Pf/Ft
- Features two 18 AWG solid bare copper conductors.
- Durable brown PVC jacket provides protection and is sunlight resistant.
- Polypropylene insulation strips easily and cleanly for faster termination.
- CL2 rated for general purpose, power-limited circuit installations (excluding risers and plenums).
- Sequential footage markings and integrated ripcord simplify handling and jacket removal.
- Rated for 150V maximum operating voltage.
- Supplied in a convenient 500 ft reel.
- ETL Listed and RoHS Compliant.
