General Electric RealMAX Choice GG40S08BXR Short Natural Gas Water Heater, 40 Gallons Capacity, 38,000 BTU/hr, Natural Gas, 78 GPH First Hour Delivery, 39.5 GPH Recovery Rate, 0.64 UEF, No Energy Star Compliant
General Electric RealMAX Choice GG40S08BXR Short Natural Gas Water Heater, 40 Gallons Capacity, 38,000 BTU/hr, Natural Gas, 78 GPH First Hour Delivery, 39.5 GPH Recovery Rate, 0.64 UEF, No Energy Star Compliant
| Additional Information | : | Magnesium Anode Rod, High Bin Testing, LED Indicator Controls, Gas Valve Self Powered, 0.64 UEF, 3/4 x 3/4 in Connection |
| Altitude | : | 10,100 ' |
| BTU Rating | : | 38,000 BTU/hr |
| Capacity | : | 40 gallons |
| Color | : | Gray |
| Connection Type | : | 3/4" MNPT (Water Inlet/Outlet), 1/2" (Gas Connection) |
| Dimensions | : | 52-1/4" H x 22" W x 22" D |
| Domestic/Import | : | Domestic |
| Efficiency | : | 64% (UEF), 78% (Recovery Efficiency) |
| Energy Factor | : | 0.64 UEF |
| Energy Star Compliant | : | No |
| First Hour Delivery | : | 78 GPH |
| Fuel Type | : | Natural Gas |
| Ignition System | : | Standing Pilot |
| Ignition Type | : | Standing Pilot |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material | : | Steel (Tank), Magnesium (Anode Rod) |
| Model | : | GG40S08BXR |
| Mounting Type | : | Floor Mount |
| Recovery Efficiency | : | 78 % |
| Recovery Rate | : | 39.5 GPH |
| Series | : | RealMAX Choice |
| Temperature Rating | : | 45-160 °F (Adjustable Setting) |
| Vent Diameter | : | 3 " |
| Vent Size | : | 3 " |
| Vent Type | : | Atmospheric |

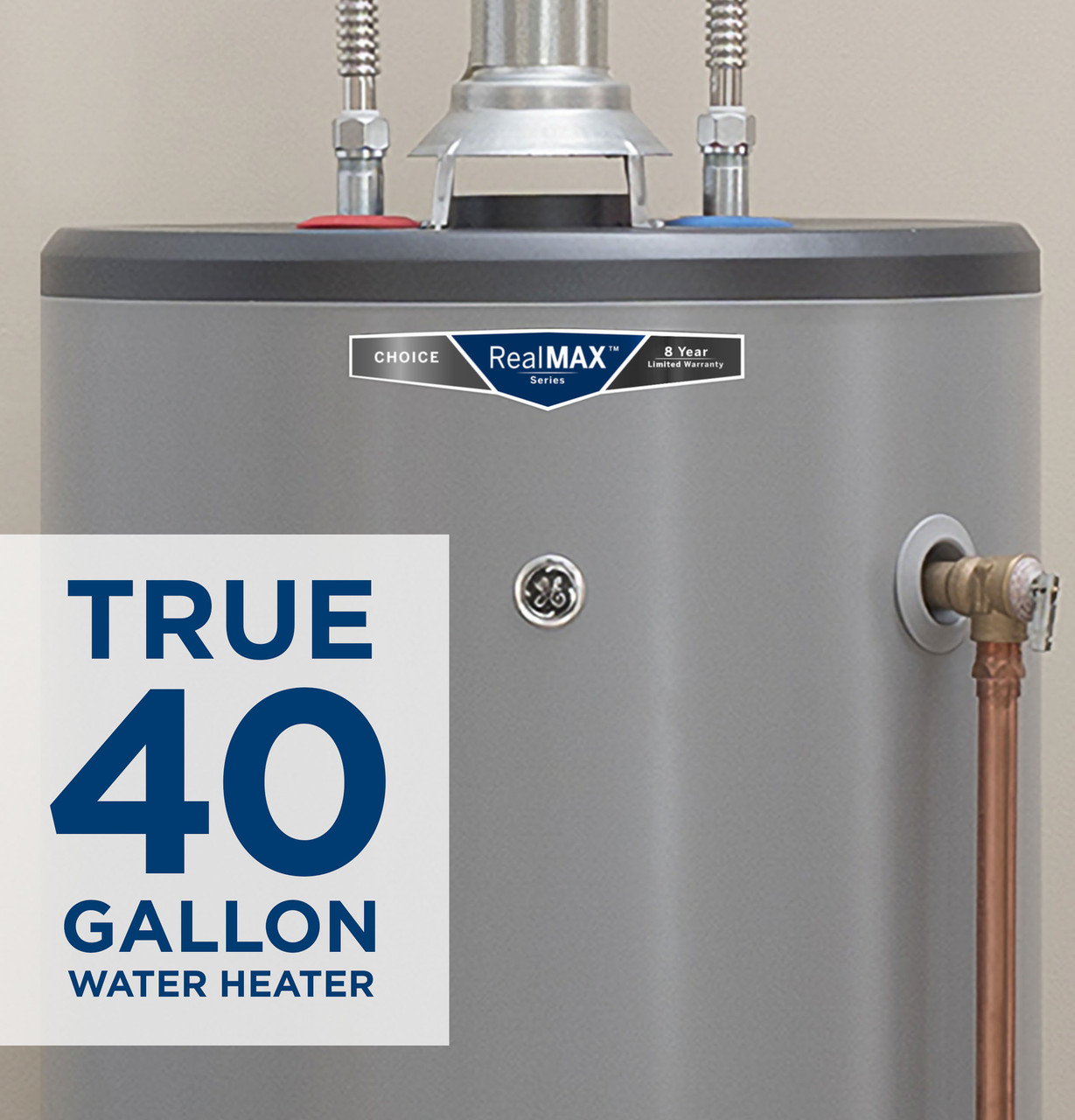

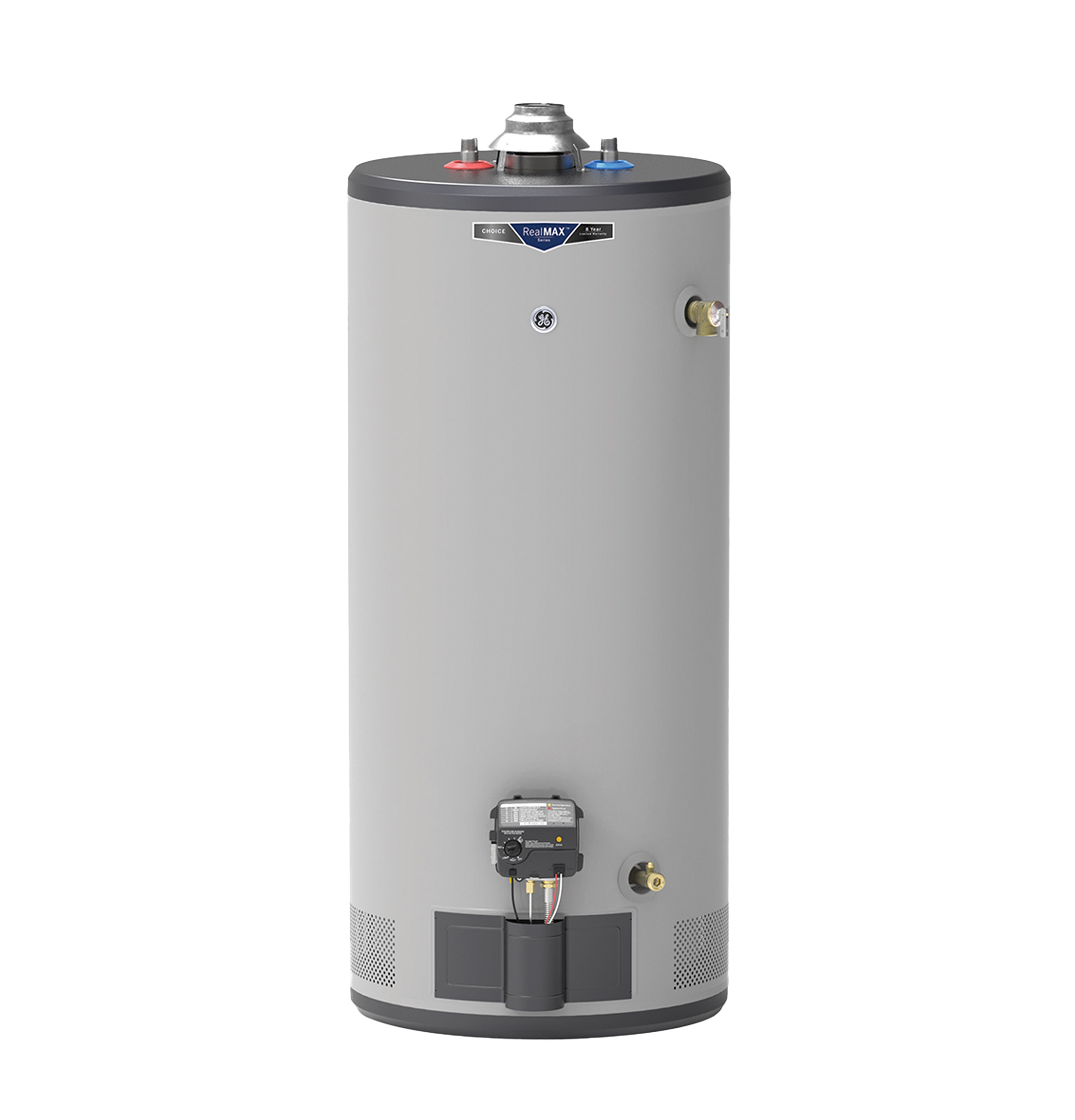

The GE RealMAX Choice GG40S08BXR is a short-profile natural gas water heater offering a true 40-gallon capacity, suitable for households of 2 to 5 people. Its 38,000 BTU burner ensures quick recovery, delivering up to 78 gallons of hot water in the first hour (FHR). Standard gas and water connections combined with atmospheric venting allow for easy replacement installations.Designed for longevity and safety, the unit features a durable anode rod for corrosion protection and a rust-proof drain valve. Safety is enhanced by the SmartShieldâ„¢ system, which monitors surrounding air for abnormal temperatures, and an FVIR system to prevent flammable vapor ignition. Additionally, a self-diagnostic LED indicator reports on the gas system status.
General Electric Short Natural Gas Water Heater, Model: RealMAX Choice, 40 Gallons Capacity, 38,000 BTU/hr, Natural Gas, 78 GPH First Hour Delivery, 39.5 GPH Recovery Rate, 0.64 UEF, No Energy Star Compliant, Atmospheric Vent Type, 3" Vent Size, 3/4" MNPT (Water Inlet/Outlet), 1/2" (Gas Connection), 52-1/4" H x 22" W x 22" D Dimensions, Floor Mount, 45-160 °F (Adjustable Setting), Standing Pilot, Steel (Tank), Magnesium (Anode Rod), 10,100' Altitude, 0.78 Recovery Efficiency, Domestic, Lead-Free, Gray
- True 40-gallon capacity ensures ample hot water supply.
- Provides quick recovery with a 38,000 BTU natural gas burner, delivering 78 GPH first hour rating.
- Short configuration (52.25" overall height) allows for installation in spaces with height restrictions.
- Features SmartShieldâ„¢ and FVIR safety systems for enhanced protection.
- Self-diagnostic LED indicator monitors gas system status.

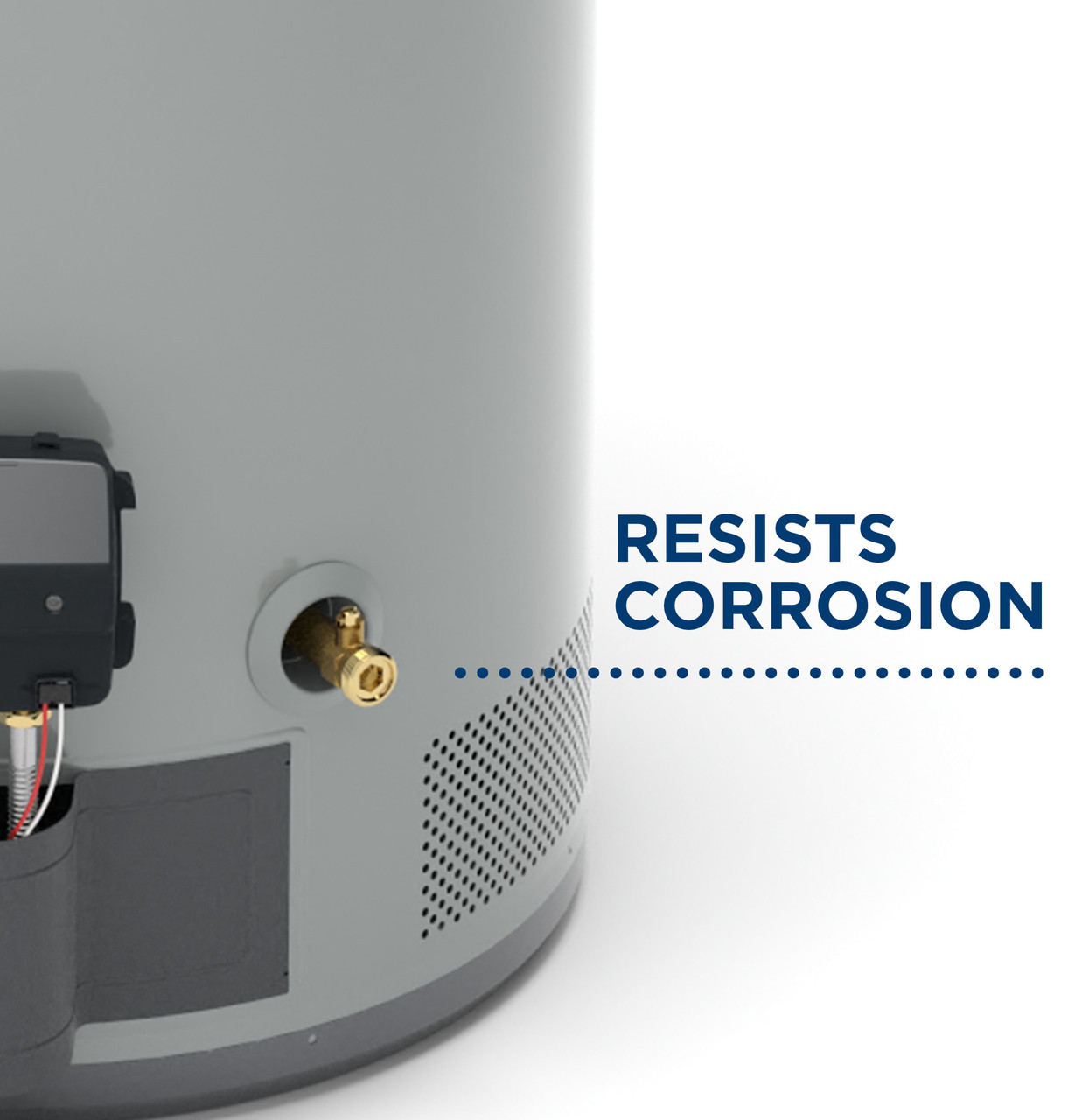

- Includes a durable magnesium anode rod and rust-proof drain valve for extended tank life.
- UL Listed and certified to NSF/ANSI 372 for lead-free compliance.
- Covered by an 8-year limited tank and parts warranty.
