General Electric GE40S10BAM Short Electric Water Heater, 40 Gallons, 240 V, 5,500 W (Upper), 5,500 W (Lower), 0.92 UEF, 66 Gallons First Hour Delivery, 25.1 GPH (At 90°F Rise), 2 Elements
General Electric GE40S10BAM Short Electric Water Heater, 40 Gallons, 240 V, 5,500 W (Upper), 5,500 W (Lower), 0.92 UEF, 66 Gallons First Hour Delivery, 25.1 GPH (At 90°F Rise), 2 Elements
| Additional Information | : | 121 lb Weight |
| Amperage Rating | : | 30 A (MCA) |
| Capacity | : | 40 gallons |
| Color | : | Gray |
| Connection Size | : | 3/4" MNPT (Water Inlet/Outlet) |
| Connection Type | : | MNPT |
| Dimensions | : | 22" Diam x 52-7/8" H |
| Efficiency | : | 92% (UEF) |
| Element Material | : | Stainless Steel |
| Element Type | : | Low Density Stainless Steel |
| Element Wattage | : | 5.5 kW (Upper), 5.5 kW (Lower) |
| Energy Factor | : | 0.92 UEF |
| Finish | : | Gray |
| First Hour Delivery | : | 66 gallons |
| Frequency Rating | : | 60 Hz |
| Fuse Size | : | 30 A (MCA) |
| Fuse Type | : | Circuit Breaker |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material | : | Stainless Steel (Heating Element), Brass (Drain Valve) |
| Model | : | GE40S10BAM |
| Mounting Type | : | Floor Mount |
| Number of Elements | : | 2 |
| Power Rating | : | 5,500 W (Upper), 5,500 W (Lower) |
| Pressure Rating | : | 20-125 PSI (Operating) |
| Recovery Rate | : | 25.1 GPH (At 90°F Rise) |
| Temperature Rating | : | 90-150 °F (Adjustable Setting) |
| Thermostat Type | : | Adjustable |
| Voltage (MAX) | : | 240.0 |
| Voltage Rating | : | 240 V |
| Wiring Type | : | Direct Wire |
Get the most hot showers from the only water heater that holds a true 40 gallons of water (Compared to 40 gallon electric steel tank water heaters per DOE rated gallon capacity). Live comfortably with this best in class unit that delivers 66 gallons of hot water in the first hour (Measured through DOE First Hour Rating).Designed for households of 2 to 4 people, this water heater features two 5500W heating elements for quick recovery. The ultra-durable stainless-steel heating elements resist rust and corrosion, while the inlet tube replenishes water from the bottom of the tank to maximize hot water delivery. A rust-proof brass drain valve ensures long-lasting service, and standard connections allow for easy replacement of your old unit. An adjustable thermostat lets you set the temperature between 90-150° F.
General Electric Short Electric Water Heater, 40 Gallons, 240 V, 5,500 W (Upper), 5,500 W (Lower), 0.92 UEF, 66 Gallons First Hour Delivery, 25.1 GPH (At 90°F Rise), 2 Elements, Low Density Stainless Steel Element Type, Stainless Steel, Adjustable Thermostat, 90-150 °F (Adjustable Setting), MNPT Connection Type, 3/4" MNPT (Water Inlet/Outlet), Floor Mount, 22" Diam x 52-7/8" H Dimensions, 20-125 PSI (Operating), Direct Wire, 30 A (MCA), Circuit Breaker, Lead-Free, Stainless Steel (Heating Element), Brass (Drain Valve), Gray, 60 Hz
- Provides a true 40-gallon capacity for reliable hot water supply.
- Delivers a leading 66 gallons of hot water in the first hour (FHR).
- Features dual 5500W low-density stainless steel heating elements for rapid recovery and corrosion resistance.

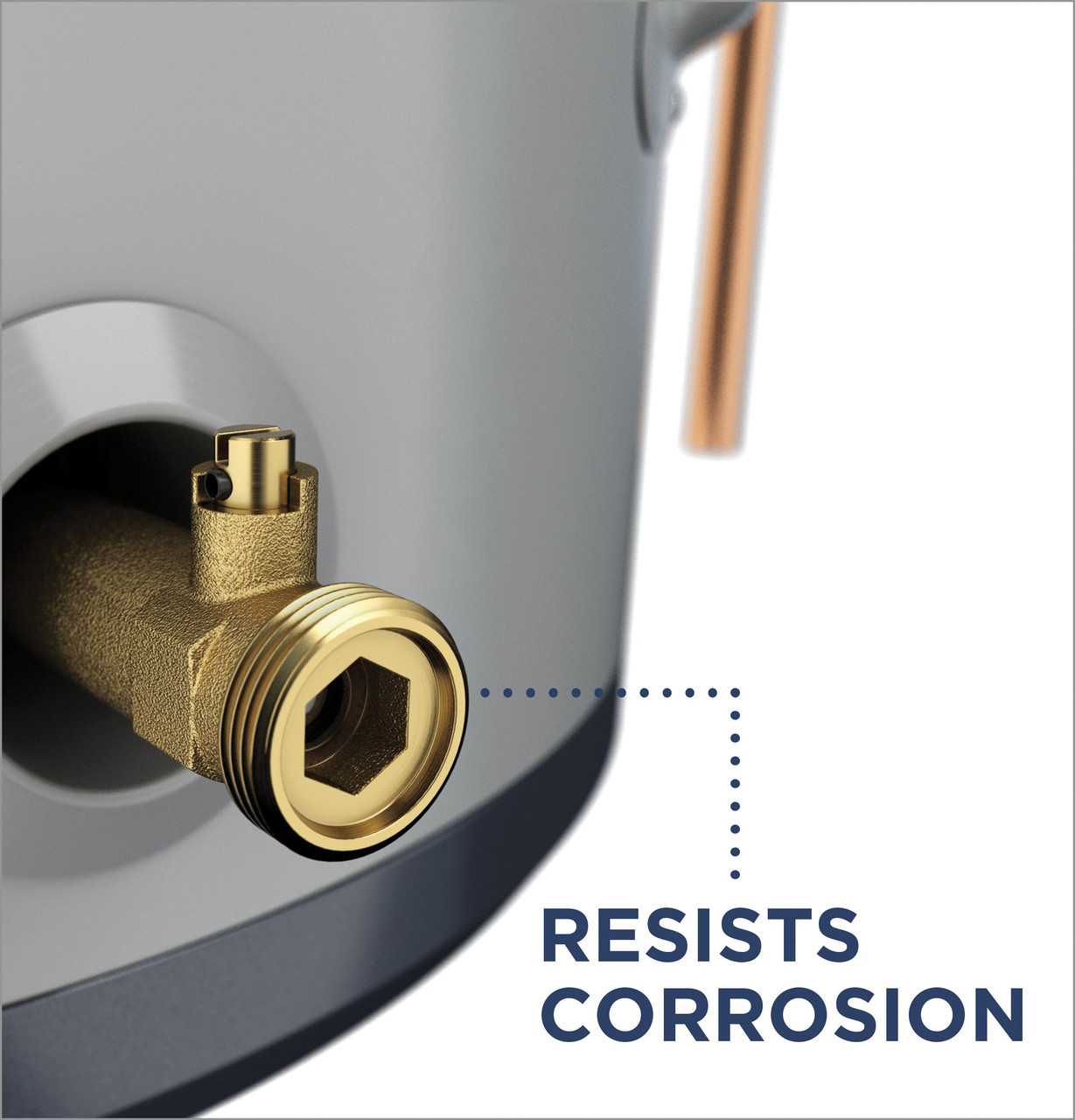

- Equipped with a durable, rust-proof brass drain valve.
- Adjustable thermostat allows precise temperature control between 90°F and 150°F.

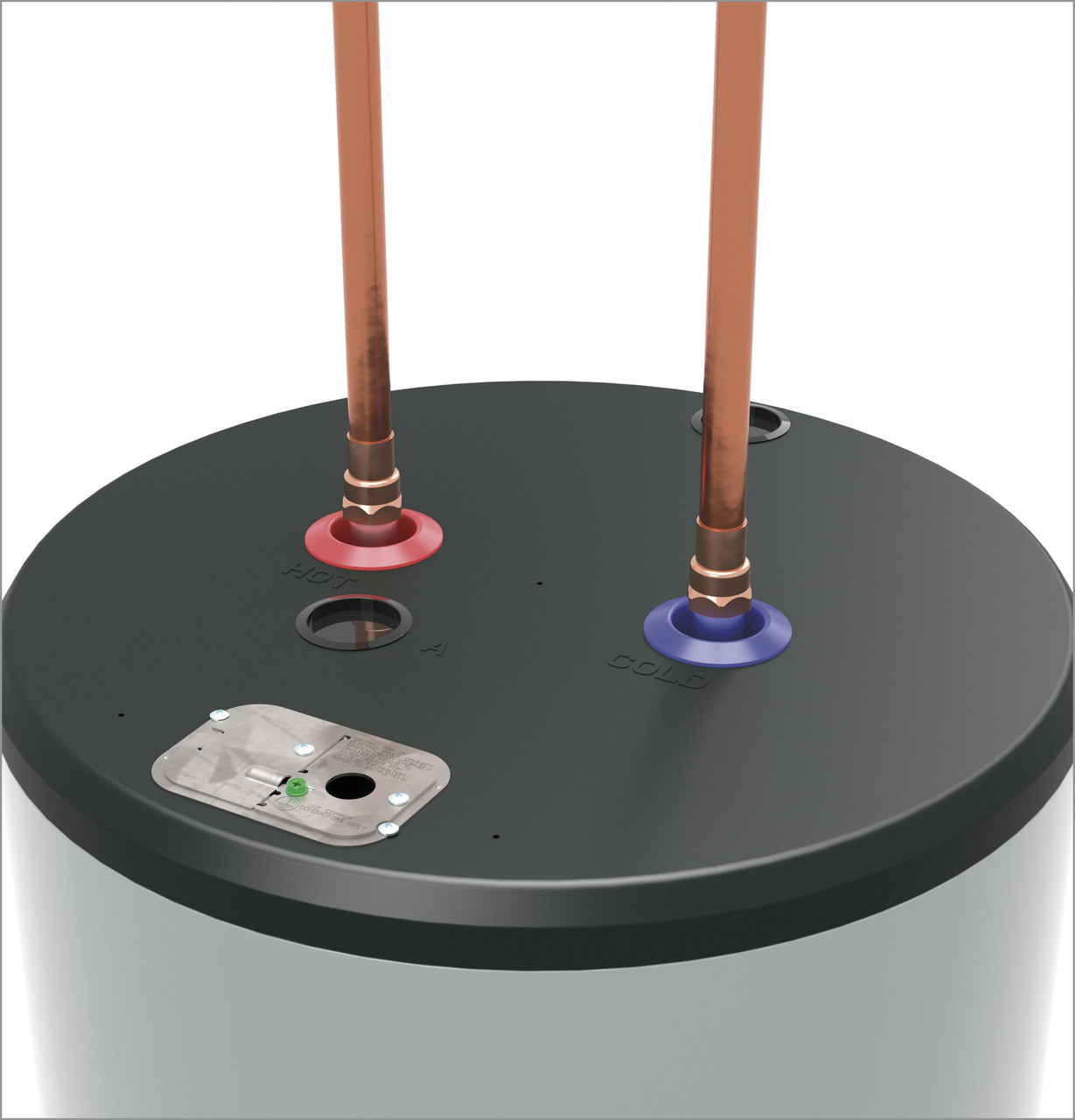

- Easy installation using standard 3/4" NPT water connections and direct-wire electrical setup.
- Covered by a 10-year limited parts warranty and 1-year limited labor warranty.
- UL Listed and certified Lead-Free to NSF/ANSI 372 standards.
