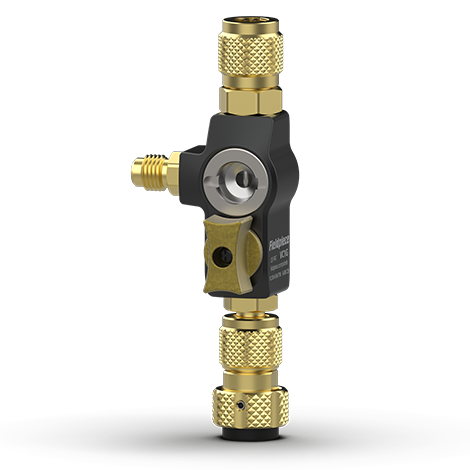

Fieldpiece Instruments VC1G Valve Core Removal Tool, 1/4" Size, 800 PSI, 1/4" Female Port (Service), 1/4" Male Port (Side), 1/4" Male SAE Flare (Service Hose), 5/16" Female SAE Flare (Service Port), Brass, 5-3/50" Length, 2" Width, 1-1/2" Height
Fieldpiece Instruments VC1G Valve Core Removal Tool, 1/4" Size, 800 PSI, 1/4" Female Port (Service), 1/4" Male Port (Side), 1/4" Male SAE Flare (Service Hose), 5/16" Female SAE Flare (Service Port), Brass, 5-3/50" Length, 2" Width, 1-1/2" Height
| Additional Information | : | 20 um Vacuum Rated |
| Color | : | Brass, Black |
| Connection Type | : | 1/4" Female Port (Service), 1/4" Male Port (Side), 1/4" Male SAE Flare (Service Hose), 5/16" Female SAE Flare (Service Port) |
| Height | : | 1-1/2 " |
| Length | : | 5-3/50 " |
| Material | : | Brass |
| Model | : | VC1G |
| Pressure Rating | : | 800 PSI |
| Size | : | 1/4 " |
| Suitable For Use With | : | HVACR Technicians; Charging & Recovery Operations; 1/4" Standard Service Ports; 5/16" Service Ports (Requires RVC5 Fitting for Mini-Splits); High Pressure Refrigerants (Including R410A); A2L Compatible Systems |
| Width | : | 2 " |
Vacuum-rated to 20 microns, our Valve Core Removal Tools (VCRTs) are essential tools in every HVACR technician's tool kit. Removing a valve core helps speed up charging & recovery operations. Valve cores are also a common leak point of a system.The integrated sight glass allows you to positively verify you have captured and removed the valve core before fully removing the capture rod assembly from the VCRT body saving you time, headaches, and refrigerant loss.The comfort spinner on the end of the capture rod assembly makes it simple to apply pressure while still turning the knob to remove or install the valve core.Rated for high pressure refrigerants including R410a.A2L compliant as the base materials don't degrade from exposure to related gases and lubricants.
Fieldpiece Instruments Valve Core Removal Tool, 1/4" Size, 800 PSI, 1/4" Female Port (Service), 1/4" Male Port (Side), 1/4" Male SAE Flare (Service Hose), 5/16" Female SAE Flare (Service Port), Brass, 5-3/50" Length, 2" Width, 1-1/2" Height, Brass, Black

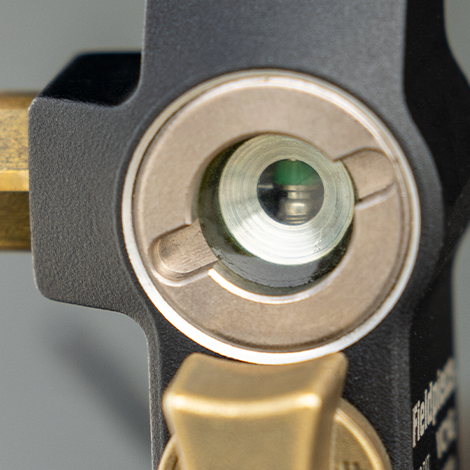

- Integrated sight glass allows visual verification of core engagement and refrigerant flow.

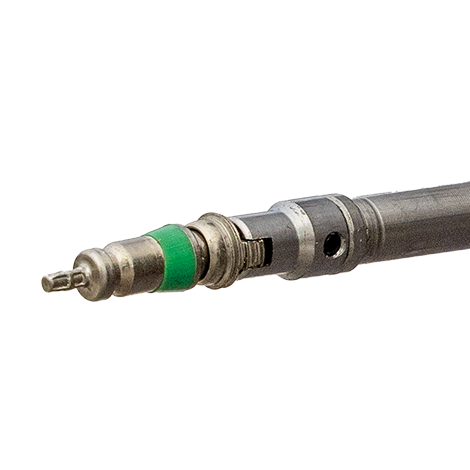

- Reliably captures the valve core on the first try with a gasket-secured pin.
- Features a comfort spinner cap for easier removal and insertion against pressure.
- Standard 1/4" female service port fitting can be swapped with an optional 5/16" fitting (RVC5) for mini-splits.
- Vacuum-rated to 20 microns for deep system evacuation.
- Includes a 1/4" male side port with a removable valve core.
- Magnetic cap conveniently holds the removed valve core during service.
- Compatible with high-pressure refrigerants, including R-410A, and A2L systems.
