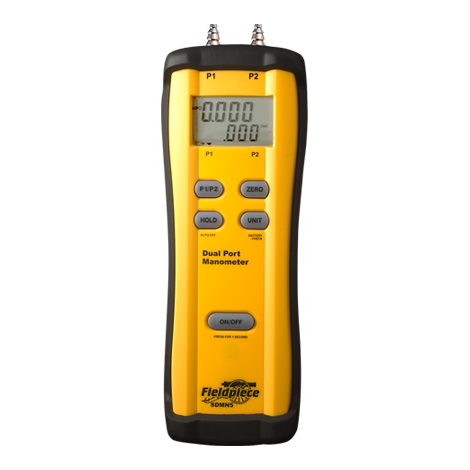

Fieldpiece Instruments SDMN5 SDMN5 Dual Port Manometer, +/- 60 In. Wc. Measuring Range, ± 0.02 In. W.c. (0-2 In. W.c., At 32-122°F), ± 1.5% FS (2-60 In. W.c., At 32-122°F), ± 0.001 PSI (0-0.07 PSI, At 32-122°F), ± 1.5% FS (0.07-2 PSI, At 32-122°F) Accuracy, 0.01 In. Wc. Resolution, Tube Connector (5mm/3/16" ID Flexible Tubing), LCD, Battery, 200 Hrs Battery Life
Fieldpiece Instruments SDMN5 SDMN5 Dual Port Manometer, +/- 60 In. Wc. Measuring Range, ± 0.02 In. W.c. (0-2 In. W.c., At 32-122°F), ± 1.5% FS (2-60 In. W.c., At 32-122°F), ± 0.001 PSI (0-0.07 PSI, At 32-122°F), ± 1.5% FS (0.07-2 PSI, At 32-122°F) Accuracy, 0.01 In. Wc. Resolution, Tube Connector (5mm/3/16" ID Flexible Tubing), LCD, Battery, 200 Hrs Battery Life
| Accuracy | : | ± 0.02 in. w.c. (0-2 in. w.c., at 32-122°F), ± 1.5% FS (2-60 in. w.c., at 32-122°F), ± 0.001 PSI (0-0.07 PSI, at 32-122°F), ± 1.5% FS (0.07-2 PSI, at 32-122°F) |
| Battery Life | : | 200 hrs |
| Battery Type | : | 9V |
| Color | : | Yellow, Black |
| Connection Type | : | Tube Connector (5mm/3/16" ID Flexible Tubing) |
| Dimensions | : | 7-1/16" H x 2-3/8" W x 1-3/16" D |
| Display Type | : | LCD |
| Fitting Size | : | 3/16" (I.D. Flexible Tubing) |
| Fluid Type | : | Dry Non-Corrosive Gases |
| Material | : | Rubber (Boot) |
| Measuring Range | : | +/- 60 in. wc. |
| Mounting Type | : | Handheld, Magnetic Mount |
| Power Source | : | Battery |
| Resolution | : | 0.01 in. wc. |
| Series | : | SDMN5 |
| Suitable For Use With | : | Gas Pressure Measurement, Static Pressure Measurement, Differential Pressure Measurement, Furnace Testing, Balancing Air Flow (Ducts), Checking Gas Regulator Pressure, HVAC/R Field Service |
| Temperature Rating | : | 32-122 °F (Operating) |

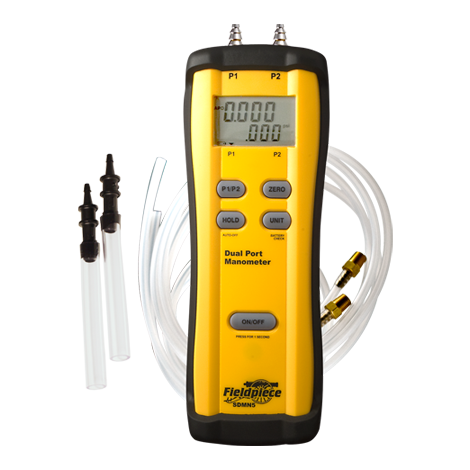

The SDMN5 is a portable, rugged dual-port manometer designed especially for HVACR field service technicians. Measures gas pressure, static pressure and pressure differential. The SDMN5 includes a zero adjust button of the face of the meter, a rugged rubber boot, a magnet on the back for hanging the meter during service, and the Auto Power-Off (APO) function conserves battery life. The SDMN5 measures pressure between -60inWC and 60inWC (inches of water column) and -150.0 to 150.0 mBar. The SDMN5 also measures P1 or P2 pressure readings and calculates the difference between P1 and P2. Take static pressure measurements using the resolution mode of 0.01inWC or 0.01mBar. Includes 3/16†to 5/16†adapter for measuring gas inlet and outlet pressures.The SDMN5 evolved as a result of testing pressures in the field for 20 years. Its range and resolution allow you to measure the HVAC applications you run into everyday in HVAC/R field service. Measure gas pressure on the inlet and outlets with the standard 3/16†fittings or the included adapters for 5/16†ports, take static pressure measurements across a blower and get the pressure differential with the push of a button to check drafts. Whether you’re holding the ergonomic standalone shape in your hand or hang the SDMN5 on the unit with the magnetic hanger to fill out a work order, the SDMN5 make HVAC/R field service easier and faster, with less fatigue than the other guys.
Fieldpiece Instruments Dual Port Manometer, Model: SDMN5, +/- 60 In. Wc. Measuring Range, ± 0.02 In. W.c. (0-2 In. W.c., At 32-122°F), ± 1.5% FS (2-60 In. W.c., At 32-122°F), ± 0.001 PSI (0-0.07 PSI, At 32-122°F), ± 1.5% FS (0.07-2 PSI, At 32-122°F) Accuracy, 0.01 In. Wc. Resolution, Tube Connector (5mm/3/16" ID Flexible Tubing), LCD, Battery, 200 Hrs Battery Life, 9V Battery, Dry Non-Corrosive Gases, 32-122 °F (Operating), Handheld, Magnetic Mount, Rubber (Boot), 7-1/16" H x 2-3/8" W x 1-3/16" D Dimensions, Yellow, Black
- Measures gas pressure, static pressure, and differential pressure (P1, P2, P1-P2).
- Offers a wide measurement range from -60 in. wc. to +60 in. wc.
- High resolution of 0.01 in. wc. enables precise static pressure measurements.
- Features a zero adjust button, data hold function, and auto power-off to conserve battery life.
- Built for field use with a rugged rubber boot and integrated magnetic hanger.
- Displays readings in multiple units: inWC, mmWC, mBar, and PSI.
- Provides approximately 200 hours of battery life with a low battery indicator.
