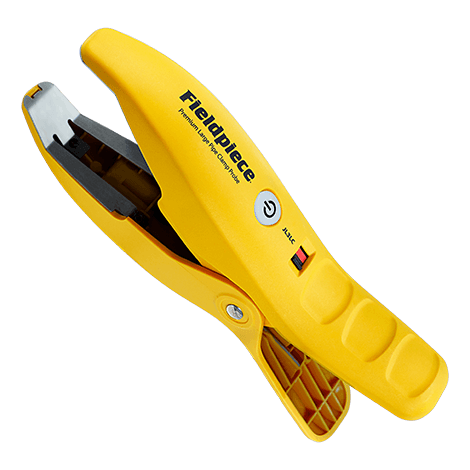

Fieldpiece Instruments Job Link JL3LC Wireless Large Pipe Clamp Probe, Type K, -50-257 °F (Measurement Range), -4-122 °F (Operating), -4-140 °F (Storage), Rapid Rail™ Sensor Technology, Pipe Clamp, Wireless, Wireless (2.4 Ghz/BLE 4.0), 3/4" - 4-1/8" (OD) Jaw Size, ± 4°F (Thermocouple Only), ± 1.0°F (After Field Calibration)
Fieldpiece Instruments Job Link JL3LC Wireless Large Pipe Clamp Probe, Type K, -50-257 °F (Measurement Range), -4-122 °F (Operating), -4-140 °F (Storage), Rapid Rail™ Sensor Technology, Pipe Clamp, Wireless, Wireless (2.4 Ghz/BLE 4.0), 3/4" - 4-1/8" (OD) Jaw Size, ± 4°F (Thermocouple Only), ± 1.0°F (After Field Calibration)
| Accuracy | : | ± 4°F (Thermocouple Only), ± 1.0°F (After Field Calibration) |
| Battery Type | : | AAA Alkaline |
| Color | : | Black |
| Connection Type | : | Pipe Clamp, Wireless |
| Dimensions | : | 3/4 to 4-1/8 in Pipe Compatibility, 150 hr Battery Life, AAA Battery Type |
| Display Type | : | No Display |
| Domestic/Import | : | Import |
| Jaw Size | : | 3/4" - 4-1/8" (OD) |
| Material | : | Plastic (Body), Nickel Chromium/Nickel Aluminum (Thermocouple Sensor) |
| Model | : | JL3LC |
| Probe Connector | : | Wireless (2.4 GHz/BLE 4.0) |
| Series | : | Job Link |
| Size | : | 0.61 lbs |
| Temperature Rating | : | -50-257 °F (Measurement Range), -4-122 °F (Operating), -4-140 °F (Storage) |
| Thermocouple Type | : | Type K |
| Tip Type | : | Rapid Rail™ Sensor Technology |
JL3LC large pipe clamps can take measurements on pipes as small as ¾†and as large as 4 1/8†diameter, so say goodbye to unreliable zip ties and straps and hello to convenience, precision, and speed. This high-tech large pipe clamp is rugged, versatile, and wireless. Take measurements from 1,000’ away and get quick pipe temp readings right on the latest SMAN® Refrigerant Manifolds or Job Link® System App.Whether you’re in commercial, refrigeration or residential, accuracy always matters. Along with being 4 1/8â€, the widest opening on the market, the JL3LC uses our patented Rapid Railâ„¢ Sensor, giving you instant accuracy on your pipe temperatures.The patented Rapid Railâ„¢ Sensor Technology completes the circuit and stabilizes immediately, giving you direct, reliable and secure connections – even on wet or damp pipes. This also means readings won’t be affected by wind, ambient temperature or any other outside influence. And even though it’s big, it’s also built for use with one hand, which is handy for hard-to-reach areas.The JL3LC boasts 1,000’ of wireless range and communicates with both the Job Link App and our SMAN Refrigerant Manifolds, models SM380V and SM480V. If you’re on the job site, you’re in range of the JL3LC. If you don’t need a wireless clamp, we offer a wired version, the TC48.
Fieldpiece Instruments Wireless Large Pipe Clamp Probe, Model: Job Link, Type K, -50-257 °F (Measurement Range), -4-122 °F (Operating), -4-140 °F (Storage), Rapid Rail™ Sensor Technology, Pipe Clamp, Wireless, Wireless (2.4 Ghz/BLE 4.0), 3/4" - 4-1/8" (OD) Jaw Size, ± 4°F (Thermocouple Only), ± 1.0°F (After Field Calibration), Plastic (Body), Nickel Chromium/Nickel Aluminum (Thermocouple Sensor), No Display, AAA Alkaline, 150 Hours Typical Alkaline (Battery Life) Battery Capacity, Black, Import, 0.61 lbs Size
- Measures pipe temperatures on diameters ranging from 3/4" to 4-1/8".
- Patented Rapid Railâ„¢ Sensor technology ensures fast, accurate readings that stabilize in seconds, even on wet pipes.
- Transmits readings wirelessly up to 1000 ft to the Job Link® System App and compatible SMAN® Refrigerant Manifolds.
- Compact, ergonomic design allows for easy single-handed operation.
- Features a rugged, waterproof (IP67 rated) build suitable for tough field conditions.
- Meets California Title 24 requirements for energy efficiency verification.
