M&M Manufacturing Dryerbox Model 425 DB-425 Dryer Vent Box, For 4-1/8" (Slight Oval Shape) Hose, 2" x 6" (Standard), 2" x 4" (With 1" Furring Strip) Wall Size, 5-1/8" Depth, 21" Length, 12-1/2" Width, 22 Gauge Aluminized Steel, Galvanized Finish
M&M Manufacturing Dryerbox Model 425 DB-425 Dryer Vent Box, For 4-1/8" (Slight Oval Shape) Hose, 2" x 6" (Standard), 2" x 4" (With 1" Furring Strip) Wall Size, 5-1/8" Depth, 21" Length, 12-1/2" Width, 22 Gauge Aluminized Steel, Galvanized Finish
| Depth | : | 5-1/8 " |
| Finish | : | Galvanized |
| For Hose Diameter | : | 4-1/8" (Slight Oval Shape) |
| Length | : | 21 " |
| Material | : | 22 Gauge Aluminized Steel |
| Series | : | Dryerbox Model 425 |
| Suitable For Use With | : | Standard American Clothes Dryers (Floor Standing, Stacked, or Pedestal); Upward or Downward Venting Exhaust Systems |
| Wall Size | : | 2" x 6" (Standard), 2" x 4" (With 1" Furring Strip) |
| Width | : | 12-1/2 " |

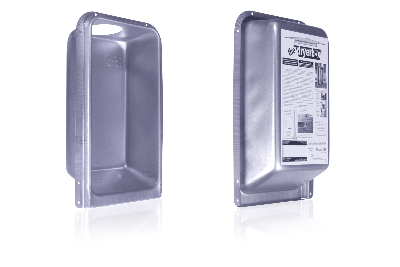

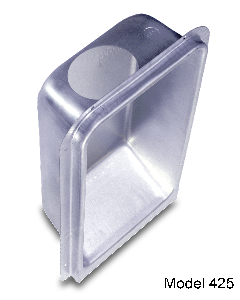

The Dryerbox Model 425 is designed for upward dryer exhaust venting, typically in new construction with 2x6 walls, though it can fit 2x4 walls using furring strips. This versatile box can also be installed for downward venting (for stacked or pedestal dryers) or horizontally, providing flexibility for various installation scenarios.Constructed using a deep-drawn manufacturing process in the USA, this model features durable 22-gauge aluminized steel. It includes an extension rim protruding 7/8" from the nailing flange, eight 1/4" mounting holes for secure attachment, and tapered sides for efficient nesting during transport and storage. The surface is clean and paint-ready, and a gas port knock-out is incorporated. An instruction sheet is attached to the rear panel for convenience.
M&M Manufacturing Dryer Vent Box, Model: Dryerbox Model 425, For 4-1/8" (Slight Oval Shape) Hose, 2" x 6" (Standard), 2" x 4" (With 1" Furring Strip) Wall Size, 5-1/8" Depth, 21" Length, 12-1/2" Width, 22 Gauge Aluminized Steel, Galvanized Finish
- Optimized for upward venting in standard 2x6 walls; adaptable for 2x4 walls or downward/horizontal installations.
- Durable 22-gauge aluminized steel construction using a deep-drawn manufacturing process.
- UL Classified for a 1-hour F-Rating, meeting safety requirements for wall penetrations.
- Features include a gas port knock-out, eight pre-drilled mounting holes, and a paint-ready surface.
- Tapered sides allow for efficient nesting and storage of multiple boxes.
- Compatible With: Standard floor-standing, stacked, or pedestal American clothes dryers.
- Proudly made in the USA.
