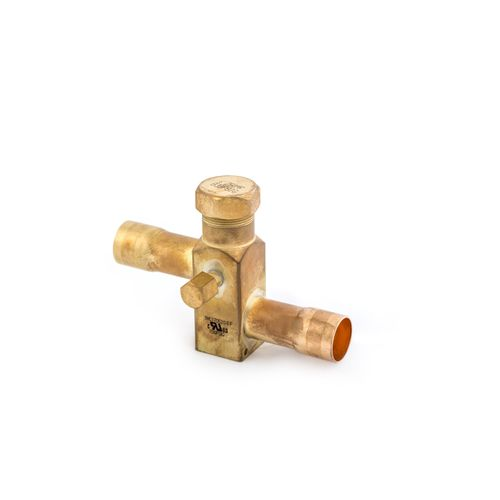

DiversiTech SERVICE-BAR-7-S-T Service Valve, 7/8" Nominal Size, ODF, Refrigerant (A2L, R-22, R134a, R407C, R-410A) Media, 714.7 PSI, -22-248 °F (Fluid), Alloy Brass, Manual
DiversiTech SERVICE-BAR-7-S-T Service Valve, 7/8" Nominal Size, ODF, Refrigerant (A2L, R-22, R134a, R407C, R-410A) Media, 714.7 PSI, -22-248 °F (Fluid), Alloy Brass, Manual
Manufacturer: DiversiTech Corporation
Brand: DiversiTech®
Part #: 389405
MPN: SERVICE-BAR-7-S-T
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Actuator Type | : | Manual |
| Body Material | : | Alloy Brass |
| Connection Type | : | ODF |
| Dimensions | : | 3.58" H x 2.09" W x 5.2" D |
| Domestic/Import | : | Import |
| End Type | : | ODF |
| Media | : | Refrigerant (A2L, R-22, R134a, R407C, R-410A) |
| Model | : | SERVICE-BAR-7-S-T |
| Nominal Size | : | 7/8 " |
| Port Type | : | ODF |
| Pressure Rating | : | 714.7 PSI |
| Temperature Rating | : | -22-248 °F (Fluid) |
The Sanhua SERVICE-BAR-7-S-T-service valves are applicable for air conditioning or refrigeration systems requiring a means to shut off refrigerant flow. The valves can be used for system servicing, evacuation, and refrigerant charging.
DiversiTech Service Valve, 7/8" Nominal Size, ODF, Refrigerant (A2L, R-22, R134a, R407C, R-410A) Media, 714.7 PSI, -22-248 °F (Fluid), Alloy Brass, Manual, 3.58" H x 2.09" W x 5.2" D Dimensions, Import
- Designed for shutting off refrigerant flow during system servicing, evacuation, and charging.
- A2L certified and compatible with common HCFC/HFC refrigerants including R-22, R-134a, R-407C, and R-410A.
- Engineered to handle low pressure drops effectively.
- Constructed from high-quality alloy brass for durability and corrosion resistance.
- Rated for a maximum operating pressure of 650 psig.
- UL Certified for compliance with safety standards.
- Every valve is 100% factory leak tested before shipping.
