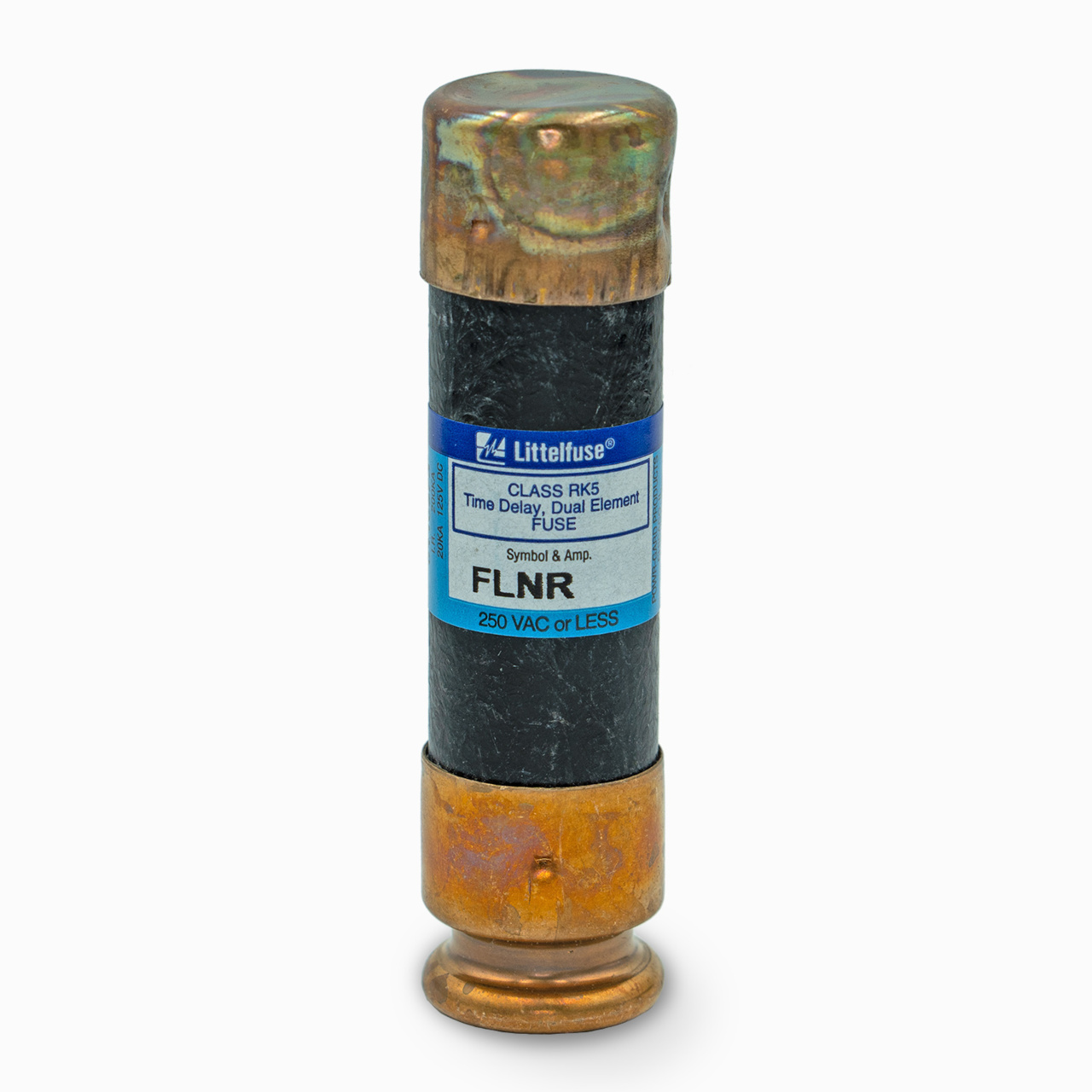

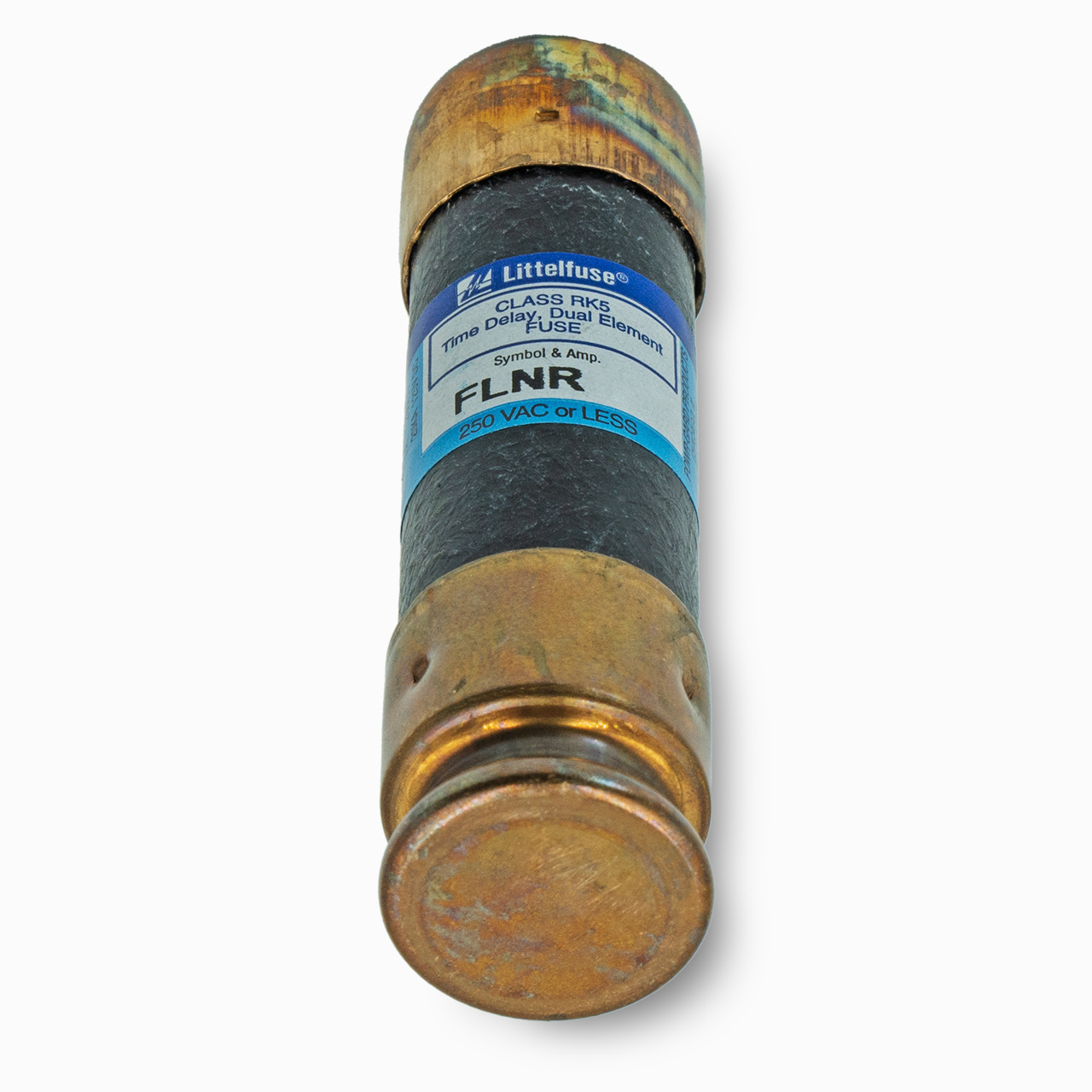

DiversiTech FLNR Series FLNR050T Class RK5 Fuse, 50 A, 250 VAC, 125 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount
DiversiTech FLNR Series FLNR050T Class RK5 Fuse, 50 A, 250 VAC, 125 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount
| Amperage Rating | : | 50 A |
| Body Type | : | Cylindrical, Cartridge |
| Class | : | RK5 |
| Diameter | : | 13/16 " |
| Element Type | : | Dual Element |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Indicating/Non-Indicating | : | Non-Indicating |
| Interrupt Rating | : | 200 kA (AC), 20 kA (DC) |
| Length | : | 3 " |
| Mounting Type | : | Fuse Block, Clip Mount, Holder Mount |
| Rejection/Non-Rejection | : | Rejection |
| Response Time | : | Time-Delay |
| Series | : | FLNR Series |
| Short Circuit Rating | : | 200 kA (AC), 20 kA (DC) |
| Terminal Type | : | Ferrule |
| Voltage Rating | : | 250 VAC, 125 VDC |
The FLNR series sets the standard for general-purpose fuses, featuring a dual-element design for advanced short-circuit and overload protection. This Class RK5 fuse is specifically designed with time-delay characteristics, allowing it to handle temporary motor start-up surges and transformer inrush currents without nuisance tripping, ensuring reliable operation in demanding applications.
DiversiTech Class RK5 Fuse, Model: FLNR Series, 50 A, 250 VAC, 125 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount, Ferrule Terminal Type, Non-Indicating, Cylindrical, Cartridge Body Type, RK5, 13/16" Diameter, 3" Length, 50 Hz, 60 Hz
- Dual-element, time-delay design handles temporary inrush currents without nuisance opening.
- Provides current-limiting protection against short circuits and overloads.
- Rated for 50 Amps and 250 VAC / 125 VDC circuits.
- Features a high interrupt rating of 200 kA AC and 20 kA DC.
- Suitable for motor circuits, transformers, service entrance switches, and general-purpose protection.
- UL Listed and CSA Certified.
