DiversiTech Hilmor CVG1200 Compact Vacuum Gauge, 1-300,000 Microns, 800 PSI (Momentary), ± (5% + 10 Microns) (1-1,000 Microns, At 25°C), ± 20% (1,000-5,000 Microns, At 25°C), 1 Micron (1-2,000 Microns), 100 Microns (2,000-20,000 Microns), 1,000 Microns (20,000-100,000 Microns), 10,000 Microns (100,000-300,000 Microns) Resolution, A2L Compatible, Handheld, LCD
DiversiTech Hilmor CVG1200 Compact Vacuum Gauge, 1-300,000 Microns, 800 PSI (Momentary), ± (5% + 10 Microns) (1-1,000 Microns, At 25°C), ± 20% (1,000-5,000 Microns, At 25°C), 1 Micron (1-2,000 Microns), 100 Microns (2,000-20,000 Microns), 1,000 Microns (20,000-100,000 Microns), 10,000 Microns (100,000-300,000 Microns) Resolution, A2L Compatible, Handheld, LCD

DiversiTech Hilmor CVG1200 Compact Vacuum Gauge, 1-300,000 Microns, 800 PSI (Momentary), ± (5% + 10 Microns) (1-1,000 Microns, At 25°C), ± 20% (1,000-5,000 Microns, At 25°C), 1 Micron (1-2,000 Microns), 100 Microns (2,000-20,000 Microns), 1,000 Microns (20,000-100,000 Microns), 10,000 Microns (100,000-300,000 Microns) Resolution, A2L Compatible, Handheld, LCD

DiversiTech Hilmor CVG1200 Compact Vacuum Gauge, 1-300,000 Microns, 800 PSI (Momentary), ± (5% + 10 Microns) (1-1,000 Microns, At 25°C), ± 20% (1,000-5,000 Microns, At 25°C), 1 Micron (1-2,000 Microns), 100 Microns (2,000-20,000 Microns), 1,000 Microns (20,000-100,000 Microns), 10,000 Microns (100,000-300,000 Microns) Resolution, A2L Compatible, Handheld, LCD

Manufacturer: DiversiTech Corporation
Brand: DiversiTech®
Part #: 386399
MPN: CVG1200
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Accuracy      :      ± (5% + 10 microns) (1-1,000 microns, at 25°C), ± 20% (1,000-5,000 microns, at 25°C)
Battery Life      :      50 hrs (Without Backlight)
Battery Type      :      AAA
Color      :      Black
Dimensions      :      4-4/5" L x 1-1/5" H x 2-1/5" W
Display Type      :      LCD
Graduation      :      1 Micron (1 to 2,000 Microns), 100 Microns (2,000 to 20,000 Microns), 1000 Microns (20,000 to 100,000 Microns), 10000 Microns (100,000 to 300,000 Microns)
Measuring Range      :      1-300,000 microns
Mounting Type      :      Handheld
Power Supply      :      Battery
Pressure Rating      :      800 PSI (Momentary)
Refrigerant Type      :      A2L Compatible
Resolution      :      1 micron (1-2,000 Microns), 100 microns (2,000-20,000 Microns), 1,000 microns (20,000-100,000 Microns), 10,000 microns (100,000-300,000 Microns)
Series      :      Hilmor
Temperature Rating      :      10-122 °F

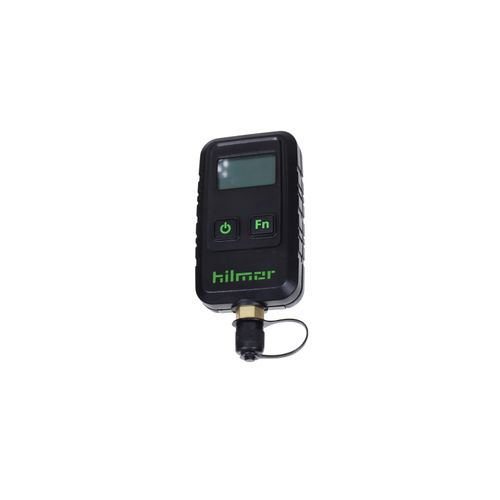

The hilmor Compact Vacuum Gauge is an all-in-one micron gauge that is durably constructed for everyday use and abuse. An easy to read backlit display provides readings and the two button operation simplifies field use.

DiversiTech Compact Vacuum Gauge, Model: Hilmor, 1-300,000 Microns, 800 PSI (Momentary), ± (5% + 10 Microns) (1-1,000 Microns, At 25°C), ± 20% (1,000-5,000 Microns, At 25°C), 1 Micron (1-2,000 Microns), 100 Microns (2,000-20,000 Microns), 1,000 Microns (20,000-100,000 Microns), 10,000 Microns (100,000-300,000 Microns) Resolution, A2L Compatible, Handheld, LCD, 50 Hrs (Without Backlight) Battery Life, AAA Battery, Battery, 4-4/5" L x 1-1/5" H x 2-1/5" W Dimensions, 10-122 °F, Black

  • Backlit LCD display ensures readability in low-light conditions.
  • Measures a wide vacuum range from 1 to 300,000 microns.
  • Features a programmable audible micron alarm with high and low settings.
  • Built to withstand momentary overpressure up to 800 PSI.
  • Includes a protective carrying case for convenient storage and transport.
  • Compatible with A2L refrigerants.
  • Specification Sheet https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/hilmor-compact-vacuum-gauge-cvg1200-specification-sheet-4202-4865.pdf
  • Catalog https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/hvac-r-product-catalog-4202-3550.pdf
