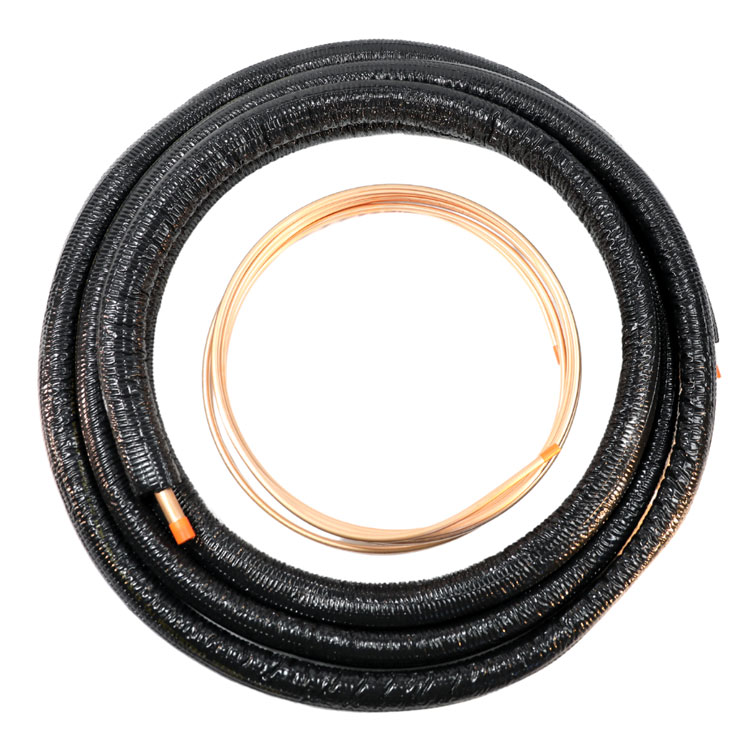

Cerro Flow Products 614 CerroSet Black Shield UV 614203560009 Black Shield UV Line Set, 7/8" Suction Line Size, 3/8" Liquid Line Size, 35' Length, 1/2" Insulation Thickness, 3.3 R-Value, Plain End, C12200 Copper (Tube), NBR/PVC (Insulation)
Cerro Flow Products 614 CerroSet Black Shield UV 614203560009 Black Shield UV Line Set, 7/8" Suction Line Size, 3/8" Liquid Line Size, 35' Length, 1/2" Insulation Thickness, 3.3 R-Value, Plain End, C12200 Copper (Tube), NBR/PVC (Insulation)
| Color | : | Black |
| Connection Type | : | Plain End |
| Domestic/Import | : | Domestic |
| Finish | : | Co-Extruded/UV Resistant (Jacket) |
| Insulation Thickness | : | 1/2 " |
| Length | : | 35 ' |
| Liquid Line Size | : | 3/8 " |
| Material Standard | : | ASTM E243 |
| Material | : | C12200 Copper (Tube), NBR/PVC (Insulation) |
| Model | : | 614203560009 |
| Pressure Rating | : | 700 PSI (UL Recognized) |
| R-Value | : | 3.3 |
| Series | : | 614 CerroSet Black Shield UV |
| Suction Line Size | : | 7/8 " |
| Temperature Rating | : | -297-220 °F |
Connect indoor and outdoor HVAC components reliably with this CerroSet Black Shield UV line set. The 35-foot kit contains C12200 copper tubing, featuring a 3/8" liquid line and a 7/8" suction line. Both tubes are protected by 1/2" thick, black NBR/PVC insulation with a co-extruded, UV-resistant jacket designed for durability in various conditions. This domestically produced line set meets ASTM E243 standards and is UL recognized for pressures up to 700 PSI, operating effectively in temperatures from -297°F to 220°F.
Cerro Flow Products Black Shield UV Line Set, Model: 614 CerroSet Black Shield UV, 7/8" Suction Line Size, 3/8" Liquid Line Size, 35' Length, 1/2" Insulation Thickness, 3.3 R-Value, Plain End, C12200 Copper (Tube), NBR/PVC (Insulation), 700 PSI (UL Recognized), ASTM E243, -297-220 °F, Co-Extruded/UV Resistant (Jacket), Black, Domestic
- Provides 35 feet of tubing for connecting HVAC system components.
- Includes a 3/8" liquid line and a 7/8" suction line made of C12200 copper.
- Features 1/2" thick black NBR/PVC insulation with an R-Value of 3.3.
- Equipped with a co-extruded, UV-resistant jacket for enhanced outdoor durability.
- UL Recognized for operating pressures up to 700 PSI.
- Suitable for a wide temperature range from -297°F to 220°F.
- Meets ASTM E243 material standards.
