Bosch Greensource SM Rev A/B SM070-1VTC-FLTADB-XMGXXXXXD7XXXX4XXXXSBA Water Source Heat Pump, 6 Tons, R-410A, Vertical, Upflow, Left Hand, 208/230 V, 14.3 EER (WLHP), 22.1 EER (GWHP), 17.3 EER (GLHP), 1" FPT (Water) Connection, 1-Phase
Bosch Greensource SM Rev A/B SM070-1VTC-FLTADB-XMGXXXXXD7XXXX4XXXXSBA Water Source Heat Pump, 6 Tons, R-410A, Vertical, Upflow, Left Hand, 208/230 V, 14.3 EER (WLHP), 22.1 EER (GWHP), 17.3 EER (GLHP), 1" FPT (Water) Connection, 1-Phase
| Amperage Rating | : | 9.1 A (FLA, Fan), 29.7 A (RLA, Compressor), 46.2 A (MCA) |
| BTU Cooling Rating | : | 60,000 Btu/hr |
| BTU Rating | : | 70,000 BTU/hr |
| Blower Size | : | 11" Diam x 11" W |
| CFM Rating | : | 2,400 CFM |
| Coil Rating | : | 6 Tons |
| Color | : | White |
| Compressor Type | : | Scroll |
| Configuration | : | Vertical, Upflow, Left Hand |
| Connection Type | : | 1" FPT (Water) |
| Dimensions | : | 60-1/10" H x 26" W x 33-3/10" D |
| Domestic/Import | : | Domestic |
| Drive Type | : | ECM Constant Airflow |
| EER Rating | : | 14.3 EER (WLHP), 22.1 EER (GWHP), 17.3 EER (GLHP) |
| Filter Size | : | 20" x 30" x 2" (2) |
| Finish | : | White Pre-Painted |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 70 A |
| HP Rating | : | 1 HP (Fan Motor) |
| Liquid Line (OD) | : | 3/8 in |
| Material | : | Sheet Metal (Cabinet), Tin-Plated (Evaporator Coil), Stainless Steel (Drain Pan) |
| Model Number | : | 7-735 |
| Model | : | SM070-1VTC-FLTADB-XMGXXXXXD7XXXX4XXXXSBA |
| Mounting Type | : | Vertical Upflow |
| Number of Stages | : | 2 |
| Phase | : | 1 |
| Pressure Rating | : | 464.7 PSI (Max Water Working) |
| Refrigerant Type | : | R-410A |
| Series | : | Greensource SM Rev A/B |
| Sound Level | : | 52 dBA |
| Tonnage | : | 6 tons |
| Voltage Rating | : | 208/230 V |
| Volts | : | 208/230 V |

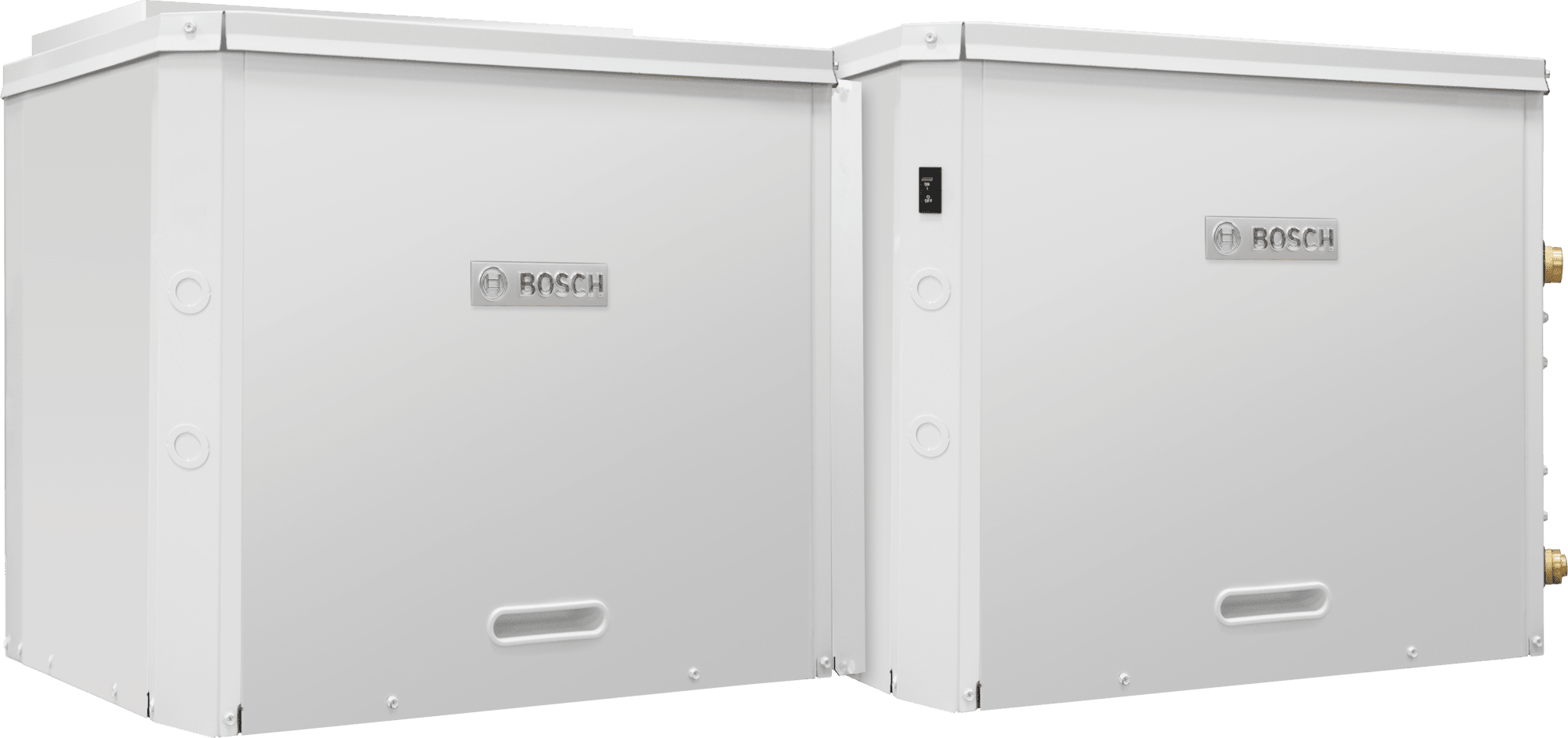

The Bosch Greensource SM Series Geothermal Heat Pump provides efficient heating and cooling for residential applications using ground loop, water loop, or groundwater sources. This 6-ton unit features a vertical upflow, left-hand configuration suitable for various installations.Equipped with a high-efficiency two-stage scroll compressor and a variable-speed ECM fan motor, this heat pump delivers consistent comfort and energy savings. It utilizes R-410A refrigerant and includes a factory-installed desuperheater for supplemental domestic hot water generation. The unit is constructed with a durable, white pre-painted cabinet, copper water coil, and stainless steel drain pan, ensuring longevity and reliable performance.
Bosch Water Source Heat Pump, Model: Greensource SM Rev A/B, 6 Tons, R-410A, Vertical, Upflow, Left Hand, 208/230 V, 14.3 EER (WLHP), 22.1 EER (GWHP), 17.3 EER (GLHP), 1" FPT (Water) Connection, 1-Phase, 60-1/10" H x 26" W x 33-3/10" D Dimensions, 2,400 CFM, ECM Constant Airflow, Scroll, 11" Diam x 11" W Blower Size, 1 HP (Fan Motor), Sheet Metal (Cabinet), Tin-Plated (Evaporator Coil), Stainless Steel (Drain Pan), Vertical Upflow, 20" x 30" x 2" (2) Filter Size, ≥52 dBA, 2 Stage, 70,000 BTU/hr, 9.1 A (FLA, Fan), 29.7 A (RLA, Compressor), 46.2 A (MCA), Domestic, 464.7 PSI (Max Water Working), 60 Hz, 70 A Fuse Rating, White
- Provides 6 tons of heating and cooling capacity using efficient geothermal technology.
- Features a two-stage scroll compressor and variable-speed ECM motor for enhanced comfort and energy savings.
- Includes a factory-installed desuperheater to supplement domestic hot water heating.
- Configured for vertical upflow, left-hand installation with a durable copper water coil and 1" FPT connections.
- Utilizes environmentally friendly R-410A refrigerant.
- Designed for quiet operation with sound levels as low as 52 dB, featuring closed-cell foam insulation.
- Comes with a 10-year limited parts and labor allowance warranty.
