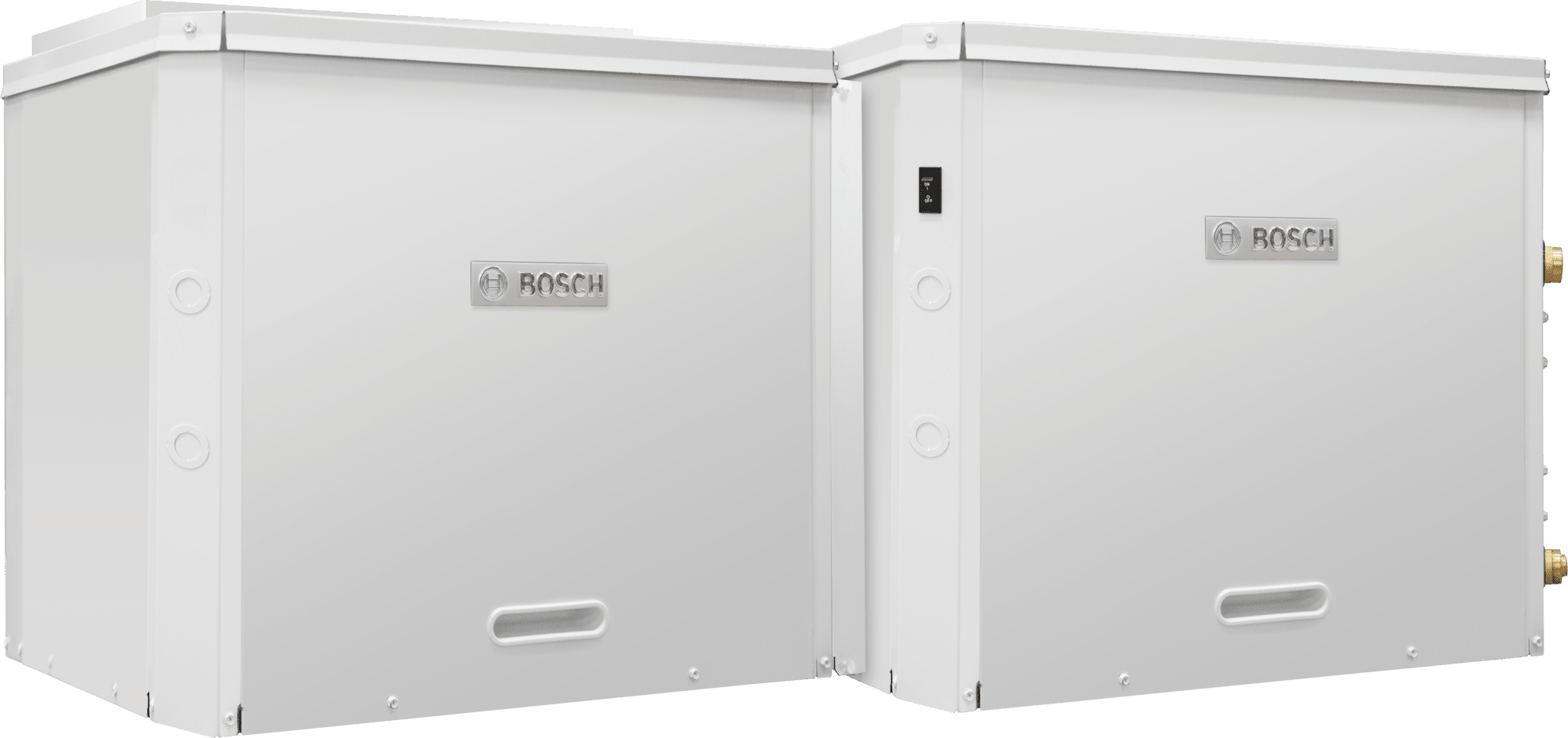

Bosch Greensource CDi Series SM Split SM060-1CSN-FXXXXA-XHGEXXXXDXXXXXXXXXXSBA Condensing Unit, 5 Tons Tonnage, 2 Stage, 208/230 V, R-410A, 16.10-27.00 EER, 1,700 CFM, 60,000 BTU/hr (Nominal)
Bosch Greensource CDi Series SM Split SM060-1CSN-FXXXXA-XHGEXXXXDXXXXXXXXXXSBA Condensing Unit, 5 Tons Tonnage, 2 Stage, 208/230 V, R-410A, 16.10-27.00 EER, 1,700 CFM, 60,000 BTU/hr (Nominal)
| Amperage Rating | : | 27.1 A (RLA), 33.9 A (MCA) |
| BTU Cooling Rating | : | 60,000 Btu/hr |
| BTU Rating | : | 60,000 BTU/hr |
| CFM Rating | : | 1,700 CFM |
| Color | : | White |
| Compressor Type | : | Two-Stage Scroll |
| Configuration | : | Split System, Condensing Unit |
| Connection Type | : | FPT (Water) |
| Dehumidification | : | Active Supported, Passive Supported |
| Dimensions | : | 23-3/10" H x 33-2/5" W x 27" D |
| Domestic/Import | : | Domestic |
| EER Rating | : | 16.10-27.00 EER |
| Finish | : | Pre-Painted |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 60 A |
| Liquid Line (OD) | : | 3/8 in |
| Liquid Line Size | : | 3/8 " |
| Material | : | Sheet Metal (Cabinet), Stainless Steel (Drain Pan), Copper/Cupro-Nickel (Coil) |
| Model Number | : | 7-735 |
| Model | : | SM060-1CSN-FXXXXA-XHGEXXXXDXXXXXXXXXXSBA |
| Mounting Type | : | Floor Mount (Requires Support) |
| Number of Stages | : | 2 |
| Phase | : | 1 |
| Refrigerant Type | : | R-410A |
| Series | : | Greensource CDi Series SM Split |
| Sound Level | : | 52 dBA |
| Suction Line Size | : | 1-1/8 " |
| Temperature Rating | : | 20-80 °F (Entering Fluid, Heating), 50-110 °F (Entering Fluid, Cooling) |
| Tonnage | : | 5 tons |
| Voltage Rating | : | 208/230 V |
| Volts | : | 208/230 V |
Energy and cost-efficient comfort solution.- Available in 2 to 5 ton capacities- Two-stage high efficiency scroll compressor- Versatile and compact design adaptable for replacement, relocation or new construction- Standard 1/2" close-cell foam insulation for sound levels as low as 52 dBThe Greensource CDi Series SM Model geothermal heat pump split system comes in two parts that can individually replace and work with your existing HVAC system or both can be used in tandem for a full solution. Each come equipped with the quality and innovative technology that only Bosch can provide.Split-Condensing SectionThe SM's versatile and compact design, allows it to adapt to replacement, relocation or new construction. Two-stage scroll compressor operates in harmony with the earth’s temperature, extending service life and saving on energy costs. It is engineered for quiet operation, and with 10-year limited warranty on all parts and labor, you can rest easy.
Bosch Condensing Unit, Model: Greensource CDi Series SM Split, 5 Tons Tonnage, 2 Stage, 208/230 V, R-410A, 16.10-27.00 EER, 1,700 CFM, 60,000 BTU/hr (Nominal), FPT (Water), 3/8" Liquid Line Size, 1-1/8" Suction Line Size, 1 Phase, Two-Stage Scroll, Active Supported, Passive Supported Dehumidification, Split System, Condensing Unit, Floor Mount (Requires Support), ≥52 dBA, Sheet Metal (Cabinet), Stainless Steel (Drain Pan), Copper/Cupro-Nickel (Coil), 23-3/10" H x 33-2/5" W x 27" D Dimensions, White, Pre-Painted, Domestic Origin, 60 Hz, 60 A Fuse Rating, 27.1 A (RLA), 33.9 A (MCA) Amperage Rating, 20-80 °F (Entering Fluid, Heating), 50-110 °F (Entering Fluid, Cooling)
- Features a high-efficiency two-stage scroll compressor for enhanced comfort control.
- Versatile and compact design suitable for replacement, relocation, or new construction projects.
- Achieves high energy efficiency with EER ratings up to 27.00.
- Utilizes environmentally friendly R-410A refrigerant.
- Engineered for quiet operation with sound levels as low as 52 dB using closed-cell foam insulation.
- Supports active and passive dehumidification modes for improved indoor air quality.
- Includes an electronic circuit board with multiple protection features and alert capabilities.
- Covered by a 10-year limited parts and labor warranty.
