Benchmark Foam Thermo-Snap Insulated Panel, 4' x 4' Panel Size, 2" Thickness, 16 PSI, 8.1 (@ 75°F) R-Value, 16 Sq. Ft. Coverage Area, Snap-In (Tube Channels), Expanded Polystyrene
Benchmark Foam Thermo-Snap Insulated Panel, 4' x 4' Panel Size, 2" Thickness, 16 PSI, 8.1 (@ 75°F) R-Value, 16 Sq. Ft. Coverage Area, Snap-In (Tube Channels), Expanded Polystyrene
| Coverage Area | : | 16 sq. ft. |
| Dimensions | : | 4' x 4' x 2" |
| Material | : | Expanded Polystyrene |
| Model | : | 16 PSI THERMO-SNAP |
| Mounting Type | : | Snap-In (Tube Channels) |
| Nominal Size | : | 48" x 48" |
| Panel Size | : | 4' x 4' |
| Pressure Rating | : | 16 PSI |
| R-Value | : | 8.1 (@ 75°F) |
| Series | : | Thermo-Snap |
| Thickness | : | 2 " |

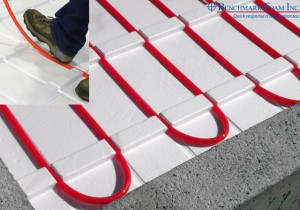

Expanded polystyrene (EPS) insulation provides excellent thermal resistance to minimize heat loss into the ground beneath heated flooring systems, reducing the "heat sink" effect and allowing for more responsive temperature control. Using sufficient insulation like these Thermo-Snap panels under the slab is key for efficient radiant floor heating performance.These patented 4' x 4' Thermo-Snapâ„¢ panels feature a built-in tube management system integrated into the EPS insulation. This design simplifies installation, reducing labor and material costs associated with measuring, spacing, and securing tubing. The channels accommodate 1/2" or 5/8" PEX tubing on 6" centers, ensuring even spacing and holding the tubes firmly in place during concrete pours.
Benchmark Foam Insulated Panel, Model: Thermo-Snap, 4' x 4' Panel Size, 2" Thickness, 16 PSI, 8.1 (@ 75°F) R-Value, 16 Sq. Ft. Coverage Area, Snap-In (Tube Channels), Expanded Polystyrene
- Patented 4' x 4' panels simplify radiant floor installations.
- Built-in tube management system accepts 1/2" or 5/8" PEX tubing on 6" centers.
- Reduces labor and material costs by minimizing staple usage and guiding placement.
- Holds PEX tubing securely in place during concrete pour, preventing displacement.
- Provides stable thermal insulation with an R-Value of 8.1 (@ 75°F).
- Features a compressive strength of 16 PSI suitable for standard residential loads.
- Easily trimmed on-site to accommodate custom shapes.
