Atco #031 Series 13102404 Insulated Flexible Duct, 4" Duct Size, 300" Length, 8 R-Value, Plain End Connection, Round, Polyester/Steel (Inner Core), Fiberglass (Insulation), Metallized Polyester/Fiberglass (Jacket), 6 In. Wc. (Positive), 1 In. Wc. (Negative) Pressure Rating
Atco #031 Series 13102404 Insulated Flexible Duct, 4" Duct Size, 300" Length, 8 R-Value, Plain End Connection, Round, Polyester/Steel (Inner Core), Fiberglass (Insulation), Metallized Polyester/Fiberglass (Jacket), 6 In. Wc. (Positive), 1 In. Wc. (Negative) Pressure Rating
| Color | : | Silver |
| Connection Type | : | Plain End |
| Diameter | : | 4 " |
| Domestic/Import | : | Domestic |
| Duct Size | : | 4 " |
| Finish | : | Reinforced Metallized Polyester |
| Flow Rate | : | 5,000 FPM |
| Length | : | 300 " |
| Material | : | Polyester/Steel (Inner Core), Fiberglass (Insulation), Metallized Polyester/Fiberglass (Jacket) |
| Pressure Rating | : | 6 in. wc. (Positive), 1 in. wc. (Negative) |
| R-Value | : | 8 |
| Series | : | #031 Series |
| Size | : | 4" Diam x 25' L |
| Temperature Rating | : | -20-140 °F (Continuous, Max Pressure) |
| Vapor Transmission | : | 0.05 perms |
| Velocity Rating | : | 5,000 FPM |
| Vent Duct Shape | : | Round |

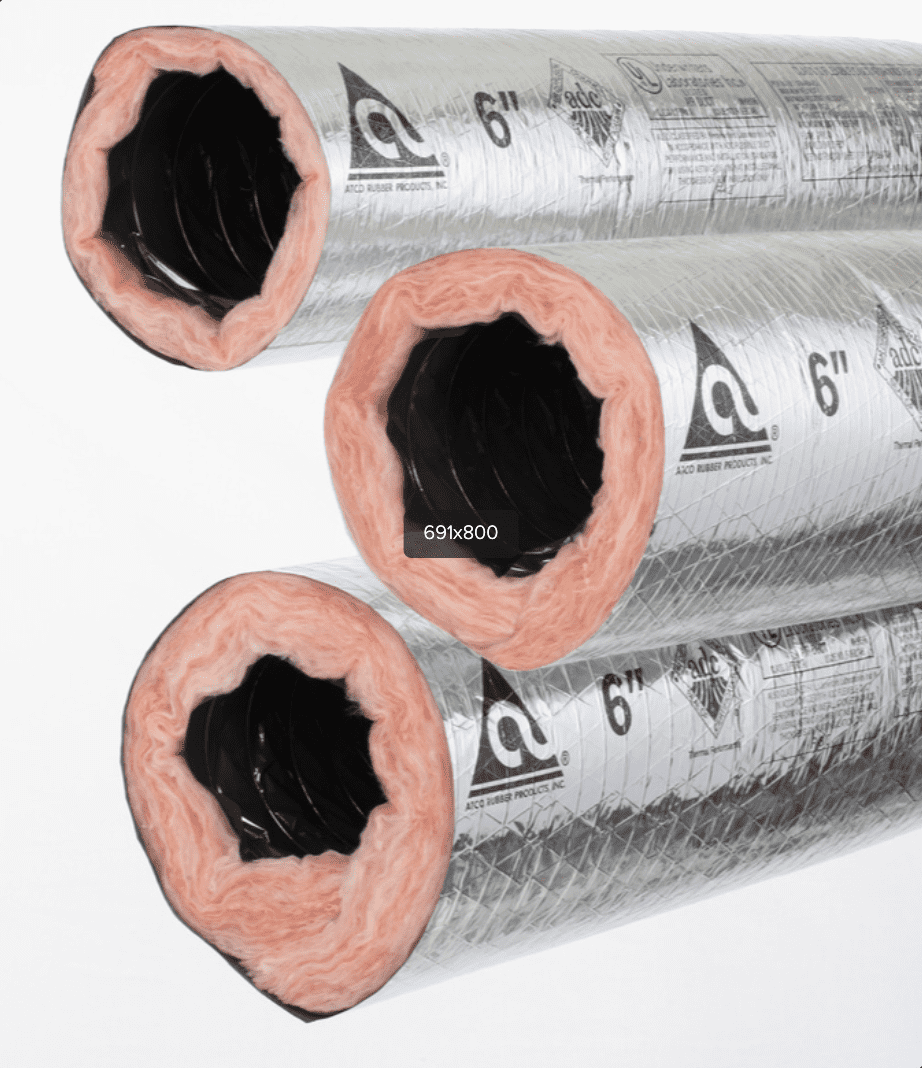

ATCO #030, #036, and #031 are UL 181, Class 1 Air Ducts and are manufactured with a tri-directional fiberglass scrim reinforced, metallized polyester outer jacket. A double lamination of tough polyester which encapsulates a steel wire helix forms the air-tight inner core of the ATCO #030, #036, and #031. The double-layer core of each product is wrapped with a thick blanket of fiberglass insulation. The inner core of all three products is air tight and designed for low-to-medium operating pressures in HVAC systems. ATCO #036 and #031 have increased insulation for superior thermal performance.
Atco Insulated Flexible Duct, Model: #031 Series, 4" Duct Size, 300" Length, 8 R-Value, Plain End Connection, Round, Polyester/Steel (Inner Core), Fiberglass (Insulation), Metallized Polyester/Fiberglass (Jacket), 6 In. Wc. (Positive), 1 In. Wc. (Negative) Pressure Rating, -20-140 °F (Continuous, Max Pressure), 5,000 FPM, 0.05 Perms Vapor Transmission, Reinforced Metallized Polyester Finish, Silver, Domestic Origin
- UL 181 Class 1 certified for safety and code compliance.
- Features an air-tight inner core made of double-laminated polyester to prevent fiberglass erosion.
- Encapsulated steel wire helix prevents unraveling when cut for easier installation.
- Wrapped in a thick R-8 fiberglass insulation blanket for superior thermal performance.
- Includes a tough, tear-resistant, reinforced metallized polyester outer jacket.
- Suitable for supply and return air use in low-to-medium pressure residential and commercial systems.
- GREENGUARD Certified for low chemical emissions.
