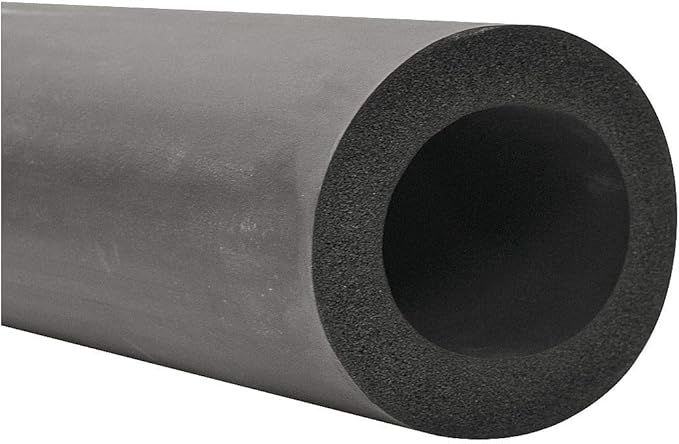

Aeroflex Aerocel AC 404-AC5834 Elastomeric Pipe Insulation, 5/8" Inside Diameter, 3/4" Wall Thickness, 72" Length, 4.1 R-Value, -297-257 °F, Unslit, Unfaced
Aeroflex Aerocel AC 404-AC5834 Elastomeric Pipe Insulation, 5/8" Inside Diameter, 3/4" Wall Thickness, 72" Length, 4.1 R-Value, -297-257 °F, Unslit, Unfaced
| Color | : | Black |
| Connection Type | : | Unslit |
| Construction | : | Closed Cell, Flexible |
| Domestic/Import | : | Domestic |
| Facing Type | : | Unfaced |
| For Pipe Size | : | 5/8" (Copper Tube) |
| For Pipe Type | : | Copper, Iron Pipe, Stainless Steel |
| Inside Diameter | : | 5/8 " |
| Length | : | 72 " |
| Material | : | EPDM |
| Model | : | 404-AC5834 |
| Nominal Size | : | 5/8 " |
| Outside Diameter | : | 2-1/8 " |
| R-Value | : | 4.1 |
| Series | : | Aerocel AC |
| Style | : | Unslit Tube |
| Temperature Rating | : | -297-257 °F |
| Thermal Conductivity | : | 0.245 BTU·in/h·ft²·°F (At 75°F) |
| Thermal Resistance | : | R-4.1 |
| Wall Thickness | : | 3/4 " |

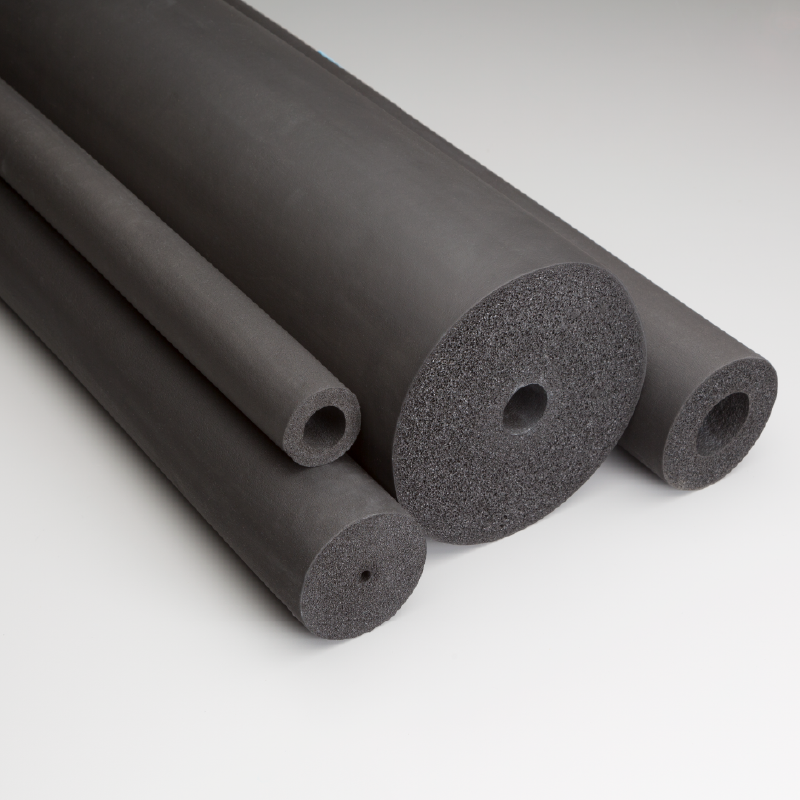

AEROCEL® Tube and Sheet Insulation is a highly flexible, closed-cell and lightweight EPDM-rubber based elastomeric product. Aerocel® Tube and Sheet Insulation is designed for insulating warm or cold piping, duct, or equipment. Aerocel® EPDM Elastomeric Tube and Sheet Insulation is supplied in 1/4", 3/8", 1/2", 3/4", 1", 1-1/4",1-1/2" 2", 2-1/2" and 3" thicknesses, in popular I.D. sizes up to 8" IPS, and as flat sheets and rolls. The tightly formed, closed-cell structure of Aerocel® Pipe and Sheet Insulation makes it an efficient insulation, providing superior insulating capacity to many materials, including other elastomeric insulations.
Aeroflex Elastomeric Pipe Insulation, Model: Aerocel AC, 5/8" Inside Diameter, 3/4" Wall Thickness, 72" Length, 4.1 R-Value, -297-257 °F, Unslit, Unfaced, EPDM, For Copper, Iron Pipe, Stainless Steel Pipe, 0.245 BTU·in/h·ft²·°F (At 75°F), Closed Cell, Flexible Construction, Unslit Tube, 2-1/8" Outside Diameter, Black, Domestic
- Constructed from flexible, closed-cell EPDM rubber for efficient thermal insulation.
- Naturally UV resistant, reducing the need for additional coatings or protection.
- Suitable for a wide service temperature range from -297°F to +300°F.
- Features low thermal conductivity (0.245 BTU·in/h·ft²·°F) to minimize energy loss.
- Rated 25/50 for flame spread and smoke developed (ASTM E84).
- Resists moisture absorption and supports system longevity.
- Versatile use across HVAC, refrigeration, plumbing, chilled water, and heating applications.
